Description
Product Information
Product Type

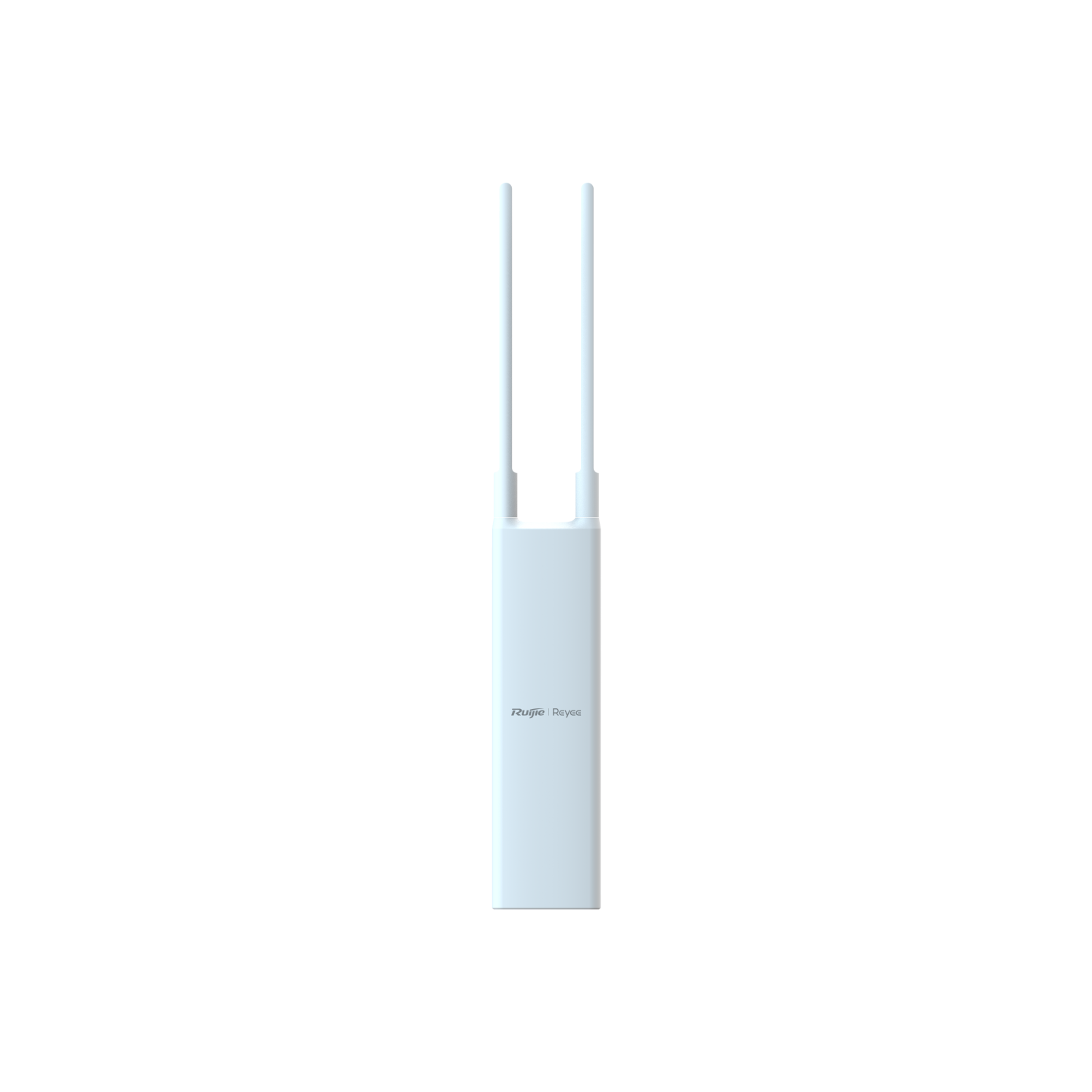

Product Type : Outdoor AP
Hardware Specifications
Wi-Fi Radio
Radio design :
Dual-radio
4 spatial streams
● 2.4 GHz: 2 x 2, MIMO
● 5 GHz: 2 x 2, MIMO
Maximum wireless data rate : 1266 Mbps
6 GHz wireless data rate : No
5 GHz wireless data rate : 866 Mbps
2.4 GHz wireless data rate : 400 Mbps
Antenna
Antenna : Integrated 2.4 GHz and 5 GHz: 2 external omnidirectional antennas
Dimensions and Weight
Product dimensions (W x D x H) : 50 mm x 35.7 mm x 220 mm (1.97 in. x 1.41 in. x 8.66 in.) (excluding the mounting bracket and antenna)
antenna size: 185 mm (7.28 in.)
Color : White
Weight : ≤ 0.4 kg (0.88 lbs.) (without packaging materials)
Port Specifications
Number of 10/100/1000BASE-T ports : 1
Power Supply and Consumption
Power supply : PoE/PoE+
Local power supply : No
Dimensions of the DC connector : No
PoE budget : No
Maximum power consumption : 13.5 W
Environment and Reliability
Operating temperature : –30°C to +65°C (–22°F to +149°F)
Mounting options : Wall/Pole
IP rating : IP65
Software Specifications
WLAN
Maximum number of associated wireless clients :
64 (2.4 GHz)
110 (5 GHz)
110 (2.4 GHz and 5 GHz enabled)
Maximum number of devices that can be managed : 300
IP Service
IPv6 : No
