Description

Product Features

»ALL-IN-ONE

Integrates a 4K Ultra HD camera, beamforming microphone and fullrange speaker into a three-in-one design for easy setup of video conferences.

»4K UHD

Utilizes a 1/2.5-inch, 8.51-megapixel UHD CMOS sensor, delivering 4K@30fps UHD resolution images. It is also backward compatible with various resolutions, including 1080p and 720p.

»121° WIDE FOV

With a wide-angle lens of 121° and 5x zoom, combined with ±15° horizontal and vertical rotation through the pan-tilt mechanism, it can capture a larger number of participants in a single frame.

»AI-POWERED INTELLIGENT CAMERA TECHNOLOGY

Built-in AI algorithms for face and human shape recognition automatically adjust the lens to frame participants as they move. The sound source positioning algorithm locks onto the speaker,
focusing on them without manual intervention.

»SMART GALLERY

Featuring AI algorithms for heads, faces, and human shapes, it can automatically switch to multi-split screen layouts based on the number of participants, extracting and evenly arranging close- ups of eachparticipant. This allows remote attendees to clearly see everyone, making the communication in meetings more vivid and natural.

»CLEAR AUDIO PICKUP UP TO 6M

Built-in low-distortion beamforming algorithm and Audio 3A algorithm, ensure clear and full audio pickup within a range of 6 meters, regardless of distance.

»SUPPORTS POE CASCADING FOR AUDIO PICKUP

Supports cascading of up to 2 RM702 array microphones. Power and audio signal transmission to the microphones are achieved through the POE network port (RJ45). This setup ensures even
coverage in larger conference room scenarios, delivering equal and consistent audio pickup for every participant.

»FULL-RANGE SPEAKER

The device features a full-range speaker that undergoes professional tuning, effectively reducing sound interference and delivering a clear and natural sound.

»VARIOUS INSTALLATION OPTIONS

Supports multiple installation methods, including tabletop placement, wall mounting, and TV/display screen mounting. Allow the users to choose installation methods based on their needs

Technical Specifications

»Camera

• Video Resolution: 4K@30fps, 1080P@30fps, 720P@30fps, etc.
• Sensor: 1/2.5”, CMOS, 8.51 Megapixels
• Optical Lens: 121°(DFOV), 110°(HFOV), 5x digital zoom, Level/pitch ±15°
• PTZ: Mechanical PTZ, Electronic PTZ
• Backlight Compensation: Support
• Digital Noise Reduction: 2D&3D Digital Noise Reduction
• Video S/N: ≥ 55dB

»Audio

• Full Range Speaker: 96 dB SPL at 0.5m
• Mic-array: Beamforming mic, Pickup distance 6m
• Expand Mic: Support 1

»I/O Interfaces

• HDMI Output: 1 x HDMI 1.4b
• Network Interface: 1 x RJ45: 10M/100M Adaptive Ethernet 1, support PSE
• Audio Interface: 1 x RJ45: D-MIC, Support Microphone Cascading
• USB Interface:
  • 1 x USB3.0, Type C,
  • 1 x USB2.0, Type A
• Wireless: Bluetooth 5.0

»General

• Power: DC 12V, 2A (Max)
• Operating Temperature: 0°C ~ 40°C
• Storage Temperature: -40°C ~ 60°C
• Dimension (W × D × H): 600 × 117 × 135mm
• Weight: 2.5kg

»USB

• Operating System:
  • Windows® 7 (only 1080P and below support),
  • Windows 8.1, Windows 10 or higher
  • macOS™ 10.10 Or higher
  • Linux (Support UVC), Android
• Hardware Requirements:
  • 2.4 GHz Intel® Core 2 Duo processor or higher
  • 2 GB memory or higher
  • USB 2.0
• Color System / Compression: MJPEG / YUY2
• USB Video Communication Protocol: UVC 1.1

»Other

• Installation Mode: Supports various installation methods such as desktop placement, wall mounting, and TV mounting
• Standard Cable: USB 3.0 cable
• Safety Protection Measures: Anti-theft lock socket design

What’s In The Box

• ›1 x RC10
• ›1 x USB Cable
• ›1 x Power Adapter
• ›1 x Power Cable

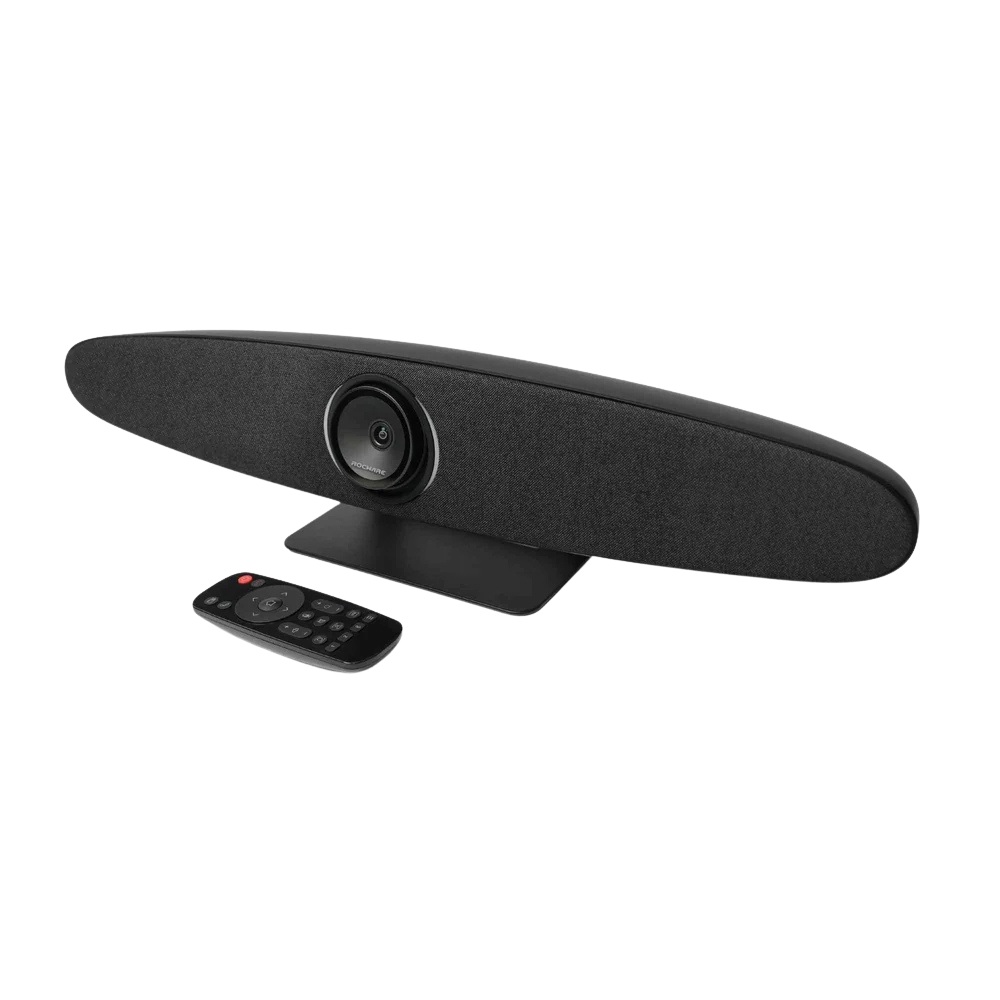

• ›1 x Remote Control
• ›1 x Quick Start Guide
• ›1 x Wall Bracket and Screws
