Description
Product Features
»1080P FULL HD
Equipped with a high-quality HD CMOS sensor with 2.07 Megapixels, it provides a maximum resolution of 1920×1080, delivering Full HD image quality.
»10X OPTICAL ZOOM
The lens supports 10x optical zoom with a focal length of f=4.7mm ~ 46.3mm, presenting clear close-up views of the meeting room.
»SILENT MECHANICAL PTZ
Built-in self-developed motorized pan-tilt, the camera can rotate horizontally up to ±170° with a rotation speed of 2.7° ~ 47° /s and vertically from -30° to 90° with a rotation speed of 2.7° ~ 30° /s.
»SUPPORTS H.264 SLICE/ H.264 SVC ENCODING
It supports H.264 Slice and SVC encoding modes for outputting H.264 stream, which is suitable for high-end USB conference video applications.
»DUAL-STREAM
It supports dual-stream output (YUY2, MJPEG, H.264) at the same time, reducing the encoding and decoding pressure on the host.
»REMOTE CONTROL
The camera supports RS232 serial port for remote control.
»FLEXIBLE INSTALLATION
It supports horizontal and vertical flipping and can be installed in different ways, such as normal mounting, suspension, or ceiling mounting, depending on the actual needs of the meeting room.
Technical Specifications
»CAMERA
- Video Resolution: 1080P, 720P, 540P, 480P, 360P, 240P
- Sensor: 1/2.8”, CMOS, 2.07 Megapixels
- Scanning Mode: Progressive
- Lens: 10x, f4.7mm ~ 46.3mm, F2.8
- Digital Zoom: 16x
- Minimal Illumination: 0.5Lux @ (F2.8, AGC ON)
- Shutter: 1/30s ~ 1/10000s
- White Balance: Auto, Indoor, Outdoor, One Push, Manual, Adjustable color temperature
- Backlight Compensation: Support
- Digital Noise Reduction: 2D&3D Digital Noise Reduction
- Video S/N: ≥55dB
- Horizontal Angle of View: 58.5° ~ 6.5°
- Vertical Angle of View: 35.1° ~ 3.6°
- Horizontal Rotation Range: ±170°
- Vertical Rotation Range: -30° ~ +90°
- Pan Speed Range: 2.7° ~ 47°/s
- Tilt Speed Range: 2.7° ~ 30°/s
- H & V Flip: Support
- Number of Preset: 255
- Preset Accuracy: 0.1°

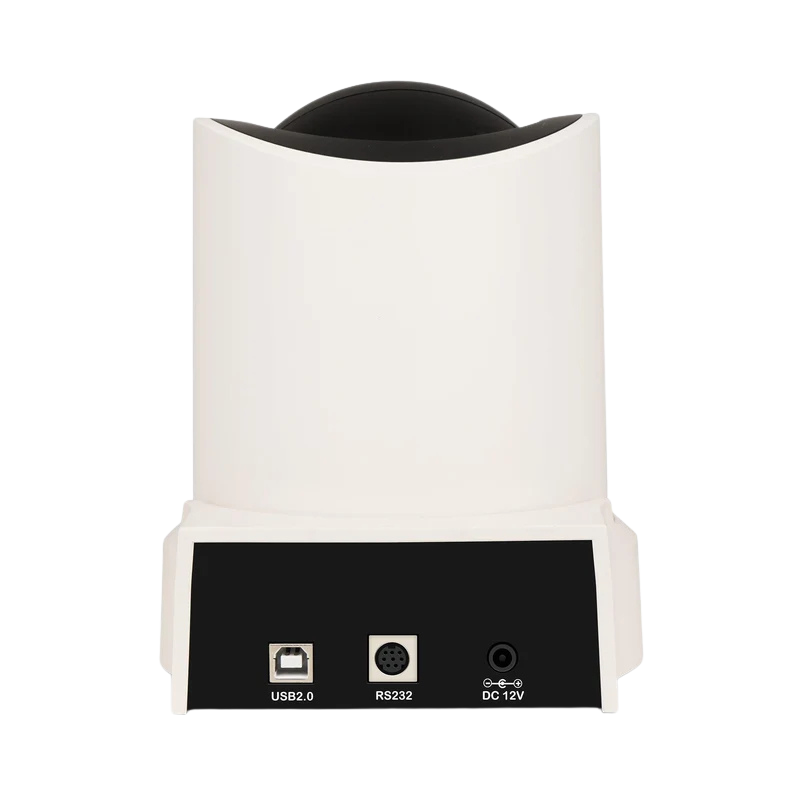

»I/O INTERFACES
- USB: 1 x USB 2.0, Type-B Jack
- Communication Interface: 1 x RS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P
- Power Jack: JEITA Type (DC IN 12V)
»GENERAL SPECIFICATION
- Input Voltage: DC 12V
- Input Current: 1A (Max)
- Operating Temperature: 0°C ~ 40°C
- Storage Temperature: -40°C ~ 60°C
- Power Consumption: 12W (Max)
- MTBF: >30000H
- Dimension (W × D × H): 141.5 × 151.1 × 170.2mm
- Weight: 1.153kg
»USB FEATURES
- Operating System: Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android
- Color System / Compression: YUY2 / H.264 / MJPEG
- Video Format:
- H.264 AVC: Max 1080P30;
- H.264 SVC: Max 1080P30;
- MJPEG: Max 1080P30
- USB Video Communication Protocol: UVC 1.1
- UVC PTZ Control: Support
