»USB PLUG-AND-PLAY

With just a single USB cable, it enables audio and video transmission as well as camera power supply, offering a hassle-free deployment experience.

»1080P + 3X OPTICAL ZOOM

Using a new generation HD CMOS sensor, it delivers a Full HD 1080P video experience, combined with 3X optical zoom, ensuring clear images for both panoramic and close-up shots.

»WIDE FIELD OF VIEW

It features a 90° ultra-wide-angle lens that supports ±170° horizontal and -30° to +90° vertical rotation, capturing the entire meeting space without blind spots.

»3M PICKUP DISTANCE

It has two built-in microphones with a pickup distance of up to 3m, eliminating the need for additional audio pickup devices and enabling simultaneous audio and video recording.

»TOF FAST AUTOFOCUS

Equipped with Time-of-Flight (TOF) laser focusing technology, it achieves rapid autofocus, keeping the subject in focus at all times, ensuring clear and stable image quality.

»PRESENTER TRACKING WITH AI TECHNOLOGY

Built-in video AI algorithms can recognize the positions of meeting participants and automatically adjust the camera’s field of view to capture the best composition. In single-person shooting mode, the camera automatically tracks and focuses on the moving target.

»VERSATILE INSTALLATION

It supports both desktop installation and tripod installation, meeting the diverse installation needs of meetings and live streaming scenarios.

Technical Specifications

»CAMERA

• Sensor: 1/2.9”, CMOS, 2.07 Megapixels
• Scanning Mode: Progressive
• Lens: 3x, f3.41mm ~ 10.33mm, F1.66 ~ F3.03
• Digital Zoom: 16x
• Minimal Illumination: 0.5Lux @ (F1.8, AGC ON)
• Shutter: 1/30s ~ 1/10000s
• White Balance: Auto, Indoor, Outdoor, One Push, Manual, Adjustable color temperature
• Backlight Compensation: Support
• Digital Noise Reduction: 2D&3D Digital Noise Reduction
• Video S/N: ≥55dB
• Horizontal Angle of View: 90° ~ 30.7°
• Vertical Angle of View: 52° ~ 18.4°
• Horizontal Rotation Range: ±170°
• Vertical Rotation Range: -30° ~ +90°
• Pan Speed Range: 2.7° ~ 35.7°/s
• Tilt Speed Range: 2.7° ~ 31.5°/s
• H & V Flip: Support
• Image Freeze: Support
• Number of Preset: 255
• Preset Accuracy: 0.1°

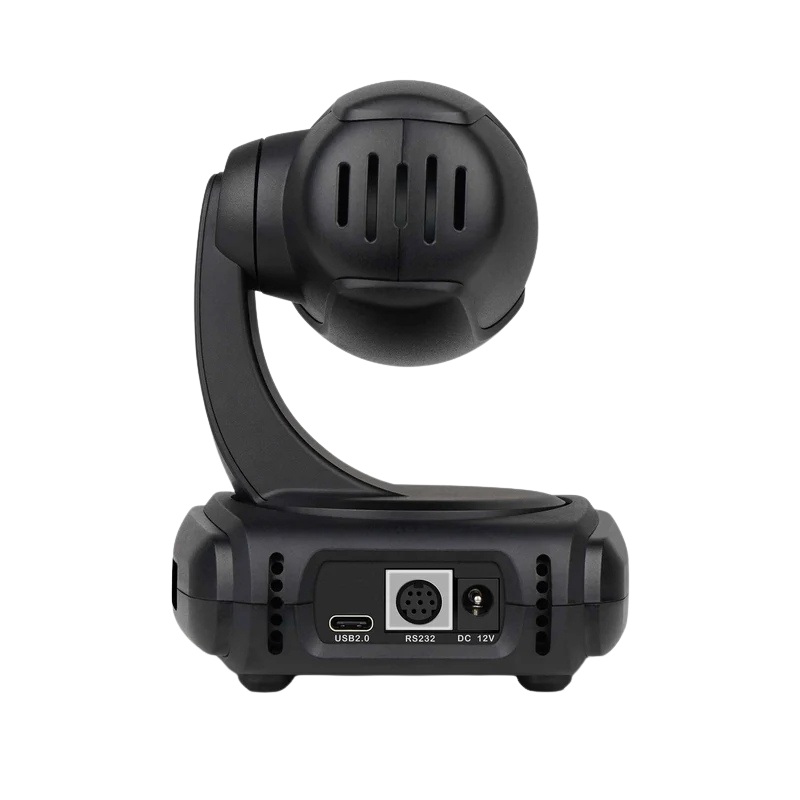

»I/O INTERFACES

• USB: 1 x USB 2.0, Type-C Jack
• Audio Input: Built-in dual mic
• Communication Interface: 1 x RS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P
• Power Jack: JEITA (DC IN 12V) / USB Type-C (USB 5V)

»GENERAL SPECIFICATION

• Input Voltage: DC 12V / USB 5V
• Input Current: 12V 1.0A (max.)/ 5V 1.5A (max.)
• Operating Temperature: 0°C ~ 40°C
• Storage Temperature: -40°C ~ 60°C
• Power Consumption: 12W(Max)
• MTBF: >30000H
• Dimension (W × D × H): 107.9 × 114.3 × 136.5mm
• Weight: 0.5kg

»USB FEATURES

• Operating System: Windows 8, Windows 10, Windows 11, Mac OS X, Linux, Android
• Color System / Compression: YUY2 / MJPEG
• Video Format:
  • YUY2 (Isochronous): Max 640x480P30
  • MJPEG: Max 1920x1080P30
• USB Audio: Optional
• USB Video Communication Protocol: UVC 1.1
• UVC PTZ Control: Support

 What’s In The Box

• ›1 x RC310
• ›1 x Remote Control
• ›1 x USB Cable
