»Professional PTZ Powerful Performance

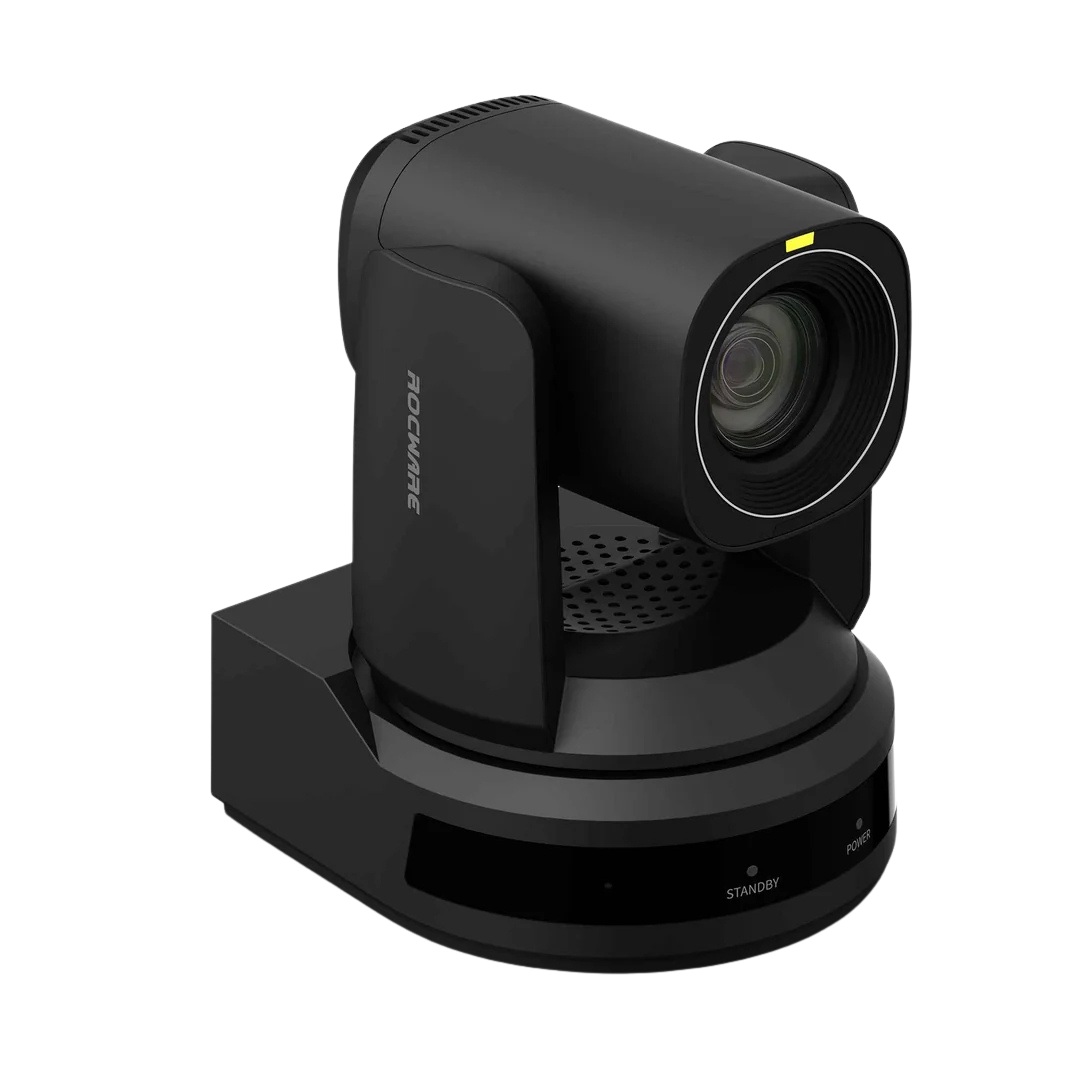

RC823 combines Full HD imaging, intelligent AI presenter tracking, 30× optical zoom, and versatile multi-channel output to deliver reliable, professional video capture for demanding collaboration and production environments.

»Optical Zoom, HD Lens

With a 60.7° horizontal field of view and powerful 30× optical zoom, RC823 gives you the flexibility to capture the full scene or bring distant presenters and details into clear focus.

»Advanced AI Technologies

AI-enhanced capabilities include Presenter Tracking, Auto Framing and Zone Tracking. Adapting to various usage environments, these AI functions realize intelligent framing and target tracking to achieve high-efficiency video capture.

»ISP Image Processing Algorithm

Equipped with new-generation ISP image processing algorithms to optimize white balance and auto exposure performance, greatly boosting output image quality with superior visual effects. Widely applicable to video conferencing, education recording, remote teaching, live streaming and broadcasting industries.

»Multi-Output, Low Latency

Features low-latency video output across all ports and support simultaneous 4-channel output at 1080p@60fps per channel. It ensures stable frame synchronization for multi-device display to meet real-time demands of conferences and recording.

»Dual NDI Protocol Support

Optional expansion supports Full NDI* & NDI®|HX3* protocols. Full NDI delivers lossless, low-latency transmission for professional production, while NDI®|HX3 consumes less bandwidth for smooth streaming via standard Gigabit networks

Technical Specifications

»Camera

• Sensor: 1/2.8-inch, CMOS, Effective Pixels: 2.07 MP
• Lens: 30x, f=4.42mm ~ 132.6mm, F1.8 ~ F2.8
• Digital Zoom: 8x
• HFOV: 60.7° ~ 2.28°
• VFOV: 34.1° ~ 1.28°
• Signal Format:
  • HDMI: 1080p60/59.94/50/30/29.97/25fps,
  • 3G-SDI: 1080i60/59.94/50fps
• Scanning Mode: Progressive
• Minimum Illumination: 0.5Lux @ (F1.8, AGC ON)
• Shutter: 1/30s ~ 1/10000s
• White Balance: Auto, Manual, Indoor, Outdoor, One-push, VAR
• Backlight Compensation: Supported
• Digital Noise Reduction: 2D&3D Digital Noise Reduction
• SNR: ≥55dB

»PTZ

• Pan Angle Range: ±170°
• Tilt Angle Range: -30° ~ +90°
• Pan Speed Range: 1.7° ~ 100°/s
• Tilt Speed Range: 1.7° ~ 69.9°/s
• Image Flip & Freeze: Supported
• Number of Preset: 255
• Preset Accuracy: 0.1°
