Description

Product Features

»7-inch HD Touchscreen, 4-Split Real-Time

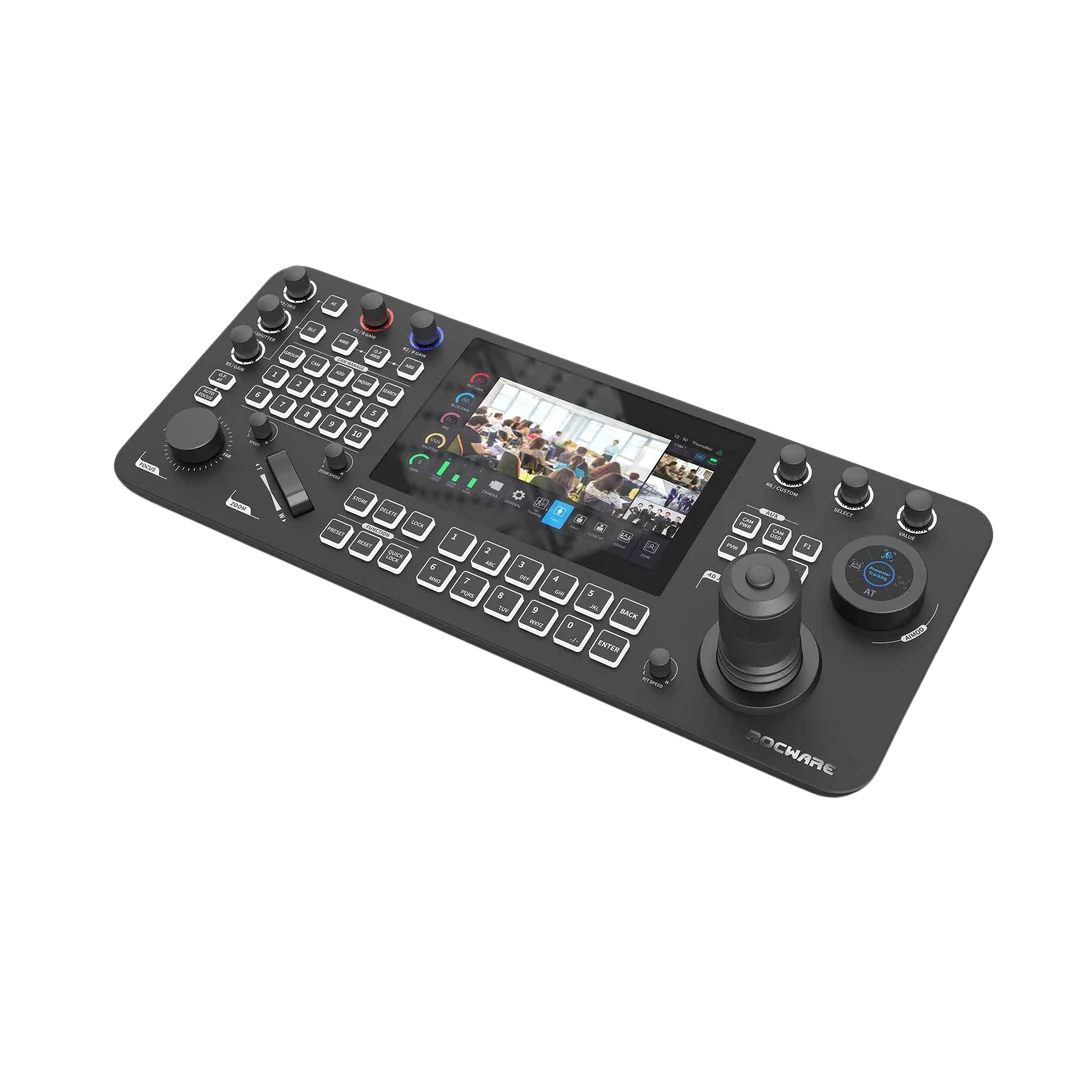

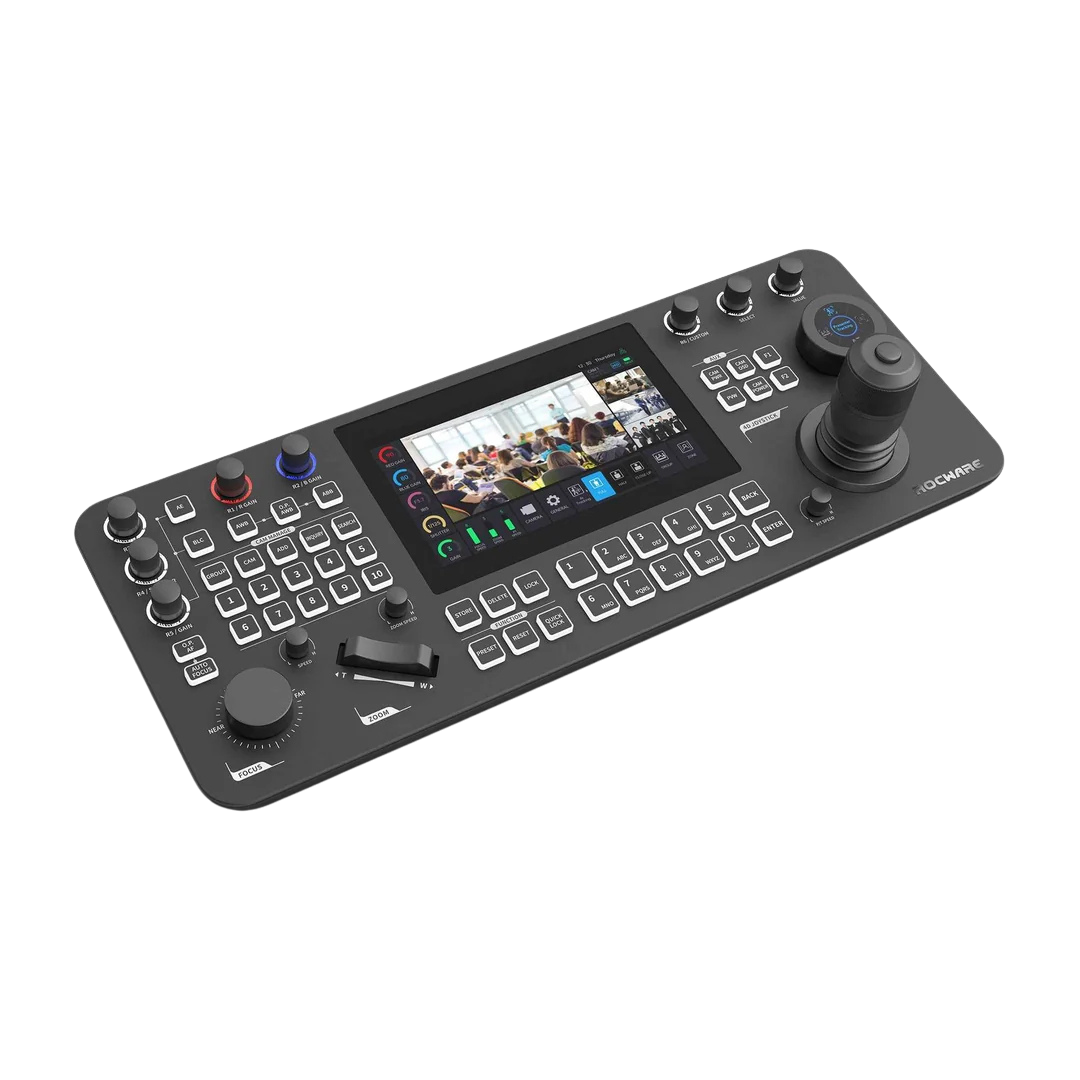

Boasting a 7-inch HD touchscreen, the RK70 simultaneously displays 1 main view and 3 sub-views. It streamlines multi-camera coordination to capture every critical frame, delivering intuitive visual control for live broadcast, corporate conferences and large-scale events.

»4D Joystick, Multi-Camera Centralized Management

RK70, equipped with a precise 4D joystick, is capable of managing up to 254 cameras simultaneously, with group and category storage management. It enables unified scheduling and collaborative operation across multiple scenes, saving setup time and labor costs.

»AI Visual Control Knob, One-Tap Intelligent Operation

RK70 comes with an innovative visualized AI control knob. Free from complicated menu navigation, users can instantly trigger AI functions. Its straightforward interface delivers efficient operation, friendly enough for new operators.

»Motion Path Recording, Accurate Playback

RK70 features built-in motion path recording and playback to save intricate camera movements for one-click replay. It minimizes repeated configuration work, standardizes operation procedures and optimizes overall workflow efficiency.

»Tally Protocol Support*

RK70 supports standard Tally protocol*: receives PGM/PVW signals from production switchers, relays PGM to connected PTZ cameras. Touchscreen Tally indicator shows real-time live/preview status to prevent unexpected broadcast faults.

»Multi-Protocol Compatibility

RK70 supports mainstream control protocols including optional NDI® *, VISCA over IP, ONVIF, VISCA, Pelco-D, Pelco-P. It works seamlessly with most PTZ cameras available on the market and enables efficient cross-platform system integration.

»Comprehensive Interfaces, PoE+ Power Supply

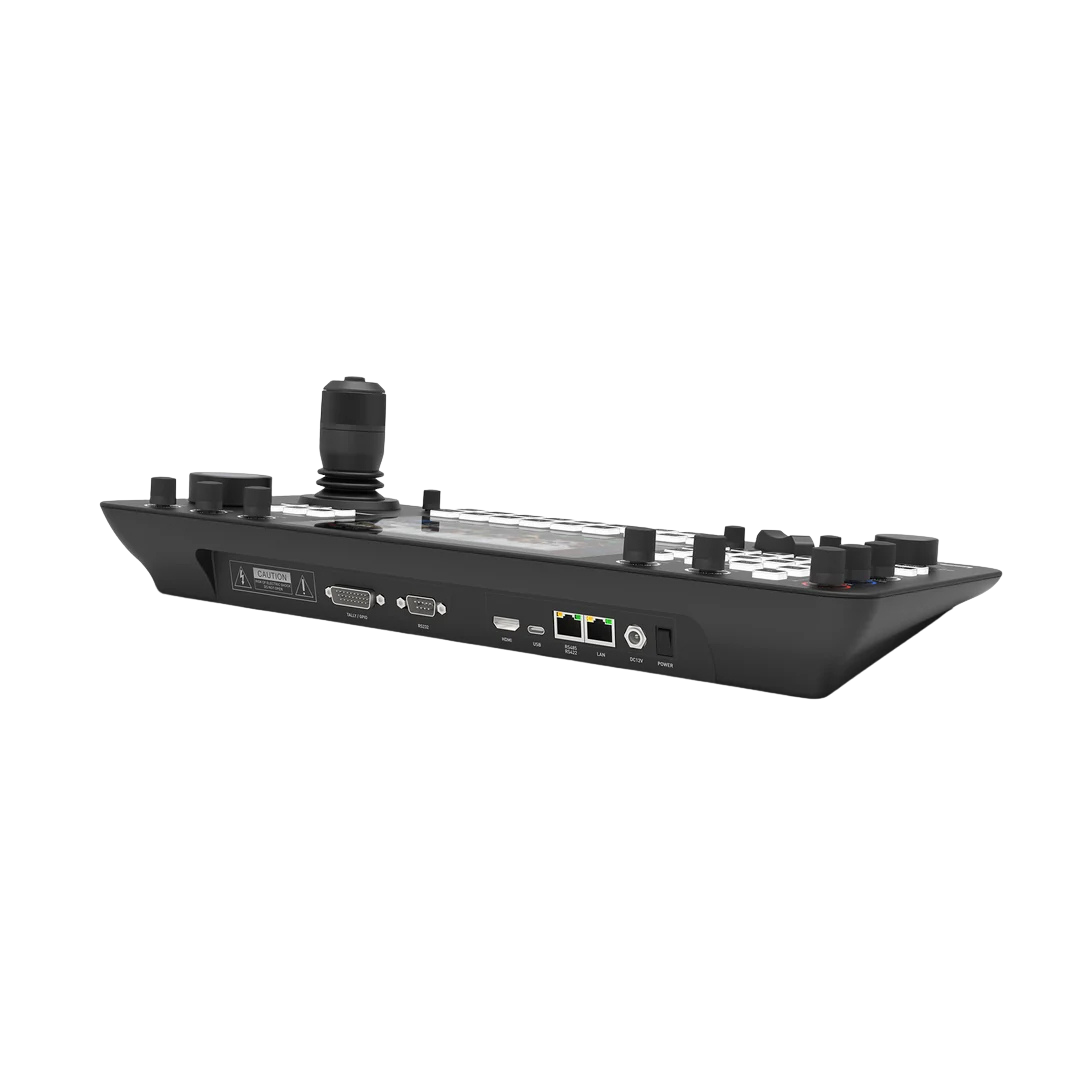

RK70 comes with abundant ports including LAN, RS422/485, USB-C, HDMI 2.0, RS232 and Tally/GPIO interfaces. It easily connects to switchers, recorders, monitors and other peripheral devices, supporting full-process signal transmission, data exchange and status feedback. PoE+ power supply further simplifies on-site deployment.

Specifications

»HUMAN-MACHINE INTERFACE

• Display: 7-inch touchscreen, 1024×600 resolution
• AI Control Knob: Quick access to AI functions with visual feedback
• Control Knobs: Quick control of iris, shutter, gain, AE, and WB
• 4D Joystick: Pan / Tilt / Zoom / Confirm
• Camera Groups: 16 groups (16 per group)
• Maximum Supported Cameras: Up to 254 cameras
• Number of Preset: Up to 255 presets

»INPUT/OUTPUT INTERFACE

• Video Interface: 1 × HDMI 2.0 OUT
• Network Interface: 1 x RJ45: 10/100/1000 Mbps adaptive Ethernet, IEEE 802.3at PoE+ supported
• USB Interface: 1 × USB 3.1 Type-C
• Control Interface: 1 × RS422 / RS485, 1 × RS232
• Tally/GPIO Interface: 1 × DB26

»COMMUNICATION PROTOCOLS

• IP Protocols: NDI® *, VISCA over IP, ONVIF
• Serial Protocols: VISCA, Pelco-D, Pelco-P
• Baud Rate: 2400~38400 bps

»GENERAL

• Power Supply: DC 12 V / 2 A (±10%) / PoE+ (IEEE 802.3at)
• Power Consumption: <15W
• Operating Temperature: -10°C ~ 50°C / 14°F ~ 122°F
• Storage Temperature: -40°C ~ 60°C / -40°F ~ 140°F

WHAT’S IN THE BOX

• ›1 x RK70
• ›1 x 12V Power Adapter
• ›1 x User Manual
