Description

Product Features

»ANDROID TOUCHSCREEN DISPLAY

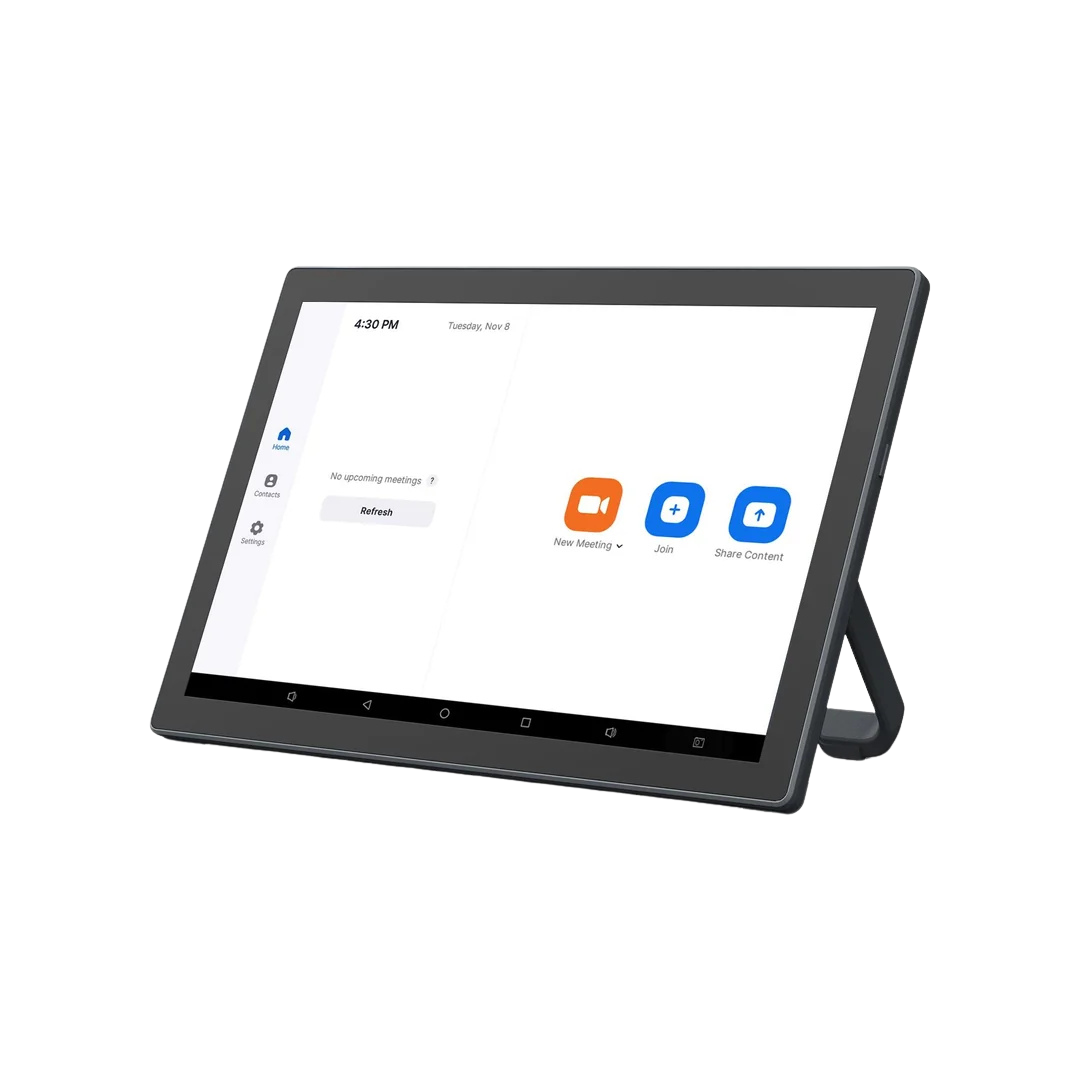

Equipped with an Android 9.0 system and a 10.1-inch capacitive touchscreen, the RT10 provides a comfortable and user-friendly operating experience.

»ONE-TOUCH MEETING CONTROL

Pre-installed with popular international conference software such as Zoom, VooV Meeting, Lark Meeting etc, the RT10 allows for one-touch control of video conferences.

»FLEXIBLE POWER SUPPLY AND NETWORKING OPTIONS

Two kinds of power supply modes: USB and PoE. The RT10 can connect video conferecing system through wired network or Wi-Fi.

»ADJUSTABLE STAND ANGLE

The RT10 comes with a built-in stand that offers multiple angle adjustments, ensuring clear visibility of the screen from different sitting positions.

Technical Specifications

»HARDWARE PLATFORM

• Operating System: Android 9.0
• CPU: Amlogic A311d, 4xCortex-A73+2xCoretex-A53
• GPU: ARM G52 MP4(6EE),OpenGL ES 3.2, Vulkan 1.1 , OpenCL 2.0
• Storage: 4G RAM+16GB ROM
• Codec:
  • Encoder:
    • H.264/H.265 1 x 1080P@60fps
  • Decoder:
    • VP9 Profile-2 up to 4Kx2K@60fps
    • H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps
    • AVS2-P2 Profile up to 4Kx2K@60fps
    • H.264 AVC HP@L5.1 up to 4Kx2K@30fps
    • H.264 MVC up to 1080P@60fps
• Wi-Fi: IEEE802.11a/b/g/n/ac,WPA,WPA2
• Bluetooth: BT 5.0

»INTERFACES

• USB Interface:
  • 1 x USB2.0 Type-C (device)
  • 1 x USB 2.0 Type-A
• Network Interface:
  • 1 x RJ45: 10/100/1000 Base-T
  • 1 x 2.4G/5G Wi-Fi5

»VIDEO SPECIFICATIONS AND FEATURES

• Touch Screen:
  • 10.1-inch IPS touch screen, Multi-Touch
  • Resolution: 1920×1200 (1280×800 optional)
  • Visual Angle: 170 degrees
  • Brightness: 300cd/㎡(typ)

»PHYSICAL CHARACTERISTICS

• Dimensions: 243mm (W) × 164mm (D) × 33mm (H)
• Wi-Fi Frequency: 2.4G&5G Dual frequency
• Micphone: Pickup range of 2 meters
• Speaker: 1 × 1.5W
• Environmental Specification:
  • Operating temperature: 0°C to 40ºC
  • Operating humidity: 10% to 80%
  • Non-Operating temperature: -40º to -70ºC
  • Non-Operating humidity (non-condensing): 0% to 95%
• Approval and Compliance: CQC RoHS

WHAT’S IN THE BOX

• ›1 x RT10
• ›1 x Power Adapter
• ›1 x User Manual
