P5 Control Panel is a versatile and elegant user interface designed to remotely control S-TRACK audio processors via a local area network. Featuring a 5-inch all-metal shell with a capacitive touch screen, it supports scene control, volume adjustment, playback control, and richer customization settings. It can be seamlessly embedded in the wall or placed on a desktop. Powered by either a standard IEEE 802.3af/at PoE switch or a 12V DC adapter with hot backup capability, it offers a reliable, distance-unlimited network control solution for modern AV environments.

KEY FEATURES

• Advanced Processing Core: Built-in CORTEX-M3 core combined with a high-speed FPGA for fast, responsive, and reliable operation
• 5-Inch Capacitive Touch Screen: Features a high-resolution 800×480px TFT LCD display with 64K colors (16-bit RGB) and 300cd/㎡ brightness for clear visual feedback and intuitive operation
• Comprehensive Control Functions: Supports fast scene switching, volume adjustment, playback control, and extensive customization settings to meet specific application needs
• Flexible Power Supply & Hot Backup: Supports both IEEE 802.3af/at standard PoE power supply and DC 12V adapter power supply, ensuring continuous operation with hot backup capability
• Standard TCP/IP Network Transmission: Connects to the audio processor via a local area network using standard TCP/IP protocol, eliminating distance limitations and the need for PC-based panel setup
• Flexible Installation Options: Designed for both desktop placement and wall mounting, allowing seamless integration into various room layouts and environments

SPECIFICATIONS

• Touch Screen Size: 5-inch TFT LCD (Effective display size: 108mm × 65mm)
• Resolution & Color: 800×480px | 64K colors (16-bit RGB)
• Touch Type: Capacitive
• Brightness: 300 cd/㎡ | Backlight: LED (Average life >30,000 hours)

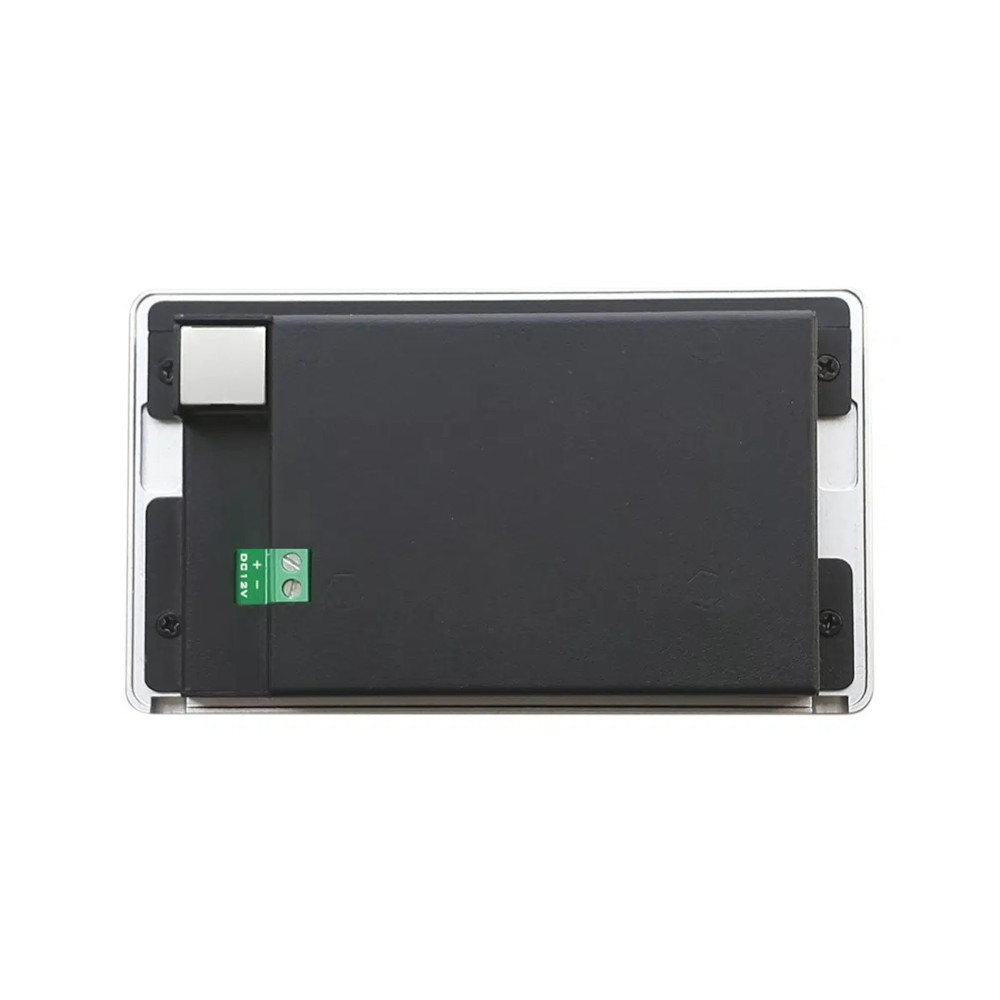

• Communication Interface: 1x RJ45
• Communication Protocol: TCP/IP
• Power Supply: IEEE 802.3af / 802.3at PoE or DC 12V, 2A (Input voltage: 5V – 15V)
• Power Consumption: 170mA @ 5V (Backlight on) | 71mA @ 5V (Backlight off)
• Display Performance: Full-screen update: 19ms | Single color clear: 2.5ms | Text display: 0.35ms
• Operating Environment: 0°C to 40°C (32°F to 104°F) | 10% to 90% relative humidity (non-condensing)
• Dimensions (L×W×H): 146mm × 86mm × 27mm
• Net Weight: 0.13kg

WHAT’S IN THE BOX

• 1x P5 Control Panel Unit
• 1x Quick Start Guide
• 1x Warranty Card
