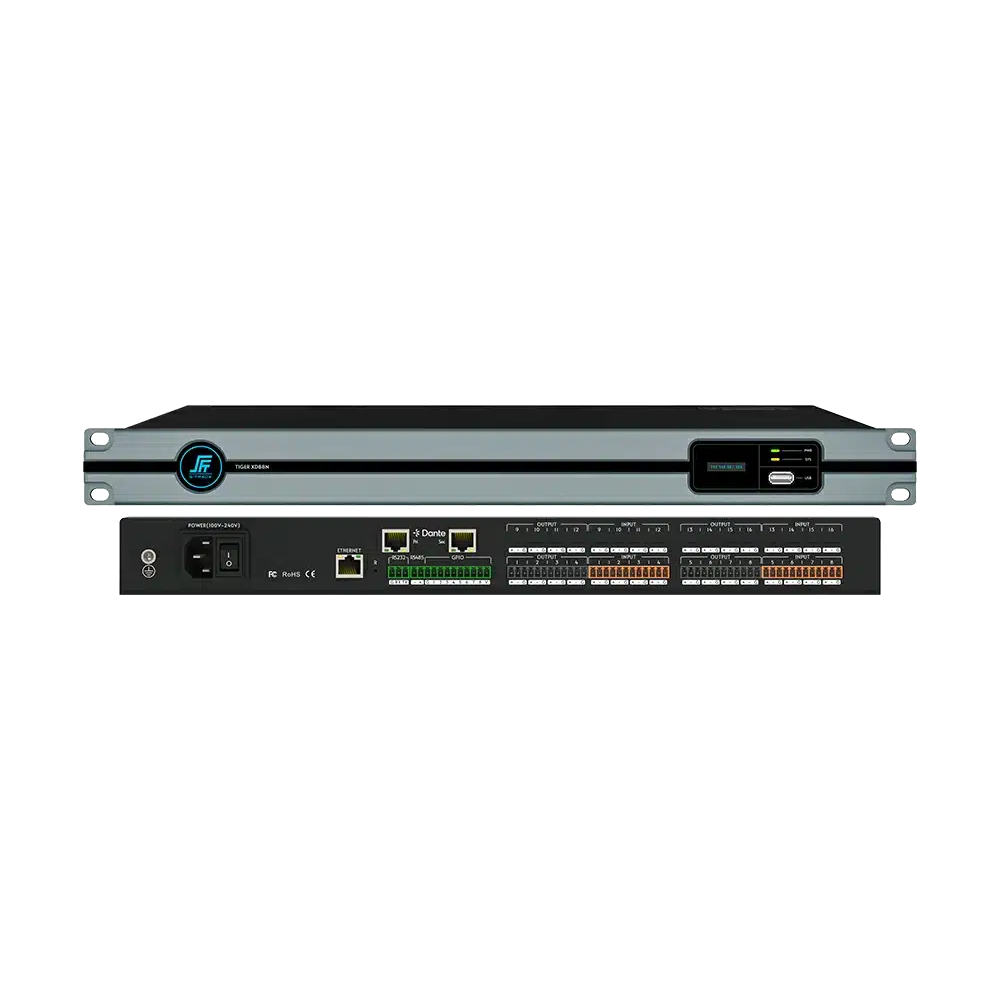

TIGER XD Series Digital Signal Processor is a high-performance audio processing solution by S-TRACK, available in 4×4, 8×8, 12×12, and 16×16 analog configurations, with optional Dante network editions. Equipped with a TI 456MHz dual-core 32-bit floating-point DSP processor and 24-bit A/D D/A converters operating at a 48kHz sampling rate, it features a high-quality 17-stage preamplifier circuit for exceptional audio clarity. With built-in Acoustic Feedback Canceler (AFC), Acoustic Echo Canceler (AEC), Adaptive Noise Suppressor (ANS), and Automatic Mixer algorithms, the TIGER XD Series provides comprehensive matrix mixing and advanced audio management in a reliable 1U rackmount chassis, ideal for theaters, stadiums, churches, conference centers, and public sound reinforcement systems.

KEY FEATURES

• High-Performance DSP Processing: Built-in TI 456MHz FLOPS dual-core 32-bit DSP processor with 24-bit A/D and D/A converters, supporting 48kHz sampling rate and a high-quality 17-stage preamplifier circuit for pristine audio quality
• Comprehensive Matrix Mixing: Flexible 4/8/12/16 analog input/output configurations with optional 0/8/16 Dante network support for large-scale, multi-zone digital audio distribution
• Advanced Audio Algorithms: Includes AFC (up to 16 feedback points with 24dB suppression depth), AEC, ANS, automatic mixing console, compressor, expander, AGC, and ducker functions
• Flexible Input/Output Processing: Input channels feature 51dB preamplifier, signal generator, expander, 5/8/12-band PEQ, 10/15/31-band GEQ, compressor, AGC, AM, ducker, AFC, AEC, and ANS. Output channels include delay, crossover, EQ, and limiter
• Multi-Platform Control & Camera Tracking: Built-in web controller for fast operation on Windows, macOS, Linux, Android, and iOS; includes camera tracking compatible with VISCA, PELCO-D, and PELCO-P protocols
• Extensive Connectivity & Presets: Features RS232, RS485, Ethernet, and 8-channel programmable GPIO interfaces; supports up to 100 scene presets and an extendable USB interface for U-disk recording/playback or USB Audio Class (Note: 16-channel Dante edition does not support USB functionality)

SPECIFICATIONS

• Processor: TI 456MHz FLOPS dual-core 32-bit DSP processor; 24-bit A/D and D/A converter, 48kHz sampling rate
• Input Interfaces: 4/8/12/16 Analog + 0/8/16 Dante (Balanced Phoenix terminals)
• Output Interfaces: 4/8/12/16 Analog + 0/8/16 Dante (Balanced Phoenix terminals)
• Control Interfaces: 1x RJ45 (Ethernet), 1x RS232, 1x RS485, 8x GPIO (programmable)
• Phantom Power: DC 48V
• Frequency Response: 20Hz – 20kHz, ±0.2dB
• Dynamic Range: 114dB (Analog/Digital) | 120dB (Digital/Analog)
• Signal to Noise Ratio: 106dB | Noise Floor: -90dBu
• THD+N: ≤0.003% @ 1kHz, +4dBu
• Maximum I/O Level: +18dBu
• Operating Voltage: AC 100V – 240V, 50Hz/60Hz
• Power Consumption: 30W Maximum
• Operating Environment: 0°C to +40°C (32°F to 104°F) | 10% to 90% relative humidity (non-condensing)
• Dimensions & Weight: 482.4mm × 260.5mm × 44mm (1U Chassis) | Net Weight: 3.5kg – 4.0kg

WHAT’S IN THE BOX

• 1x TIGER XD Series Digital Signal Processor Unit
• 1x Power Cable
• 1x Quick Start Guide
• 1x Warranty Card
