Description

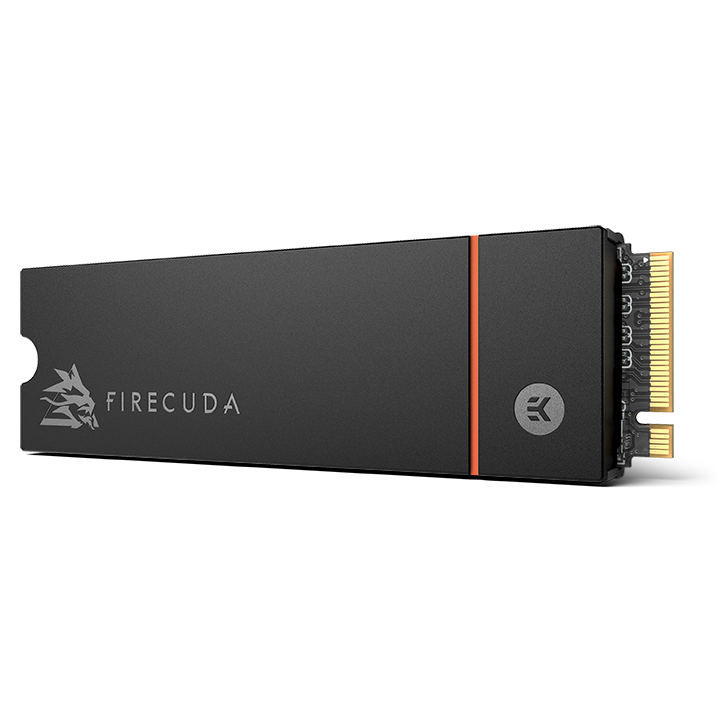

Explosive Speed. Absolute Domination. FireCuda 530 Heatsink SSD
Blistering performance and unrivaled endurance—Seagate® FireCuda® 530 redefines speed—up to 7,300MB/s catalyzes PCIe® Gen4 power. With transfer rates 2× faster than PCIe Gen3, FireCuda 530 is built for sustained abuse and dependable performance. The speed of PCIe Gen4 is yours—seize the power
Key Advantages
Speed Reigns. FireCuda 530 dominates the SSD lineup—delivering pure performance, absolute power, the most advanced components, and unrivaled endurance.
Absolute Performance. At up to 7,300MB/s you can harness the full power of PCIe Gen4 speeds to dominate next-generation games and applications.
Cool Speed Ahead Heatsink technology keeps things cooler to maintain performance longer.
Storage Expansion for PS5™ The FireCuda 530 heatsink is compatible with PS5 consoles and meets PS5 specs on performance and dimensions for an easy drop-in expansion solution with no additional parts needed 1 .
Fastest. FireCuda. Ever. Built for sustained, pro-level gaming and accelerated content creation with transfer speeds up to 2× faster than PCIe Gen3 NVMe SSDs and up to 12× faster than SATA SSDs.
Latest Tech. Built with a Seagate-validated E18 controller and the latest 3D TLC SSD NAND, FireCuda 530 provides the most advanced speed and durability so you can push the limits of your machine.
Endurance Unleashed. Designed to perform under heavy use and tough enough to go the distance—up to 5100TB TBW means you can write and delete 70% of the drive capacity, every day, for five years.
Rescue Services. Rest easy with three years of Rescue Data Recovery Services 2 , offering an industry-leading 95% success rate against unexpected data loss.
Best-Fit Applications
- High-performance gaming desktops
-
Creative professional systems
1 Using an M.2 SSD with your PS5 console requires effective heat dissipation with a cooling structure, such as an heatsink and a heat transfer sheet.
2 Rescue Data Recovery Services not available in all countrie
Specifications
| (NVME-M.2) | |
| Capacity | 4TB |
| Standard Model Number | ZP4000GM3A023 |
| Interface | PCIe Gen4 ×4, NVMe 1.4 |
| NAND Flash Memory | 3D TLC |
| Form Factor | M.2 2280 with heatsink 1 |
| Performance | |
| Sequential Read (Max, MB/s), 128KB 2 | 7250 |
| Sequential Write (Max, MB/s), 128KB 2 | 6900 |
| Random Read (Max, IOPS), 4KB QD32 T8 2 | 1,000,000 |
| Random Write (Max, IOPS), 4KB QD32 T8 2 | 1,000,000 |
| Endurance/Reliability | |
| Total Bytes Written (TB) | 5100 |
| Mean Time Between Failures (MTBF, hours) | 1,800,000 |
| Rescue Data Recovery Services (years) 3 | 3 |
| Warranty, Limited (years) | 5 |
| Power Management | |
| Active Power, Average (W) | 8.6 |
| Idle Power PS3, Average (mW) | 30 |
| Low Power L1.2 mode (mW) | <5 |
| Environmental | |
| Temperature, Operating Internal (°C) | 0 to 70 |
| Temperature, Nonoperating (°C) | –40 to 85 |
| Shock, Nonoperating: 0.5ms (Gs) | 1500 |
| Special Features | |
| TRIM | Yes |
| S.M.A.R.T | Yes |
| Halogen Free | Yes |
| RoHS Compliance | Yes |
| Physical | |
| Length (mm/in, max) | 3.156in |
| Width (mm/in, max) | 24.2mm/0.953in |
| Height (mm/in, max) | 10.39mm/0.410in |
| Weight (g/lb) | 47g/0.104lb |
