Description

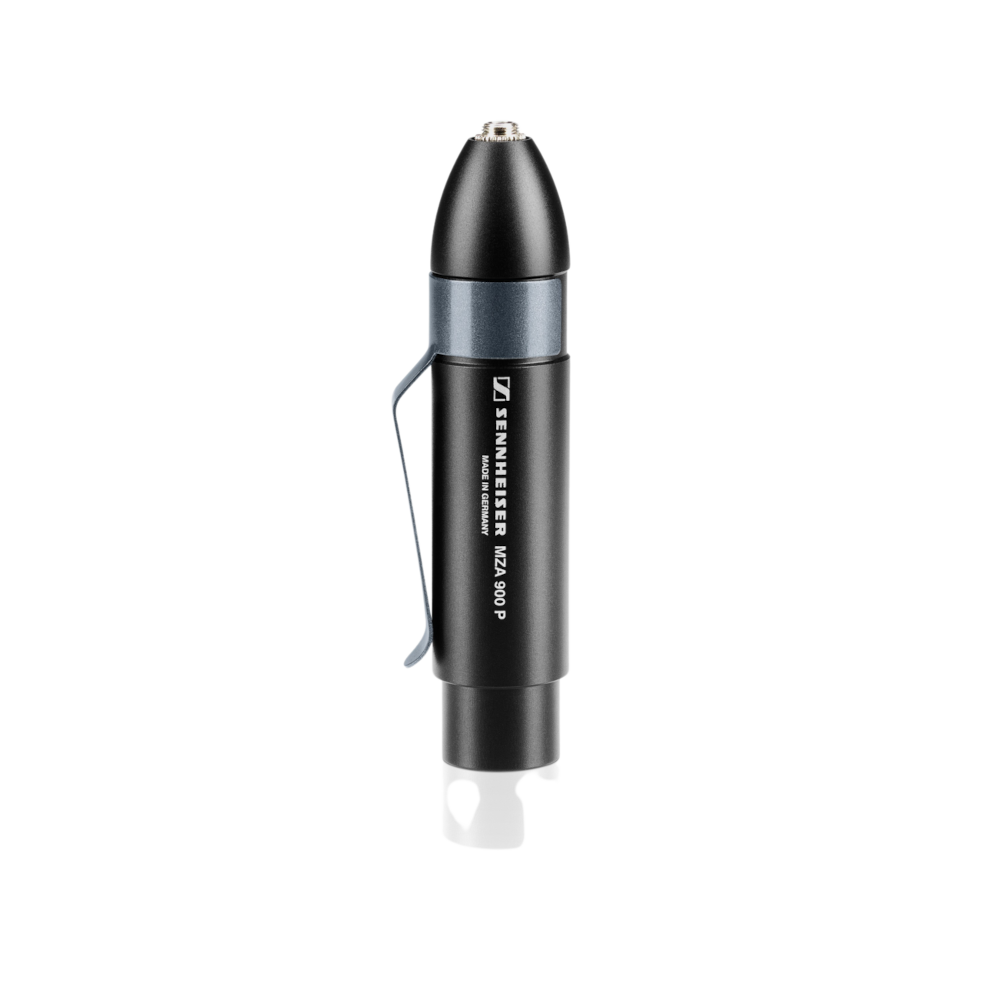

The Sennheiser MZA 900 P is a professional phantom power adapter designed to connect pre-polarized condenser microphones with a 3.5 mm jack plug to standard microphone inputs with 10 – 52 V phantom power. It provides a reliable wired solution for microphones originally designed for wireless applications, allowing seamless integration into professional audio systems, studios, and live sound environments.
Featuring a lockable 3.5 mm jack socket and a balanced 3-pin XLR output connector, the MZA 900 P supplies power to the connected microphone while maintaining excellent signal integrity. The compact and rugged design makes it an ideal accessory for professional microphone setups, including Sennheiser evolution series microphones such as the e 908.
ARCHITECT’S SPECIFICATION
The phantom power adapter shall be designed for connecting pre-polarized condenser microphones with a 3.5 mm jack connector to professional microphone inputs providing 10 – 52 V phantom power (P12 – P48).
The adapter shall feature a lockable 3.5 mm input socket, balanced 3-pin XLR male output connector, switchable pre-attenuation, and switchable roll-off filter. The unit shall provide reliable microphone powering and allow professional wired operation of compatible microphones originally intended for wireless applications.
The adapter shall provide a frequency response of 20 Hz – 20,000 Hz (-1 dB), switchable pre-attenuation of 0 dB / –12 dB, and a switchable low-frequency roll-off filter at 125 Hz (-3 dB, 12 dB/oct).
The output impedance shall be 100 Ω. The adapter shall operate with P12 – P48 phantom power, requiring 10 – 52 V DC at 2.6 – 2.8 mA.
Dimensions shall be Ø 19/22 × 100 mm. Weight shall be 60 grams.
The phantom power adapter shall be the Sennheiser MZA 900 P.
TECHNICAL SPECIFICATIONS
| Product type | Phantom Power Adapter |
| Compatible microphones | Pre-polarized condenser microphones with 3.5 mm jack plug |
| Frequency response | 20 – 20,000 Hz (-1 dB) |
| Pre-attenuation | 0 dB / –12 dB (switchable) |
| Roll-off filter | 125 Hz (-3 dB), 12 dB/oct (switchable) |
| Maximum output voltage | 1.8 V (P48, 0 dB gain) 0.6 V (P12, 0 dB gain) 0.45 V (P12 – P48, -12 dB gain) |
| Output impedance | 100 Ω |
| Minimum load impedance | 5 kΩ (0 dB pre-attenuation) 2 kΩ (-12 dB pre-attenuation) |
| Power supply | P12 – P48 phantom power, 10 – 52 V / 2.6 – 2.8 mA |
| Input connector | 3.5 mm lockable jack socket |
| Output connector | 3-pin XLR male |
| Dimensions | Ø 19/22 × 100 mm |
| Weight | 60 g |
| Operating temperature | -20 °C to +60 °C |
| Humidity range | < 95% relative humidity |
DELIVERY INCLUDES
- MZA 900 P Phantom Power Adapter
- Quick Guide
- Safety Guide
