Description

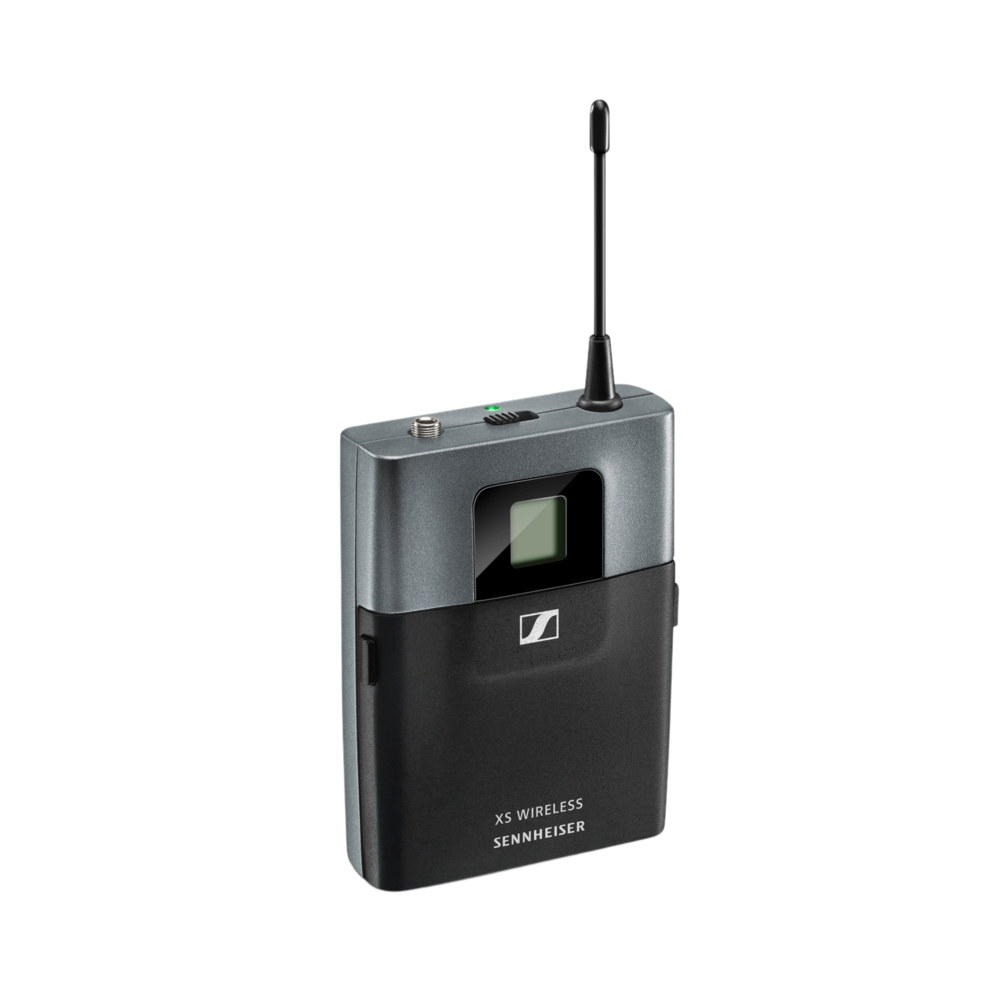

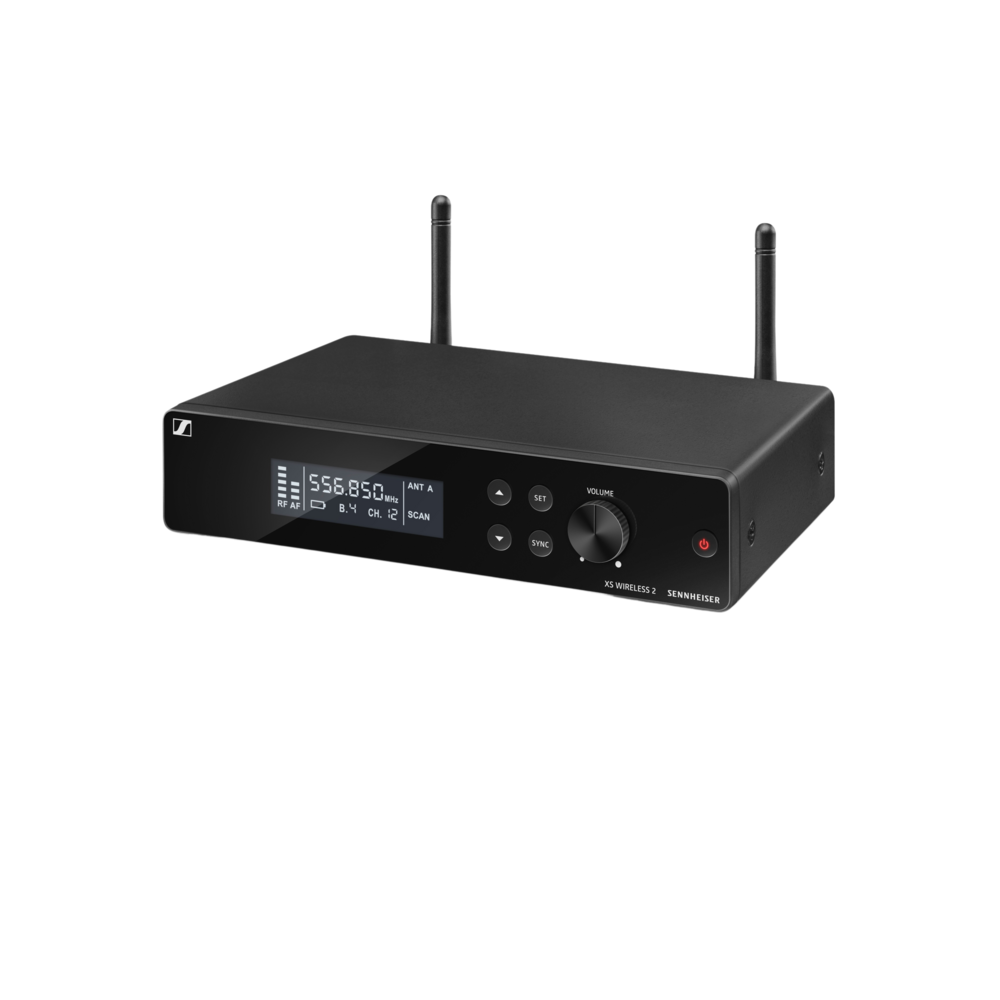

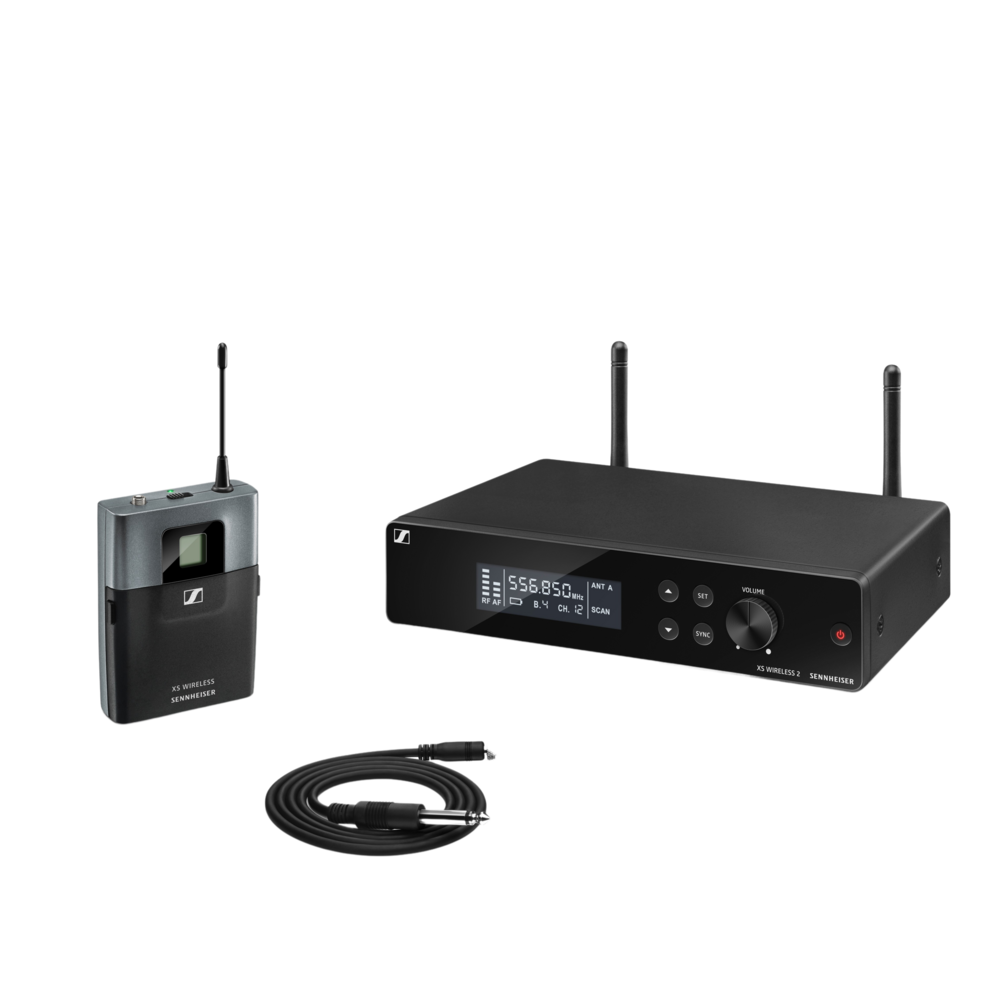

Sennheiser XSW 2-CI1 is a professional UHF wireless instrument system designed for guitarists and bass players who need reliable wireless freedom on stage. The system includes the compact SK-XSW bodypack transmitter, a durable CI 1 instrument cable, and the EM-XSW 2 true diversity receiver for stable and high-quality wireless performance.
Built for demanding live environments, the XS Wireless 2 Instrument Set offers flexible operation with a rugged metal receiver housing, external antennas, intuitive LCD display, automatic frequency management, remote synchronization, and up to 12 compatible channels. It provides dependable wireless connectivity for live performances, rehearsals, touring musicians, and professional stage applications.
SPECIFICATIONS
| Product Type | Wireless Instrument System |
| Model | XSW 2-CI1-A |
| Article No. | 507136 |
| Frequency Range | 548.000 – 572.000 MHz |
| Wireless Technology | Analog UHF |
| Instrument Cable | CI 1 Instrument Cable |
| Receiver Principle | Double Superheterodyne |
| Receiver Type | True Diversity |
| Audio Frequency Response | 50 – 16,000 Hz (–3 dB) |
| Sensitivity | < 3 μV at 52 dB(A)rms S/N |
| Signal-to-Noise Ratio | ≥ 103 dB(A) |
| Total Harmonic Distortion (THD) | ≤ 0.9% |
| Compatible Channels | Up to 12 Channels |
| Transmitter Adjustment Range | 0 to -30 dB, adjustable in 10 dB steps |
| Squelch | Switchable from 3 dBμV to 28 dBμV (via Pilot Tone) |
| Line / Mic Level | 20 dB, switchable |

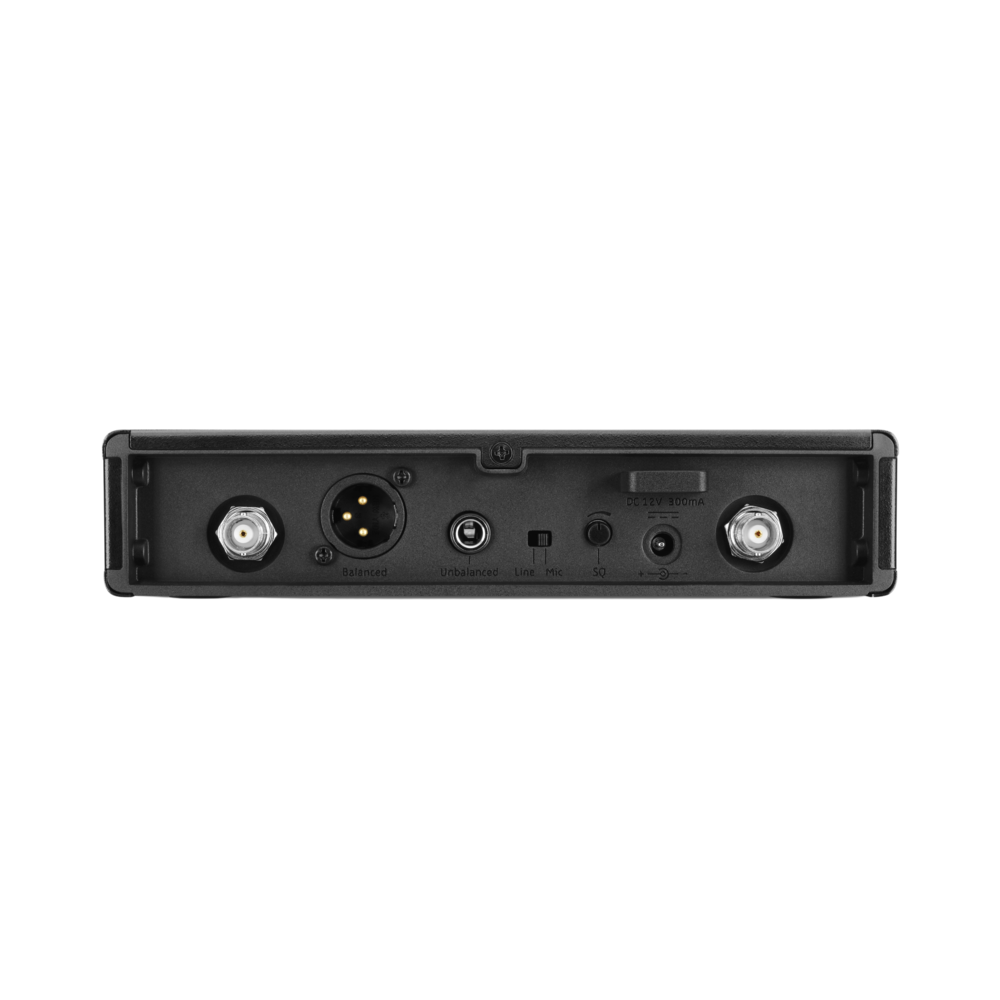

| Audio Outputs | 6.3 mm Jack Socket (Unbalanced): +6 dBu XLR Socket (Balanced): +12 dBu |
| Battery | 2 × AA Batteries |
| Battery Voltage | 1.5 V |
| Battery Life | Approx. 10 Hours |
| Receiver Dimensions | Approx. 200 × 42 × 127 mm |
| Receiver Weight | 680 g |
PACKAGE INCLUDES
- 1 × EM-XSW 2 Rack Receiver
- 1 × SK-XSW Bodypack Transmitter
- 1 × CI 1 Instrument Cable

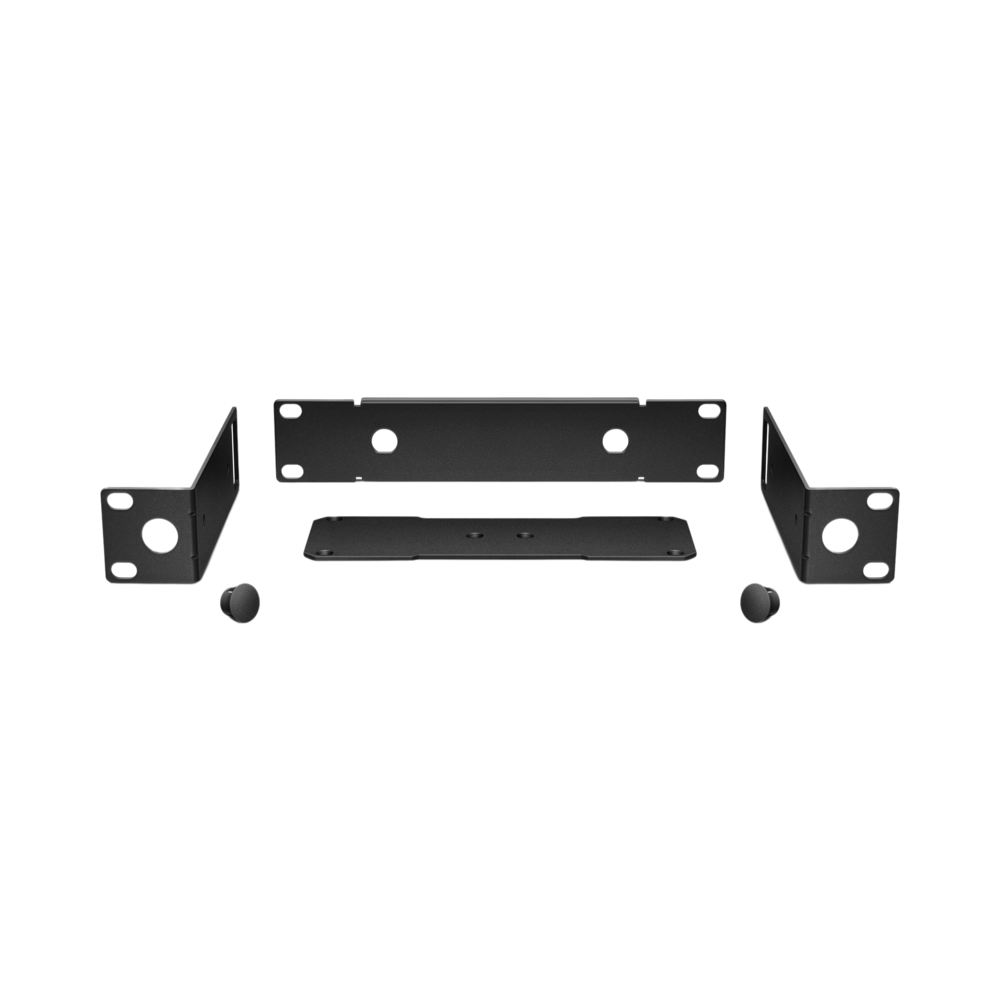

- 1 × GA 1-XSW 2 Rackmount Kit
- 1 × NT 12-5CW Power Supply with Country Adapters
- 2 × AA Batteries
SUITABLE FOR
- Guitarists
- Bass Players
- Live Music Performances
- Concerts & Stage Shows
- Touring Musicians
- Rehearsals
- Worship Music Performances
- Professional Live Sound Applications
