Description
SA6400
Handle growing data storage demands with ease
Highly scalable storage for enterprise and studios

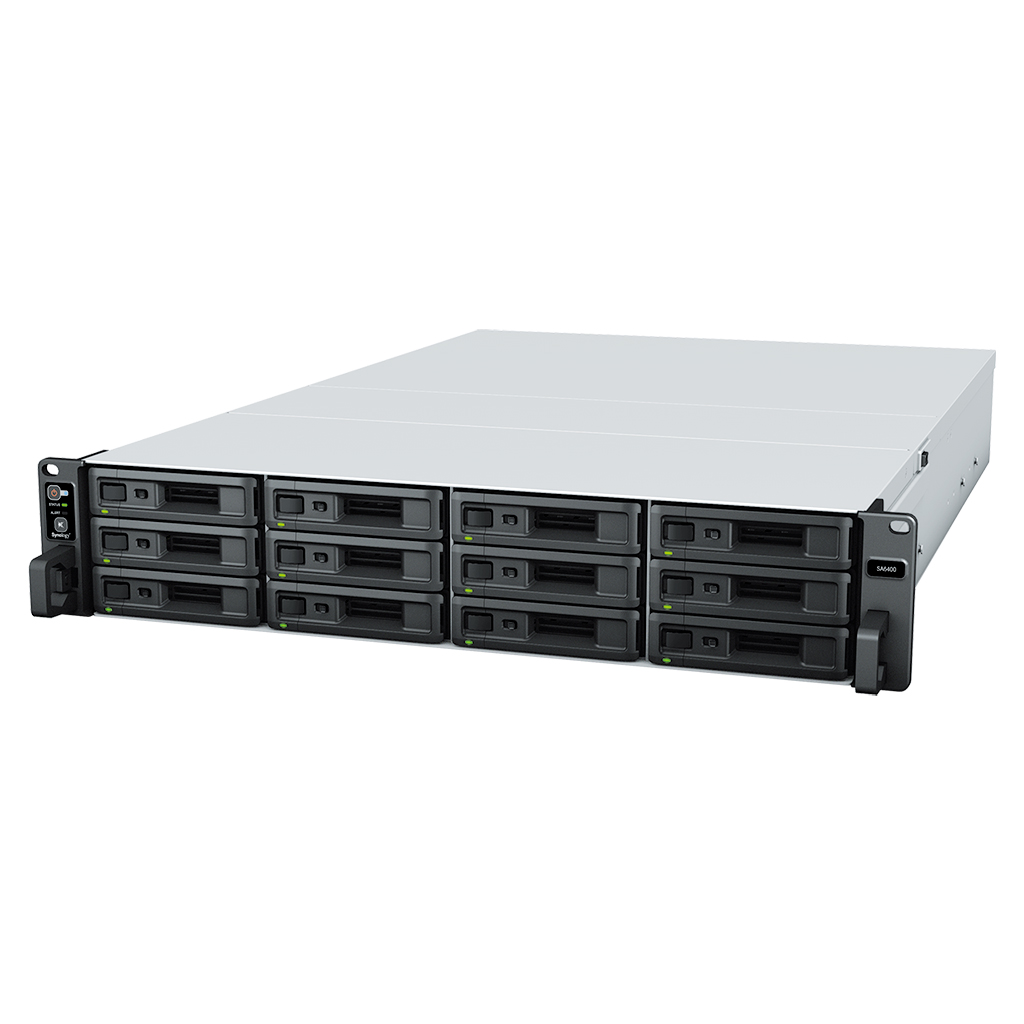

The 12-bay Synology SA6400 is designed for rapid data scaling. With support for up to 108 drives after expansion, this unit is ideal for enterprise data centers, large production studios, and growing businesses in the retail and hospitality sectors looking to tackle data-intensive projects while leaving room for future expansion.
Click to Download Datasheet
- Scalability : Up to 1.9 PB with 8 x RX1223RP expansion units
- CPU : Over 6,500/4,000 MB/s sequential read/write
- Networking : Optional 25/40GbE or Fibre Channel connectivity
On-demand storage expansion
The SA6400 scales up flexibly whenever your data demands do. Accommodate up to 9 times the original capacity by adding 12-bay RX1223RP expansion units as your deployment grows.
Built for high reliability
The SA6400 is designed with built-in redundancies to keep mission-critical services running, even when disaster strikes.
Out-of-band (OOB) management
Remotely power on/off, force restart, and reset your server, or view real-time and historical DSM system logs, even while the device is powered off or the primary network is down, using the dedicated out-of-band management console.
Redundant power supply
Reduce the possibility of power disruptions on a single distribution channel or power distribution unit adversely impacting data and service availability with redundant PSUs.
Failover cluster
Combine two SA6400 units into a high-availability cluster with Synology High Availability to achieve full hardware and data redundancy. Minute-level failover minimizes data loss and downtime in the event of server failure, or while performing system updates or upgrades.
Advanced networking options
The SA6400 has the flexibility to accommodate different operating environments.
Built-in fast connectivity
Two 10GbE RJ-45 ports provide rapid transfer speeds right out of the box.
Configurable networking options
Add up to 2 extra 10GbE SFP+/RJ-45, 25GbE SFP28, or Fibre Channel ports in varying configurations.2
Failover and network balancing
Bond multiple network interfaces with Link Aggregation to enable automatic network failover and load balancing.
Versatile data storage and business application platform
Provide easy access to business data, consolidate digital assets, or host cost-efficient business solutions.
Flexible file server
Take advantage of the SA6400’s high storage capacity and expansion capability to host large amounts of data on a central repository. Provide user-friendly access to business data and set up powerful cross-site syncing to empower remote and multi-site collaboration.
Central backup server
Back up PCs, servers, Synology systems, SaaS data, and VMs, and back up your backup servers themselves with a scalable central storage solution.
Business application platform
Host cost-efficient business solutions, either through containers, virtual machines, or Synology DiskStation (DSM)’s own solutions, including a powerful free backup suite, a versatile mail server, and a surveillance VMS with transparent licensing.
Centralized monitoring and management
Stay on top of your fleet and keep it in optimal condition with our cloud and DSM-based monitoring and management solutions.
Central Management System (CMS)
Conveniently manage your fleet of Synology systems from a centralized console.
Active Insight
A powerful cloud-based platform for monitoring performance, backup status, login activity and performing lightweight management tasks.
Synology has you covered
The SA6400 is backed by Synology's 5-year limited warranty,6 including technical support and hardware replacement services to maximize your return on investment and ensure continued high-quality performance
Performance backed by Synology drives
Engineered to handle intensive 24/7 workloads, Synology drives consistently deliver top-grade performance.
SPECIFICATIONS
Hardware Specification
|
CPU |
CPU Model | AMD EPYC 7272 |
|---|---|---|
| CPU Quantity | 1 | |
| CPU Architecture | 64-bit | |
| CPU Frequency | 12-core 2.9 (base) / 3.2 (turbo) GHz | |
| Hardware Encryption Engine (AES-NI) | ||
|
Memory |
System Memory | 32 GB DDR4 ECC RDIMM |
| Memory Module Pre-installed | 32 GB (32 GB x 1) | |
| Total Memory Slots | 16 | |
| Maximum Memory Capacity | 1024 GB (64 GB x 16) | |
| Notes |
|
|
|
Storage |
Drive Bays | 12 |
| Maximum Drive Bays with Expansion Unit | 108 (RX1223RP x 8) | |
| Compatible Drive Type* (See all supported drives) |
|
|
| Hot Swappable Drive* | ||
| Notes |
|
|
|
External Ports |
RJ-45 1GbE LAN Port | 4 (with Link Aggregation / Failover support) |
| RJ-45 10GbE LAN Port | 2 (with Link Aggregation / Failover support) | |
| Management LAN Port | 1 | |
| Max. number of LAN ports | 15 | |
| USB 3.2 Gen 1 Port* | 2 | |
| Expansion Port | 8 | |
| Notes | The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019. | |
|
PCIe |
PCIe Expansion | 2 x Gen3 x8 slots (x8 link) |
|
File System |
Internal Drives |
|
| External Drives |
|
|
|
Appearance |
Form Factor (RU) | 2U |
| Size (Height x Width x Depth) | 88 mm x 482 mm x 724 mm | |
| Weight | 16.5 kg | |
| Rack Installation Support* | 4-post 19" rack (Synology Rail Kit – RKS-02) | |
| Notes | The rail kit is sold separately | |
|
Others |
System Fan | 80 mm x 80 mm x 4 pcs |
| Fan Speed Mode |
|
|
| Easy Replacement System Fan | ||
| Power Recovery | ||
| Noise Level* | 55.5 dB(A) | |
| Scheduled Power On / Off | ||
| Wake on LAN / WAN | ||
| Power Supply Unit / Adapter | 550 W | |
| Redundant Power Supply | ||
| AC Input Power Voltage | 100V to 240V AC | |
| Power Frequency | 50/60 Hz, Single Phase | |
| Power Consumption |
180.5 W (Access) 88.56 W (HDD Hibernation) |
|
| British Thermal Unit |
615.89 BTU/hr (Access) 302.18 BTU/hr (HDD Hibernation) |
|
| Notes |
|
|
|
Temperature |
Operating Temperature | 0°C to 35°C (32°F to 95°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) | |
| Relative Humidity | 5% to 95% RH | |
|
Certification |
|
|
|
Warranty |
5 Years | |
| Notes | The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more) | |
|
Environment |
RoHS Compliant | |
|
Packaging Content |
|
|
|
Optional Accessories |
|
|
| Notes | All memory modules will operate at the maximum frequency specified by the CPU manufacturer. | |
Software Specification
|
DSM Specifications |
||
|---|---|---|
| Maximum Single Volume Size* |
|
|
| Maximum Internal Volume Number | 256 | |
| SSD Read / Write Cache (White Paper) | ||
| SSD TRIM | ||
| RAID Group | ||
| Supported RAID Type |
|
|
| RAID Migration |
|
|
| Volume Expansion with Larger HDDs |
|
|
| Volume Expansion by Adding a HDD |
|
|
| Global Hot Spare Supported RAID Type |
|
|
| Notes |
|
|
| File Protocol | SMB/AFP/NFS/FTP/WebDAV | |
| Maximum Concurrent SMB/AFP/FTP Connections | 8,000 | |
| Maximum Concurrent SMB/AFP/FTP Connections (with RAM expansion) | 10,000 | |
| Windows Access Control List (ACL) Integration | ||
| NFS Kerberos Authentication | ||
| Notes |
|
|
| Maximum Local User Accounts | 16,000 | |
| Maximum Local Groups | 512 | |
| Maximum Shared Folder | 512 | |
| Maximum Shared Folder Sync Tasks | 32 | |
| Hybrid Share Folder Number | 30 | |
| Synology High Availability | ||
| Syslog Events per Second | 3,000 | |
|
Virtualization |
VMware vSphere with VAAI | |
| Citrix Ready | ||
| OpenStack | ||
| Networking Protocols | SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, Fibre Channel, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV | |
| Supported Browsers |
|
|
| Supported Language | English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文 | |
| Notes | For an updated list of supported browser versions, check the DSM Technical Specifications. | |
|
Add-on Packages view the complete package list |
||
|
Antivirus by McAfee (Trial) |
||
| Maximum Number of Concurrent Users | 1,500 | |
| Notes |
|
|
|
Document Viewer |
||
|
Download Station |
Maximum Concurrent Download Tasks | 80 |
| Maximum iSCSI Target Number | 256 | |
| Maximum LUN | 512 | |
| LUN Clone/Snapshot, Windows ODX | ||
| Free Email Accounts | 5 (Licenses required for additional accounts) | |
| Maximum Number of Concurrent Users | 2,200 | |
| Maximum Server Performance | 5,721,000 emails per day, approx. 174 GB | |
| Notes |
|
|
| DLNA Compliance | ||
| Facial Recognition | ||
| Maximum Snapshots per Shared Folder | 1,024 | |
| Maximum of System Snapshots | 65,536 | |
| Maximum IP cam (Licenses required) | 128 (including 2 Free License) (see all supported IP cameras) | |
| Total FPS (H.264) |
3840 FPS @ 720p (1280×720) 2800 FPS @ 1080p (1920×1080) 1230 FPS @ 3M (2048×1536) 800 FPS @ 5M (2591×1944) 600 FPS @ 4K (3840×2160) |
|
| Total FPS (H.265) |
3840 FPS @ 720p (1280×720) 3840 FPS @ 1080p (1920×1080) 2700 FPS @ 3M (2048×1536) 1500 FPS @ 5M (2591×1944) 1120 FPS @ 4K (3840×2160) |
|
| Notes |
|
|
| Recommended Number of Concurrent Sync Clients | 2,000 (the number of connections that can be maintained when the recommended number of hosted files was reached) | |
| Recommended Number of Hosted Files | 100,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above) | |
| Notes |
|
|
| Maximum Users | 3,400 | |
| Notes |
|
|
| Recommended Virtual Machine Instances | 24 (Learn more) | |
| Recommended Virtual DSM Number (Licenses required) | 24 (including 1 Free License) | |
| Notes | The specifications vary depending on system configuration and memory size. | |
| Maximum Connections | 60 | |
Notes:
- Model specifications are subject to change without prior notice.
- The figures are based on Synology internal testing. Each performance test is done individually. No other services or applications are processed at the same time.
- The actual performance may be lower than lab testing figure due to differences in server configuration, deployment, and the number of active operations.
- If usage requirements exceed the specifications above, please contact our regional partners for professional advice.
