Description

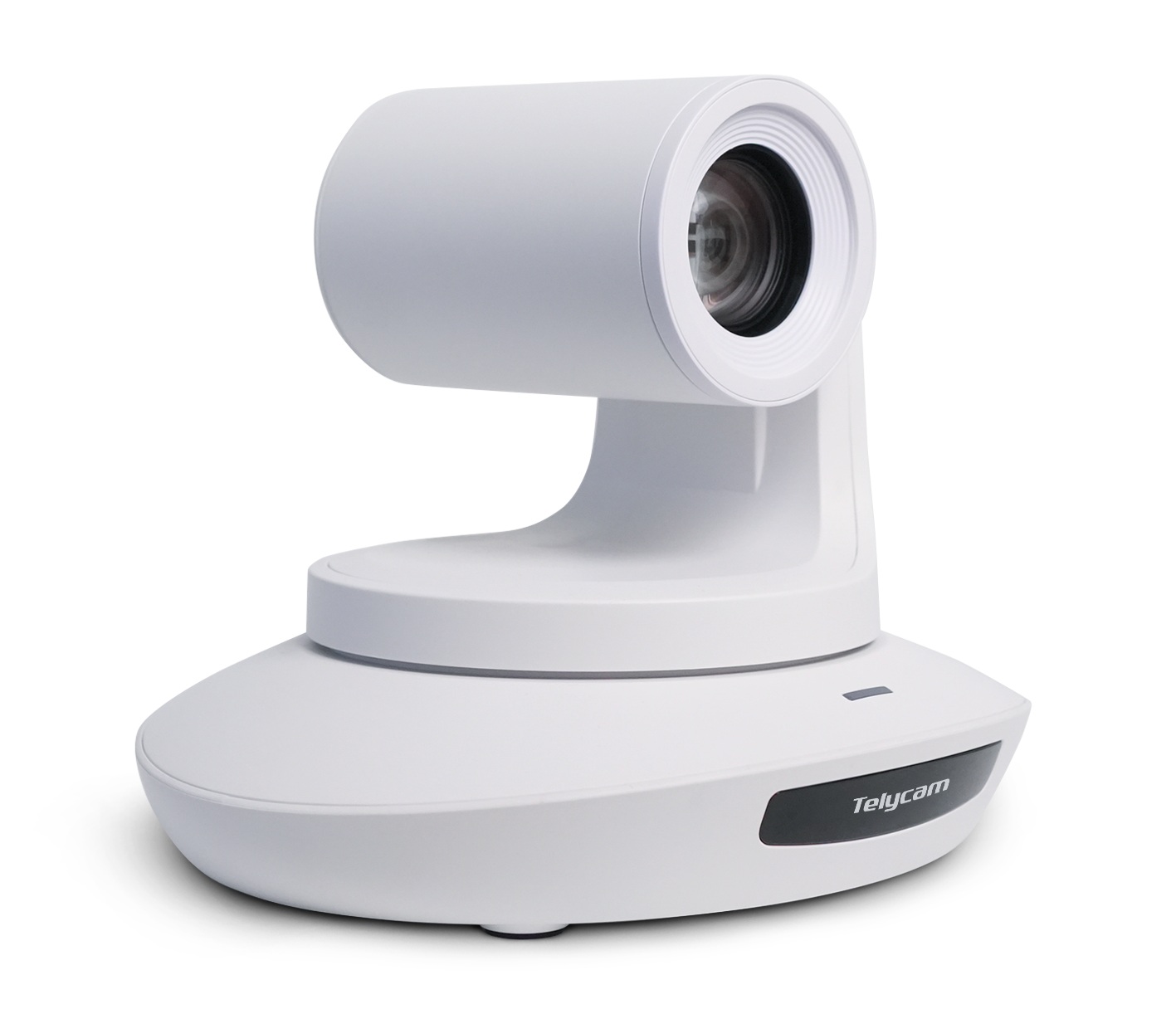

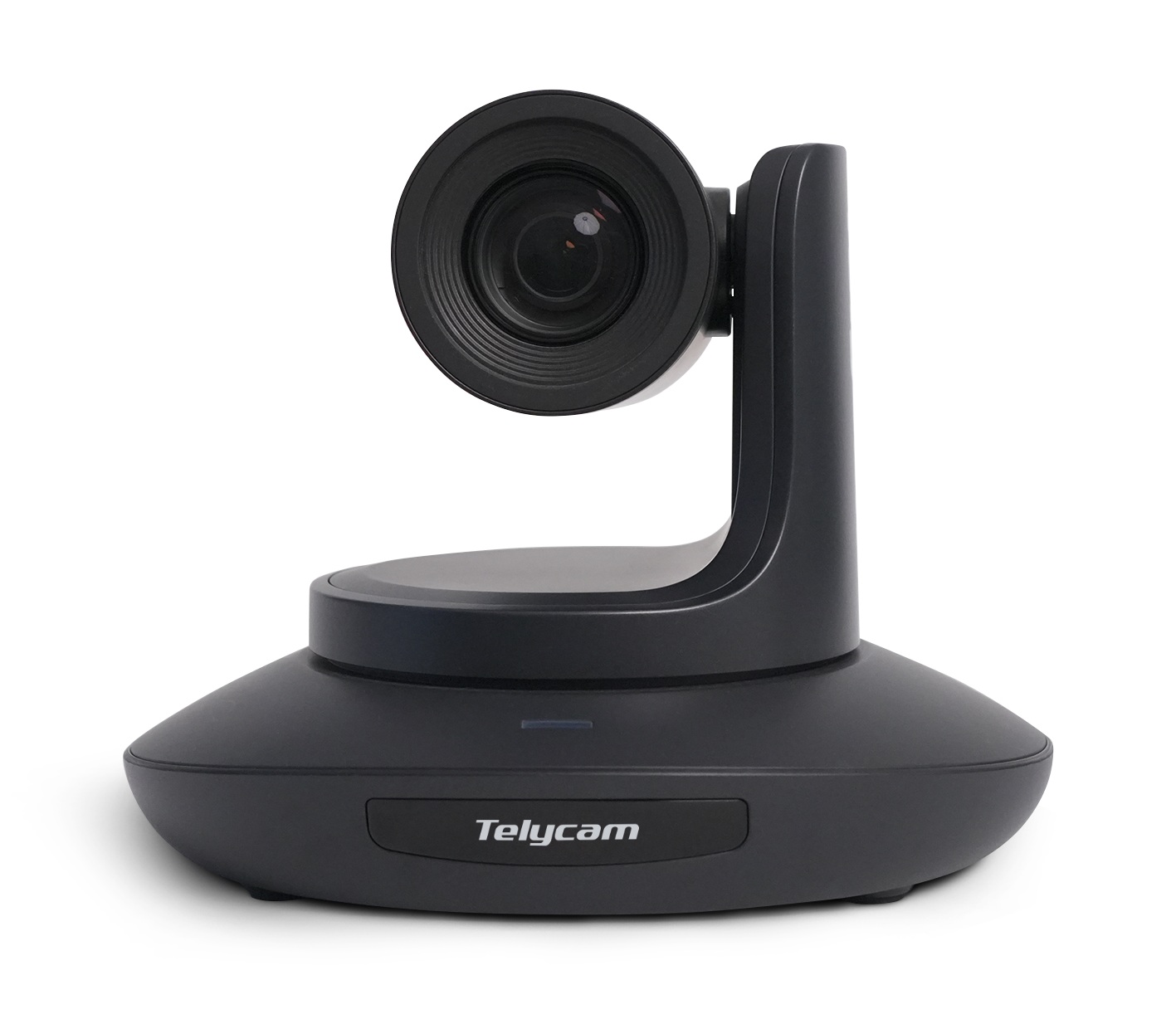

Vision+ N3 is the premium NDI®HX3 1080p60 PTZ camera series from Telycam, featuring the latest NDI® SDK for IP connectivity and the most advanced American image processing solution
to deliver crystal clear high definition images. Its advanced PTZ mechanical design enables smooth and accurate pan, tilt, and zoom movements. Its versatile NDI®HX3, HDMI, SDI, and USB2.0 connectivity output 1080p60 Full HD resolution, ideal for professional live streaming applications. Line in audio input can be combined and output simultaneously with video over NDI®HX3, HDMI2.0 and 3G-SDI. With 20X and 30X optical zoom available, the Vision+ N3 can fit seamlessly into any production scenario.

Product Features

NDI®HX3: Enhanced Performance & Lower Latency for Live Production

NDI®HX3 brings better quality and lower latency to video production, supporting H.264/H.265 compression for flexibility and performance. With NDI®HX3 certification, Vision+ N3 series provide superior video quality with minimal latency, ensuring smooth and professional live productions. The optimized low latency of NDI®HX3 enhances real-time transmission, making it perfect for dynamic and interactive content creation.

1080p60 FHD Resolution

Equipped with premium image processing solution and Sony CMOS sensor, Vision+ N3 delivers FHD and crystal-clear images even in low-light working environments.

NDI®HX3/3G-SDI/HDMI/USB 2.0 Available

In addition to NDI®HX3, Vision+ N3 simultaneously outputs images via 3G-SDI, HDMI, and USB 2.0. 3G-SDI and HDMI are for transitional video production, while the USB output can function as a high-end webcam.
Note: USB and NDI cannot output simultaneously.

FreeD Integration Unlocks Immersive Virtual Productions

FreeD is a protocol that enables precise transmission of Pan, Tilt, Zoom, and Focus (PTZF) data directly from the camera to tracking system.  Widely supported by most virtual set systems, FreeD makes virtual productions easier than ever. The Vision+ N3 seamlessly integrates FreeD technology, empowering users to explore dynamic shooting angles and perspectives, ideal for versatile real-world and virtual-world applications. Vision+ N3’s broad compatibility with industry-leading virtual set systems like Brainstorm, Vizrt, Zero Density, Aximmetry, Unreal Engine, and VSet3D ensures a smooth workflow for all your virtual production needs.

Tally Lights for Effortless Production Cues

Tally light, a visible indicator typically in red LED, illuminates to signal when the camera is live and actively feeding its image output.

Vision+ N3 series features built-in tally lights that work with NDI. This intuitive feature receives signals directly from NDI, without the need for separate tally control systems. A bright LED illuminates to clearly indicate which camera is currently on-air (“Program”) and which is lined up for the next transition (“Preview”).

3.5mm Stereo Line-in

The Vision+ N3 features a 3.5mm stereo line-in audio interface, allowing for direct connection of external audio sources. This ensures high-quality, synchronized audio alongside your video feed, enhancing overall production quality. The line-in supports various audio devices, providing flexibility and convenience for professional broadcasting and video production.

20X/30X Optical Zoom

The Vision+ N3 provides 20X optical zoom with a 60° FOV and 30X optical zoom with a 63° FOV. Its advanced focusing algorithm ensures rapid and accurate focus even during zoom or movement.

Seamless Camera Setup with SSDP

Setting up your Telycam PTZ camera has never been easier, thanks to SSDP integration. This feature streamlines the process of finding your camera’s IP address, especially under multi-camera streaming, eliminating the need for complicated searches or additional tools. Simply connect your camera with an Ethernet cable, ensuring it’s on the same local network with your computer.

Telycam + Iris: Take Your Camera to the Cloud

Specifications

Vision+ N3 20x

• Part No: TLC-300-IP-20(NDI)-AB
• Sensor: 1/2.8 inch, 2.4MP CMOS sensor
• Optical Zoom: 20X
• Lens: f=4.9~98mm, F1.5~F3
• Horizontal View Angle: 60° (Wide) ~ 3.2° (Tele)
• Vertical Viewing Angle: 32.2°~1.8°
• Diagonal Viewing Angle: 60°~3.64°
• Minimum Working Distance: 1.0m
• S/N Ratio: ≥50 dB

Video Format

• HDMI
  • 1920 × 1080P60/50/30/25/59.94/29.97/24/23.98
  • 1920 × 1080I60/50/59.94
  • 1280 × 720P60/50/30/25/59.94/29.97

• NDI® HX3
  • Main Stream:
    • 1920 × 1080@15~60
    • 1280 × 720@15~60
    • 1024 × 576@15~60
  • Sub Stream:
    • 640 × 360@15~30

• 3G-SDI
  • 1920 × 1080P60/50/30/25/59.94/29.97/24/23.98
  • 1920 × 1080I60/50/59.94
  • 1280 × 720P60/50/30/25/59.94/29.97

• USB Type-C
  • NV12:
    • 1920 × 1080P5
    • 1280 × 720P15
    • 1024 × 576P25
    • 800 × 448P30
  • YUYV:
    • 1920 × 1080P5
    • 1280 × 720P10
    • 1024 × 576P15
    • 800 × 448P30
  • MJPG:
    • 1920 × 1080P30
    • 1280 × 720P30
    • 1024 × 576P30
    • 800 × 448P30
  • H.264 / HEVC:
    • 1920 × 1080P30
    • 1280 × 720P30
    • 1024 × 576P30
    • 800 × 448P30

Image Parameters

• Noise Reduction: 2D & 3D
• Minimum Lux: 0.5Lux(50 IRE Max AGC, 1/30, F1.5)
• White Balance: Auto/Manual/ATW/Push/Indoor/Outdoor/Color Temperature
• Exposure: Auto/Manual/Shutter Priority/Iris Priority/Brightness Priority
• Anti-Flicker: OFF, 50 Hz, 60 Hz
• Image Flip: Supported
• Mirroring: Supported
• Focus: Auto/Manual
• Iris: Auto/Manual
• Electronic Shutter: Auto/Manual
• Gamma: Supported
• Backlight Compensation: Supported

IP Streaming

• Video Encoding: H.264 / H.265
• Bitrate Control: Variable Bitrate (VBR), Constant Bitrate (CBR)
• Bitrate Range: 1024 Kbps ~ 122800 Kbps
• Network Port Speed: 1000M
• Protocol: NDI®HX3, SRT, HTTP, RTSP, RTMP, ONVIF, VISCA over IP (TCP & UDP), VISCA, PELCO P/D, SSDP, FreeD, NTP, RTP Multicast, WebRTC

Pan/Tilt Movement

• Preset: Remote controller: 10; Serial port: 256; Accuracy: 0.1°
• Pan Rotation Angle: -170° ~ +170°
• Tilt Rotation Angle: -30° ~ +90°
• Pan Rotation Speed: 0.1°~120°/s
• Tilt Rotation Speed: 0.1°~80°/s

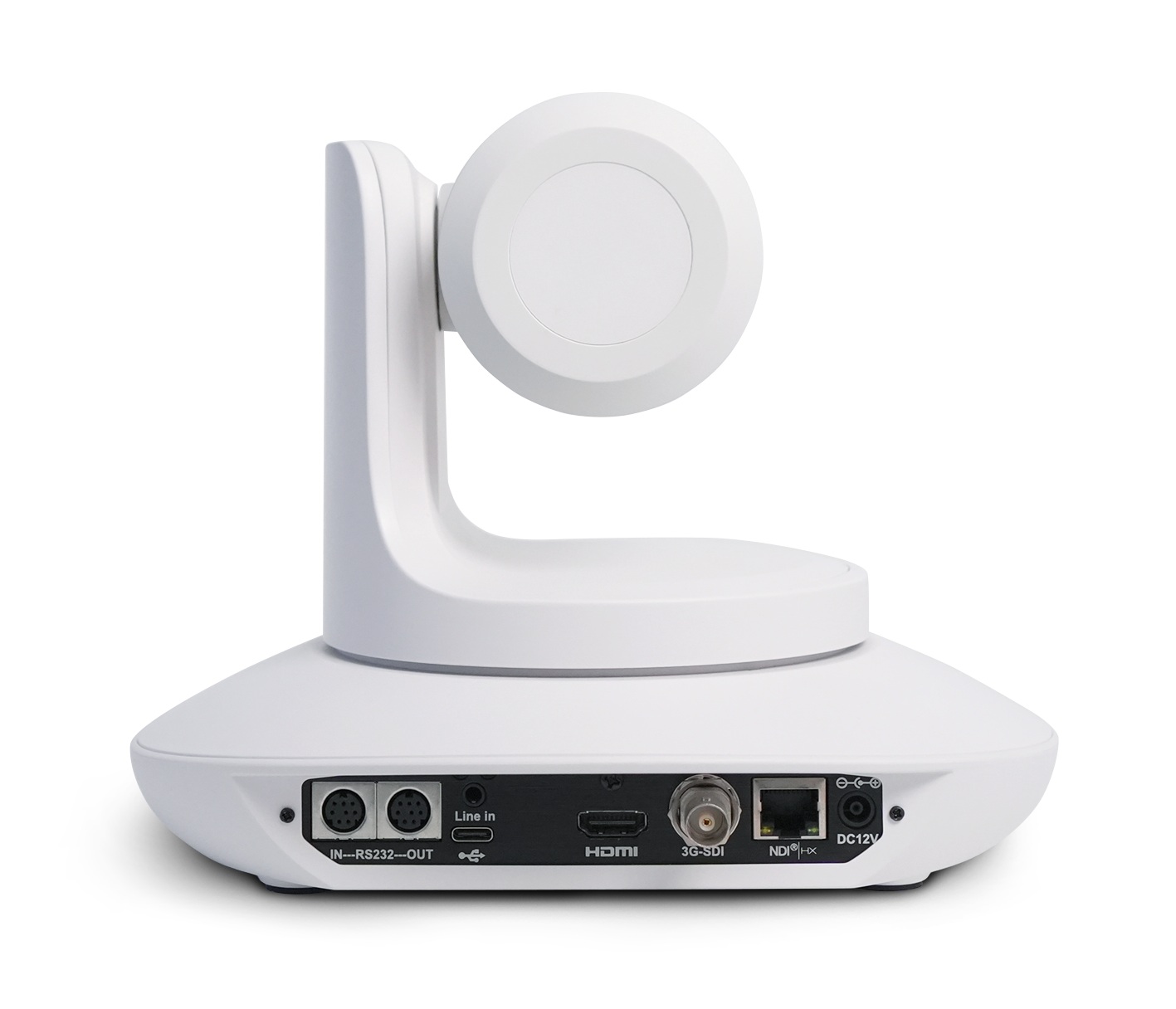

I/O Interface

• Control Port:
  • RS232 (RS485)
  • NDI® HX3
• Video Port:
  • NDI® HX3
  • HDMI
  • 3G-SDI
  • USB Type-C
• Audio Port:
  • Stereo 3.5 mm line-in
• Tally: Supported
• POE+: Supported
• Daisy Chain: Supported

General

• Input Voltage: DC12V, POE+ (IEEE 802.3at)
• Operating Temperature: -10°C ~ 50°C
• Operating Humidity: ≤80%
• Dimensions (L × W × H): 220mmx190mmx173mm
• Net Weight: 1.5kg(3.3LBS)
• Color: Black / White
