Description

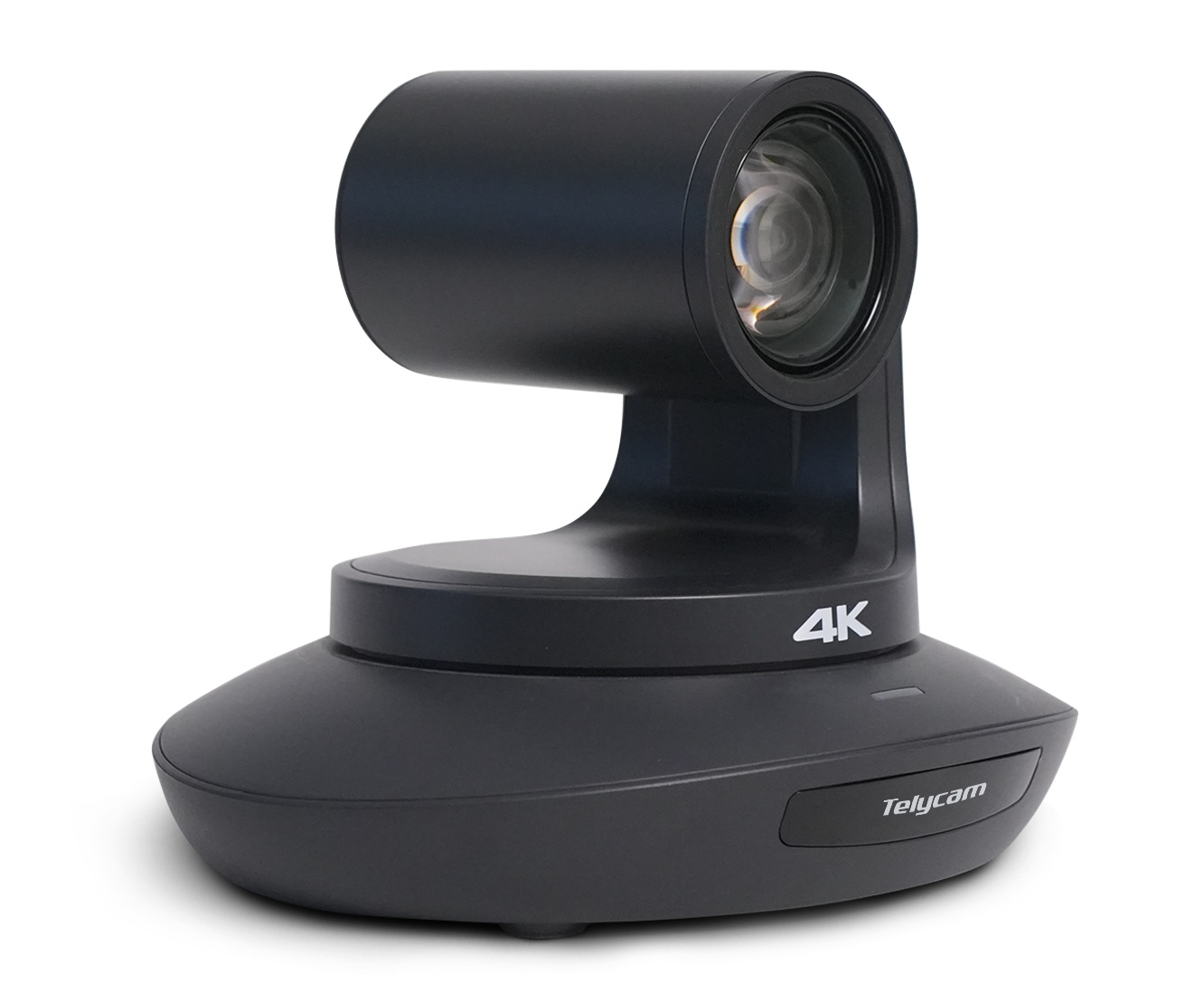

The Vision+ SE is a true 4K60 12X PTZ camera equipped with an integrated native auto-tracking feature. It seamlessly integrates with the latest NDI® SDK Incorporating the most advanced American image processing solution and featuring a cutting-edge Sony 1/2.8-inch 8.4MP sensor and Telycam’s proprietary video camera algorithms, it effortlessly captures 4K60 ultra HD images with true-to-life colors, even in challenging low-light or high-contrast environments. Its sleek PTZ mechanical design ensures precise pan, tilt, and zoom movements. NDI®HX3 allows it to output up to 4K UHD resolution, while 3G-SDI and USB2.0 provide Full HD resolution output, making it an ideal choice for professional live streaming applications. Furthermore, it offers line-in audio input, enabling simultaneous audio and video output from both NDI®HX3 and 3G-SDI(or HDMI) sources.

Product Features

Unparalleled 4K UHD Brilliance

Equipped with cutting-edge image processor, Vision+ SE outputs 4Kp60/59.94 video for clear, sharp, lifelike images even in low-light environments.

3G-SDI or HDMI for Easy Integration

Vision+ SE is available with a choice of 3G-SDI or HDMI output for seamless integration while keeping your budget in mind. 3G-SDI offers uncompressed, high-bandwidth video, while HDMI allows for convenient connection to various display devices. Choose the connection that best suits your existing infrastructure without compromising on high-quality video capture.

Native NDI®HX Connectivity

The Vision+ SE’s NDI®HX connectivity simplifies setup, enables centralized control, and ensures compatibility with various equipment. This streamlines production workflows and reduces costs.

Magnify with 12x Optical Mastery

With a 4K 12X optical zoom and an expansive 80.5-degree FOV, coupled with a custom focusing algorithm, every zoom and pan translates to a journey through intricate details.

FreeD Integration Unlocks Immersive Virtual Productions

FreeD is a protocol that enables precise transmission of Pan, Tilt, Zoom, and Focus (PTZF) data directly from the camera to tracking system. Widely supported by most virtual set systems, FreeD makes virtual productions easier than ever. The Vision+ SE seamlessly integrates FreeD technology, empowering users to explore dynamic shooting angles and perspectives, ideal for versatile real-world and virtual-world applications. Vision+ SE’s broad compatibility with industry-leading virtual set systems like Brainstorm, Vizrt, Zero Density, Aximmetry, Unreal Engine, and VSet3D  ensures a smooth workflow for all your virtual production needs.

Tally Lights for Effortless Production Cues

Tally light, a visible indicator typically in red LED, illuminates to signal when the camera is live and actively feeding its image output.

Vision+ SE series features built-in tally lights that work with NDI. This intuitive feature receives signals directly from NDI, without the need for separate tally control systems. A bright LED illuminates to clearly indicate which camera is currently on-air (“Program”) and which is lined up for the next transition (“Preview”).

3.5mm Stereo Line-in

The Vision+ 4KN features a 3.5mm stereo line-in audio interface, allowing for direct connection of external audio sources. This ensures high-quality, synchronized audio alongside your video feed, enhancing overall production quality. The line-in supports various audio devices, providing flexibility and convenience for professional broadcasting and video production.

Seamless Camera Setup with SSDP

Setting up your Telycam PTZ camera has never been easier, thanks to SSDP integration. This feature streamlines the process of finding your camera’s IP address, especially under multi-camera streaming, eliminating the need for complicated searches or additional tools. Simply connect your camera with an Ethernet cable, ensuring it’s on the same local network with your computer.

Telycam + Iris: Take Your Camera to the Cloud

Specifications

Camera

• Part No: TLC-300-IP-12-4K(NDI)-AB-SE-HDMI
• Sensor: 1/2.8 inch, 9MP UHD CMOS sensor
• Optical Zoom: 12X
• Lens: f=3.4mm~40.3mm, F1.8~F3.6
• Horizontal View Angle: 80.5° (Wide) ~ 7.6° (Tele)
• Minimum Working Distance: Wide: 1 m; Tele: 1.5 m
• Vertical Viewing Angle: 50.0° ~ 4.4°
• Diagonal Viewing Angle: 88.9° ~ 8.7°
• S/N Ratio: ≥50 dB

Image Parameters

• Noise Reduction: 2D & 3D
• Minimum Lux: 0.5 Lux (50 IRE Max AGC, 1/30, F1.8)
• White Balance: Auto/Manual/ATW/Push/Indoor/Outdoor/Color Temperature
• Exposure: Auto/Manual/Shutter Priority/Iris Priority/Brightness Priority
• Anti-Flicker: OFF, 50 Hz, 60 Hz
• Image Flip: Supported
• Mirroring: Supported
• Focus: Auto/Manual
• Iris: Auto/Manual
• Electronic Shutter: Auto/Manual
• Gamma: Supported
• Backlight Compensation: Supported

Video Format

• NDI® HX3
  • Main Stream:
    • 3840 × 2160P15~60
    • 1920 × 1080P15~60
    • 1280 × 720P15~60
    • 1024 × 576P15~60
  • Sub Stream:
    • 640 × 360P15~30

• HDMI
  • 3840 × 2160P15~60
  • 1920 × 1080P15~60
  • 1280 × 720P15~60
  • 1024 × 576P15~60

• USB Type-C
  • NV12:
    • 1920 × 1080P5
    • 1280 × 720P15
    • 1024 × 576P25
    • 800 × 448P30
  • YUYV:
    • 1920 × 1080P5
    • 1280 × 720P15
    • 1024 × 576P25
    • 800 × 448P30
  • MJPG:
    • 3840 × 2160P30
    • 1920 × 1080P60
    • 1280 × 720P60
    • 1024 × 576P60
    • 800 × 448P60
  • H.264/H.265:
    • 3840 × 2160P30
    • 1920 × 1080P60
    • 1280 × 720P60
    • 1024 × 576P60
    • 800 × 448P60

IP Streaming

• Video Encoding: H.264 / H.265
• Bitrate Control: Variable Bitrate (VBR), Constant Bitrate (CBR)
• Bitrate Range: 1024 Kbps ~ 122800 Kbps
• Network Port Speed: 1000M
• Protocol: NDI®HX3, SRT, HTTP, RTSP, RTMP, ONVIF, VISCA over IP (TCP & UDP), VISCA, PELCO P/D, SSDP, FreeD, NTP, RTP Multicast, WebRTC

Pan/Tilt Movement

• Preset: Remote controller: 10; Serial port: 256; Accuracy: 0.1°
• Pan Rotation Angle: -170° ~ +170°
• Tilt Rotation Angle: -30° ~ +90°
• Pan Rotation Speed: 0.1° ~ 120°/s
• Tilt Rotation Speed: 0.1° ~ 80°/s

I/O Interface

• Control Port:
  • RS232 (RS485)
  • NDI® HX
• Video Port: NDI®HX3, HDMI, USB Type-C (HDMI Model)
• Audio Port: Stereo 3.5 mm line-in
• Tally: Supported
• POE+: Supported
• Daisy Chain: Supported

General

• Input Voltage: DC12V, POE+ (IEEE 802.3at)
• Operating Temperature: -10°C ~ 50°C
• Operating Humidity: ≤80%
• Dimensions (L × W × H): 220 × 190 × 173 mm
• Net Weight: 1.5kg (3.3lbs)
• Color: Black / White
