Description

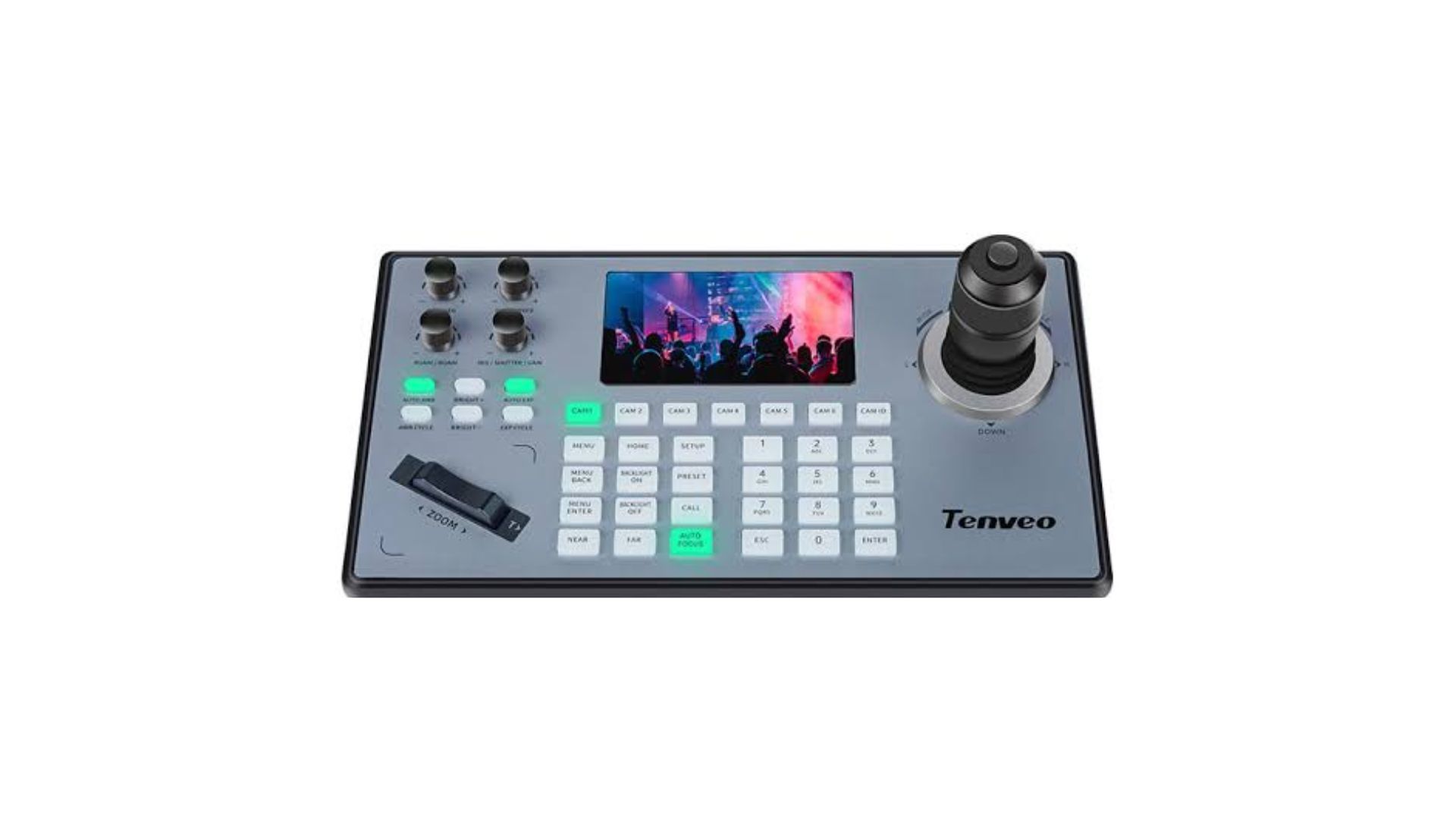

Tenveo KB200 Pro PTZ joystick controller is equipped with a variable-speed 4D joystick and a 5-inch LCD screen for real-time monitoring and image decoding, allowing you to precisely control the camera’s pan, tilt, and zoom functions for a more professional video production experience. It supports VISCA, VISCA Over IP, PELCO-P/D, ONVIF, and NDI protocols, with RS232, RS422/RS485, and Ethernet connections. The controller supports PoE for simplified installation and can control up to 255 PTZ cameras.

Product Features

5 Inch LCD Screen – Supporting Real-Time Monitoring And Image Decoding

The 5-inch TFT LCD screen supports real-time video monitoring and image decoding with a resolution of 720*1280 pixels. It provides a convenient solution for applications requiring compact, high-quality visual monitoring.

4D Variable-Speed Joystick For Precise Control

The controller features a high-quality 4D variable-speed joystick with 8-direction movement, providing smooth and precise control over camera pan, tilt, and zoom functions. The ergonomic design and responsive controls enable efficient real-time operation with low latency.

PoE Support

Supports PoE (Power over Ethernet), allowing power and data transmission through a single Ethernet cable. This simplifies installation and reduces the amount of cabling required when controlling cameras across a network.

Multiple Control Protocols & High Compatibility

Supports multiple control protocols, including VISCA over IP, NDI Control, Pelco-P, Pelco-D, ONVIF, and Sony VISCA Compatible. The controller supports RS232, RS422/RS485, and RJ45 Ethernet connections, providing flexible compatibility with a wide range of PTZ camera systems.

Comprehensive Camera Control

The KB200 Pro provides comprehensive camera control functions, including exposure selection, white balance, backlight control, focus mode selection, and auto/manual focus. It can also display real-time status information for white balance, iris, gain, shutter, and focus.

Wide Range of Applications

The PTZ camera controller is designed for broadcast, professional video conferencing, live streaming, and other applications requiring precise remote camera control. It can control up to 255 PTZ cameras through LAN or serial interfaces, making it suitable for various professional video production and conferencing environments.

Specifications

• Model No: KB200 Pro
• Chip: HIS3536DV100
• System: Linux
• Max Equipment: 999
• Decoding: H.265, H.264
• Resolution: Max 1080P for 1 channel: 1920*1080@30fps
• Protocol: VISCA over IP, NDI Control, Pelco-P, Pelco-D, Sony VISCA Compatible, ONVIF
• Camera Control:
  • Exposure Selection: Yes
  • White Balance: Yes
  • Backlight Control: Yes
  • Display Status of WB, Iris, Gain, Shutter, Focus: Yes
  • Focus Model Selection: Yes
  • Auto Focus/Manual Focus: Yes
• User Interfaces:
  • Display: LED
  • Speed Control: Yes
  • Zoom Rocker: Yes
  • Joystick Zoom Ring: Yes
  • Programmable Function Buttons: 6
• Joystick: 4D
• Output: RS422 (Reserved), RS232 (Development Port), RJ45
• Accessories: Knob, Silicone Button
• Beep: On/Off
• Display: TFT LCD 720*1280
• Max Camera Control: Max 255 with multiple protocols including NDI/IP
• Power Consumption: <5W
• Power: DC 12V-2A, POE
• Operating Temperature: -10°C~55°C / 14°F~131°F
• Operating Humidity: 20%~80%
• Storage Temperature: -10°C~60°C / 14°F~140°F
• Storage Humidity: 0~90%
• Dimensions: 321*181*116mm
• Dimensions With Packaging: 354*221*135mm
• Weight: 1.83kg (Net) / 2.45kg (Gross)
