Description

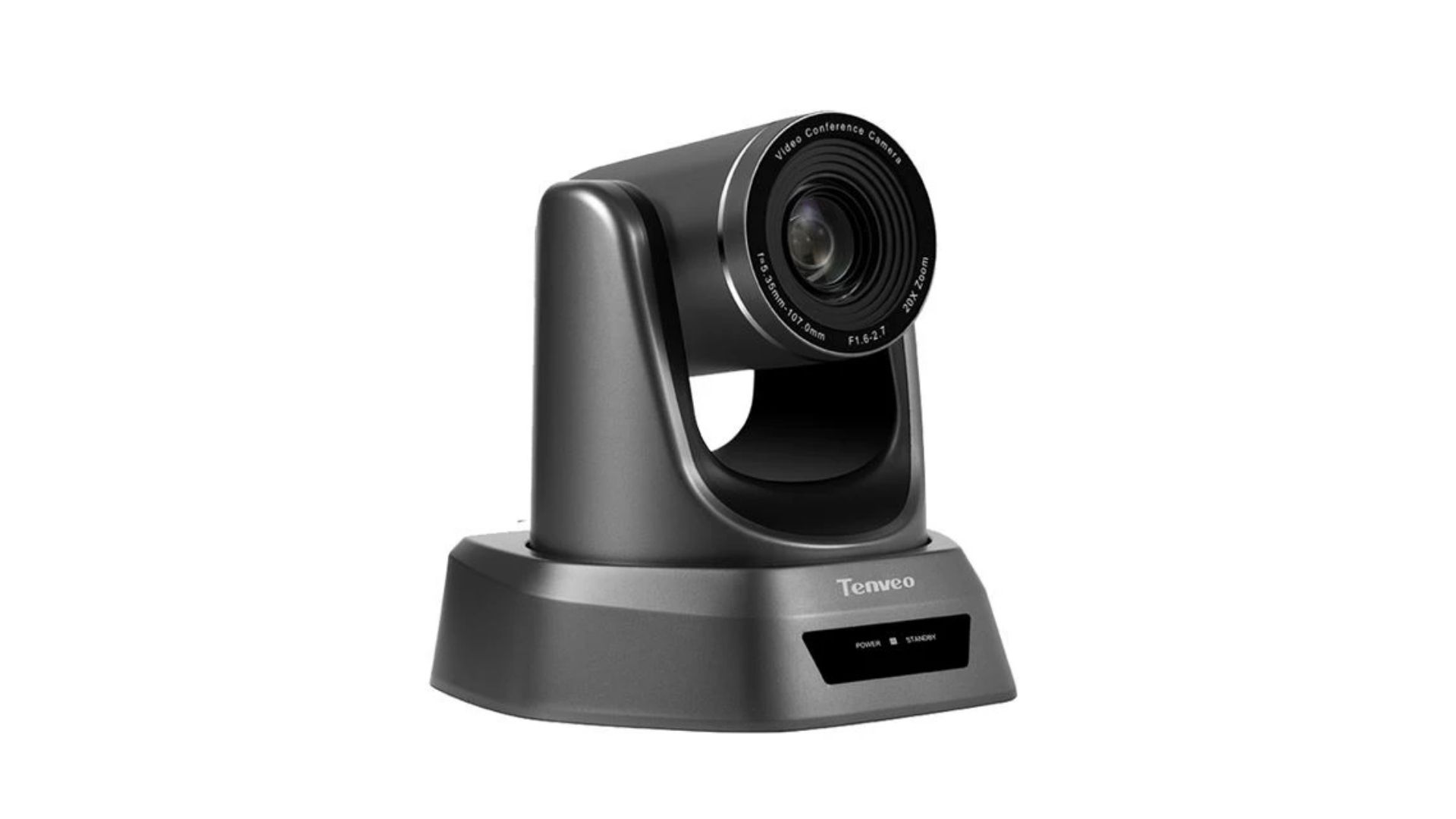

The TEVO-NV20A Pan/Tilt/Zoom (PTZ) camera has USB2.0, HDMI, SDI 3 Video outputs.
It is equipped with a 1/3 inch HD Color CMOS and 2.38 Mega pixel Effective CMOS Sensor achieves 1080p & 1080i@60 high quality images.

The superior 20x optical zoom lens, excellent white balance, and exposure mode delivers a clear image even in low light or the extreme contrast of brightness and darkness in a conference room. The camera covers a wide shooting angle and achieves high-speed, quiet, and precise positioning with smooth PTZ operations.

20x zoom with HDMI & SDI ideally suited for large size conference rooms, it connects with any Web Conferencing system in Windows and MAC OS.

Product Details

ACCURATE, SMOOTH AND SILENT PTZ MOVEMENT

Along with 350 degree pan & 90 degree tilt rotation at adjustable speed and fast & accurate focus to capture any view in conferencing space.

AS EASY AS PLUG AND PLAY

Video output: USB2.0 Plug and play, HDMI and SDI. Anyone can easily setup this SDI Camera and control conferencing/Live Streaming.

SUPERIOR QUALITY FULL GLASS LENS

Equipped with a 1/3 inch HD CMOS with 2.38 mega pixel and Full HD 1080p output resolution & a high dynamic image of 60 fps.

20X OPTICAL ZOOM 54.7° FOV

Using multi-element 20x lossless optical zoom lens, with 54.7 degree wide angle FOV.

MULTIPLE INSTALLATIONS

Support multiple mount way: available to install on desk, monitor, wall, tripod or up-side down in-ceiling.

COMPATIBLE WITH MAC® AND PC

Simply connect a PC or Mac® to conduct a meetings within the user’s own familiar computing environment. Compatible with Mac and PC.

System Requirements:
Windows 7, 8.1 or 10, Mac OS X 10.7 or higher, Android, Linux.

Compatible With All Popular Applications And Cloud Systems

• Skype
• Lync
• Hangouts
• Webex
• Zoom
• GoToMeeting
• BlueJeans

Product Specifications

• Product No.: TEVO-NV20A
• Image Sensor: 1/3 inch HD Color CMOS
• Effective pixel: 2.38 mega pixel (16:9)
• Horizontal Resolution: 1080P60/50/30/25, 1080I60/50, 720P60/50
• Signal standard: NTSC/PAL
• Zoom: 20x optical zoom
• Minimum Illumination: 0.5Lux at F2.0
• Focal length: F=5.5mm (wide)-110mm (tele)
• Horizontal Angle: Near-end 54.7°～Far-end 3.3°
• Gain control: Auto
• Focus: Auto
• White Balance: Auto
• SNR ratio: ≥50dB
• Shutter speed: 1/8 to 1/10,000s (auto)
• Preset position:
  • IR remote control supports 9 presets
  • PELCO Protocol supports 256 presets
• Pan/Tilt movement range: Pan: ±175° (max speed 80°/S), Tilt: -35°～+55° (max speed 60°/S)
• Control terminal: USB, RS-232, RS485
• Control Protocol: VISCA, PELCO-D, PELCO-P (RS-232, RS485)

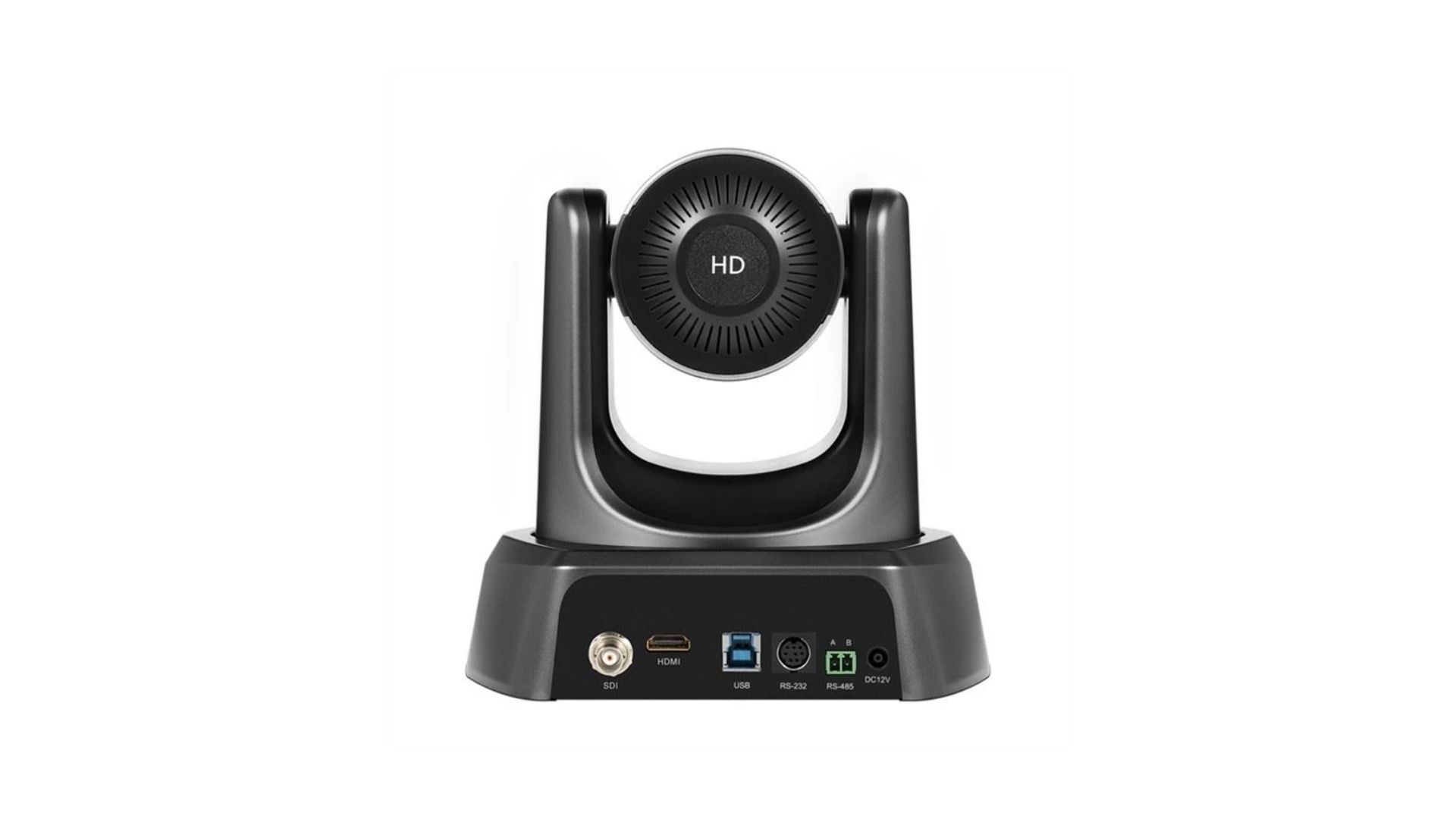

• Video output: USB, HDMI, SDI, IP
• Video Compression Format: MJPG
• Noise Reduction: 2D/3D
• Work temperature: -10°C～50°C
• Storage temperature: -20°C～60°C
• Baud rate: 38400/9600bps
• Decoder: Built-in
• Address set: 1~256
• Installation: Support desktop, tripod, wall mount and ceiling mount
• Power supply: DC12V/2A
• Power consumption: 12 W
• Net weight/Gross weight: 1.5kg/2.85kg
• Dimension (L×W×H): 260×175×180 mm / 296×255×218 mm (before/after packing)
• Accessories: DC 12V power adaptor, IR remote control, manual, USB2.0 cable, ceiling brackets & screws.

What’s In The Box

• 1 X Camera
• 1 X DC 12V Power Adaptor
• 1 X IR Remote Control
• 1 X Manual
• 1 X USB 2.0 Cable
• 1 X Brackets & Screws
