Description
MAXHUB UC P25
4K UHD PTZ Video Collaboration Camera
Best in Class
Phenomenal 4K UHD PTZ camera quality meets state-of-the-art remote control capabilities in the UC P25, for a natural, seamless, and organic experience of a video collaboration camera.
This is the top-performing Pan-Tilt-Zoom (PTZ) video collaboration camera from MAXHUB.
Premium Visuals
Unrivaled UHD imaging technology delivers vibrant videos for every video collaboration. The UC P25 8MP camera highlights every member of your meeting in crisp detail, and the192x zoom means everyone looks clear no matter how many people join the collaboration.
- Sony 1/2.5" CMOS sensor
- 8MP camera
- 12X optical zoom
-
16X digital zoom
Complete Clarity. Anywhere.
Illuminate the possibilities with MAXHUB UC P25. Our state-of-the-art algorithms could easily maintain color and detail in dim lighting. The WDR neutralizes glare and shadows, creating a balanced image in complex lighting conditions.
Intelligent. Adaptive. Versatile.
Whisper-quiet and smooth, the adaptive 4k UHD PTZ camera within the UC P25 video collaboration camera captures video quickly and precisely, for distraction-free meetings. A sensational 71° field of view keeps every team member visible, while the image flip option helps adjust your camera to match your mounting choice.
- Pan ±170° / Tilt ±30° / HFoV 71°
- Image flip
- 0.1° preset accuracy
- 255 preset positions
Perfect Views, Always
Adapt your meeting to suit your needs. Remote control functionality means you can adjust your focus in seconds at the touch of a button. The UC P25 video collaboration camera can integrate seamlessly into your conferencing space.
Easy to control
|
|
IR Controller |
|
Web / Software |
|
|
Serial Controller |
|
UVC Control |
Support VISCA, PELCO, UVC, ONVIF protocols

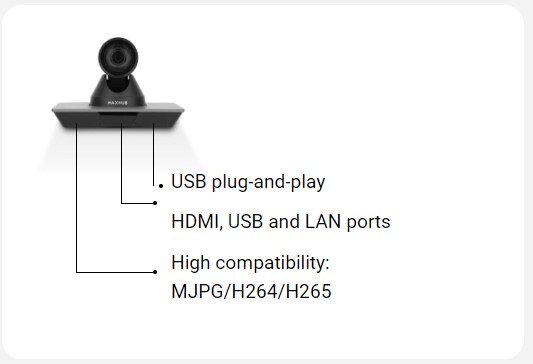

Plug-and-Play Simplicity
The best webcam for video conferencing shouldn’t be complicated. The UC P25 provides an array connectivity options that work with various video applications. This plug-and-play simplicity enables you to set up the video collaboration camera instantly.
All in One Cable
The UC P25 video conferencing camera delivers a one-cable power over Ethernet solution to reduce the overall cost of installation, and allows for more flexible deployment. UC P25 video conferencing camera camera is able to stream on popular streaming platforms such as YouTube and Facebook Live.
Premium Peace of Mind
Never miss out on a crucial meeting. The powerful UC P25 video conferencing camera comes with an industry first 3-Year Hot Swap Warranty, for absolute peace of mind. With phenomenal quality and a fantastic warranty, you can meet with confidence.
SPECIFICATIONS
Camera
-
Video Format :
4K@30fps, 4K@25fps, 4K@29.97fps, 1080P@60fps, 1080P@50fps, 1080I@60fps, 1080I@50fps, 1080P@30fps, 1080P@25fps, 1080P@59.94fps, 1080I@59.94fps, 1080P@29.97fps, 720P@60fps, 720P@59.94fps , 720P@50fps - Sensor : 1/2.5 inch, CMOS, Max E!ective Pixel: 8.51M
- Optical Zoom : 12x (f = 4.4mm ~ 52.8mm, F1.8 ~ F2.6)
- Digital Zoom : 16x
- Minimum Illumination : 0.5 Lux @ (F1.8, AGC ON)
- White Balance : Auto, Indoor, Outdoor, One Push, Manual
- Backlight Compensation : Support
- Digital Noise Reduction : 2D & 3D Digital Noise Reduction
- Horizontal Angle of View : 71°
- Vertical Angle of View : 42.7°
- Diagonal Angle of View : 82.8°
- Horizontal Rotation Range : ±170°
- Vertical Rotation Range : ±30°
- Pan Speed Range : 1.6°/s ~ 76°/s
- Tilt Speed Range : 0.5°/s ~ 15°/s
- Number of Preset : 255
- Preset Accuracy : 0.1°
-
Video Format :
3 H.264 AVC : max to 2160P@30fps
3 H.264 SVC : max to 2160P@30fps
3 MJPEG: max to 2160P@30fps
USB Features
- Operate System : Windows 7, Windows 8, Windows 10,Mac OS X, Linux, Android
- Encode Format : H.264 / MJPEG
- Video Format : H.264 up to 2160p@30pfs , MJPEG up to 2160p@30pfs
- USB Audio : Support
- USB Video Communication Protocol : UVC 1.1~1.5
- UVC PTZ : Support
Network Features
- Video Compression : H.264 / H.265 / MJPEG
- Video Stream : First Stream, Second Stream
- First Stream Resolution : 3840×2160, 1920×1080, 1280×720,1024×576
- Second Stream Resolution : 720×480, 720×408, 640×480, 640×360, 480×320, 320×240
- Audio Compression : AAC/G711A
- Audio Bit Rate : 96Kbps, 128Kbps
- Protocols : TCP/IP, HTTP, RTSP, RTMP/RTMPS, ONVIF, DHCP, SRT, Multicast
Input/Output Interface & Control
- Network Interface : 1 x RJ45: 10/100/1000M Adaptive Ethernet Port
-
Control Interface :
1 x RS232 IN，Protocol: VISCA / Pelco-D / Pelco-P
1 x RS232 OUT，Protocol: VISCA
1 x RS485，Protocol: VISCA / Pelco-D / Pelco-P - Audio Interface : 1 x LINE IN: 3.5mm Audio Interface
- HDMI Interface : 1 x HDMI: Version 1.4
- 3G-SDI Interface : 1 x 3G-SDI: BNC type
- USB Interface : 1 x USB 2.0（Type-B）: Up to 4K@30fps compressed video and 1080P original video can be output
- Power Jack : JEITA type (DC IN 12V)
Physical Specifications
- Input Voltage : DC 12V
- Current Consumption : 1.0A (Max)
- Operating Temperature : -10°C ~ 40°C
- Storage Temperature : -40°C ~ 60°C
- Power Consumption : 12W (Max)
- Camera Dimension : 238mm x 167mm x 149mm
- Camera Net Weight : 1.35Kg
Package Contents
- UC P25 Camera : 1
- USB 3.0 Cable (2m) : 1
- Remote Control : 1
- Mounting Screw Set : 1
- Lens Cover : 1
- Power Adaptor : 1
- Wall-mount bracket : 1
- User Manual : 1
Compatible Application
-
Support Major VC Software:
ZOOM, Microsoft® Teams, Google Meet, Google Hangouts, Cisco WebEx®, RingCentral, etc
Warranty
- Camera : 3 Years
- Accessories : 1 Year
