Description
Intuitive Multi-touch Experience

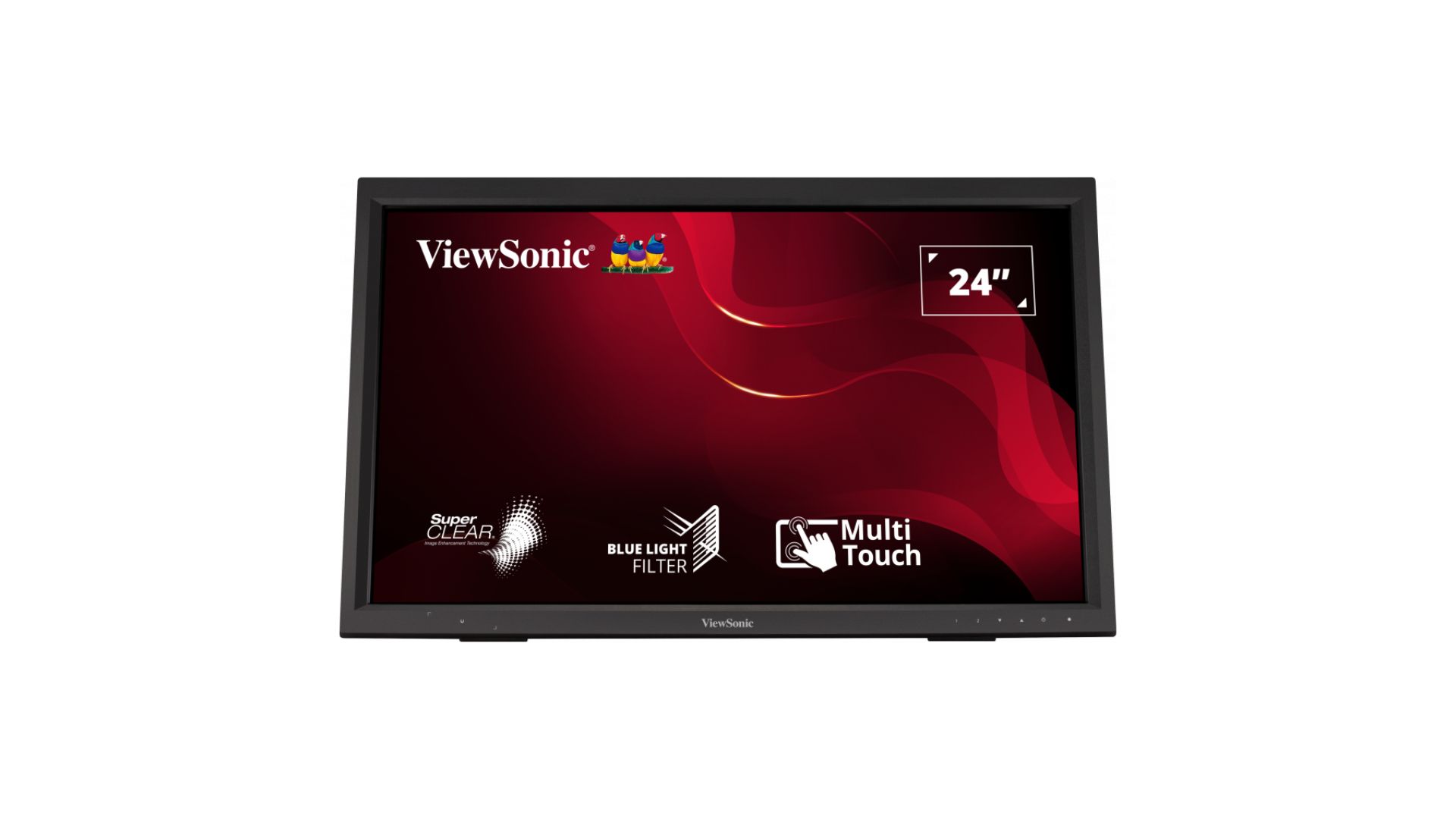

An infrared touchscreen that can detect up to 10 points of contact under Windows compared to optical touchscreens. The TD2423 delivers an intuitive multi-touch experience with every tap, pinch, and swipe with the finger touch, gloved touch, and stylus inputs.
*The stylus pen only shown for reference and excluded from the package.
Operating System Support
This monitor supports the main operating systems being Windows, macOS, Android, Chrome OS, Linux and Raspberry Pi.
*Learn more about multi touch for macOS
*TD2423 does not support USB Type-C for output video, audio, and touch feedback through mobile phone and tablet on Android OS, but it can support other Android devices.
Simple and Safer Way to Interact
This monitor can be operated by stylus* and gloved hands, which improves hygiene and is effective for selection, dragging and drawing. What’s more, there is a magnetic pen placeholder on the base.
*The stylus is an optional accessory. The minimum diameter of the stylus pen tip must be at least 6mm or above.
Anti-scratch Touchscreen
With a built-in 7H hardness screen, it’s resistant to surface damage caused by sharp objects.

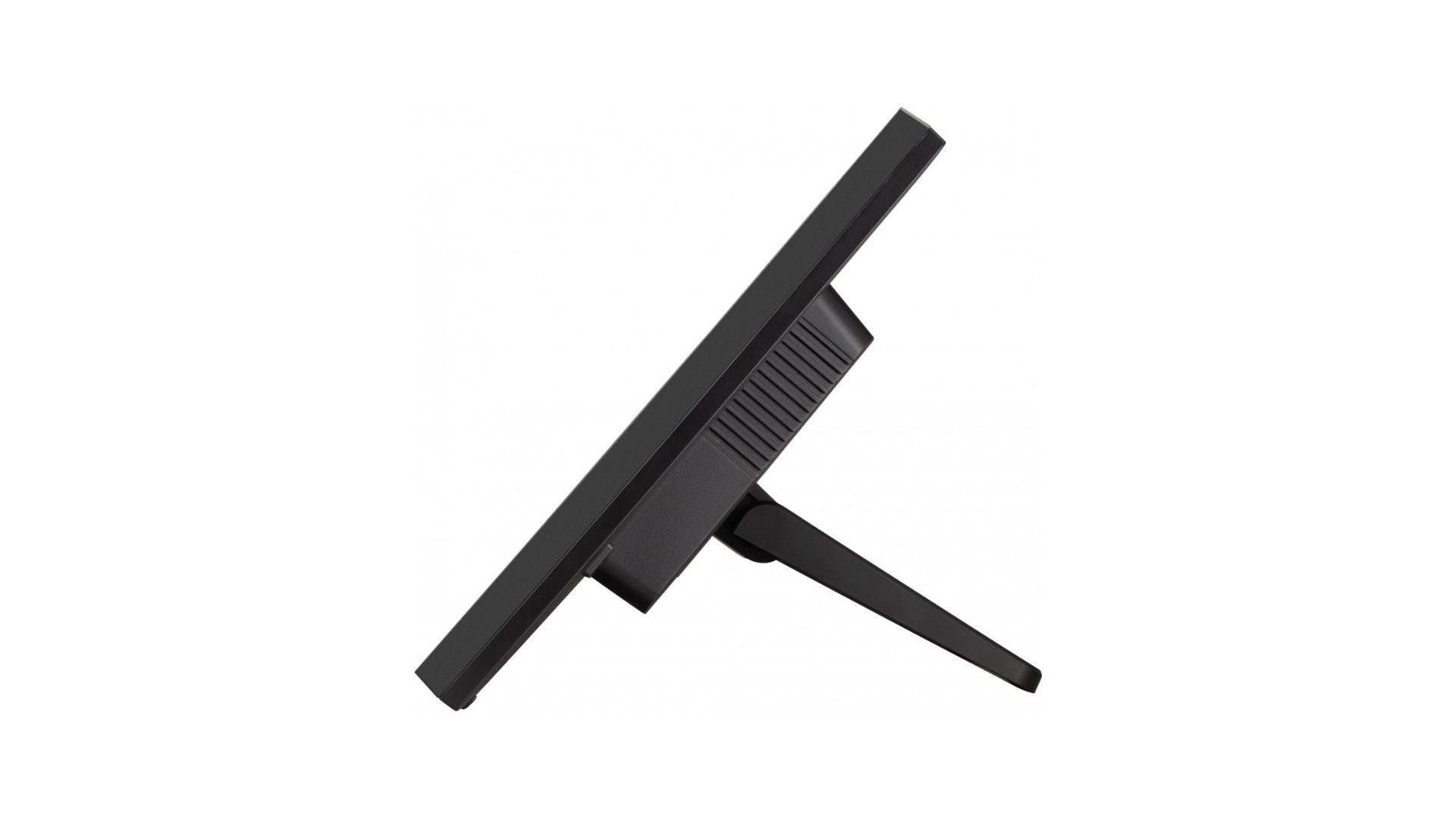

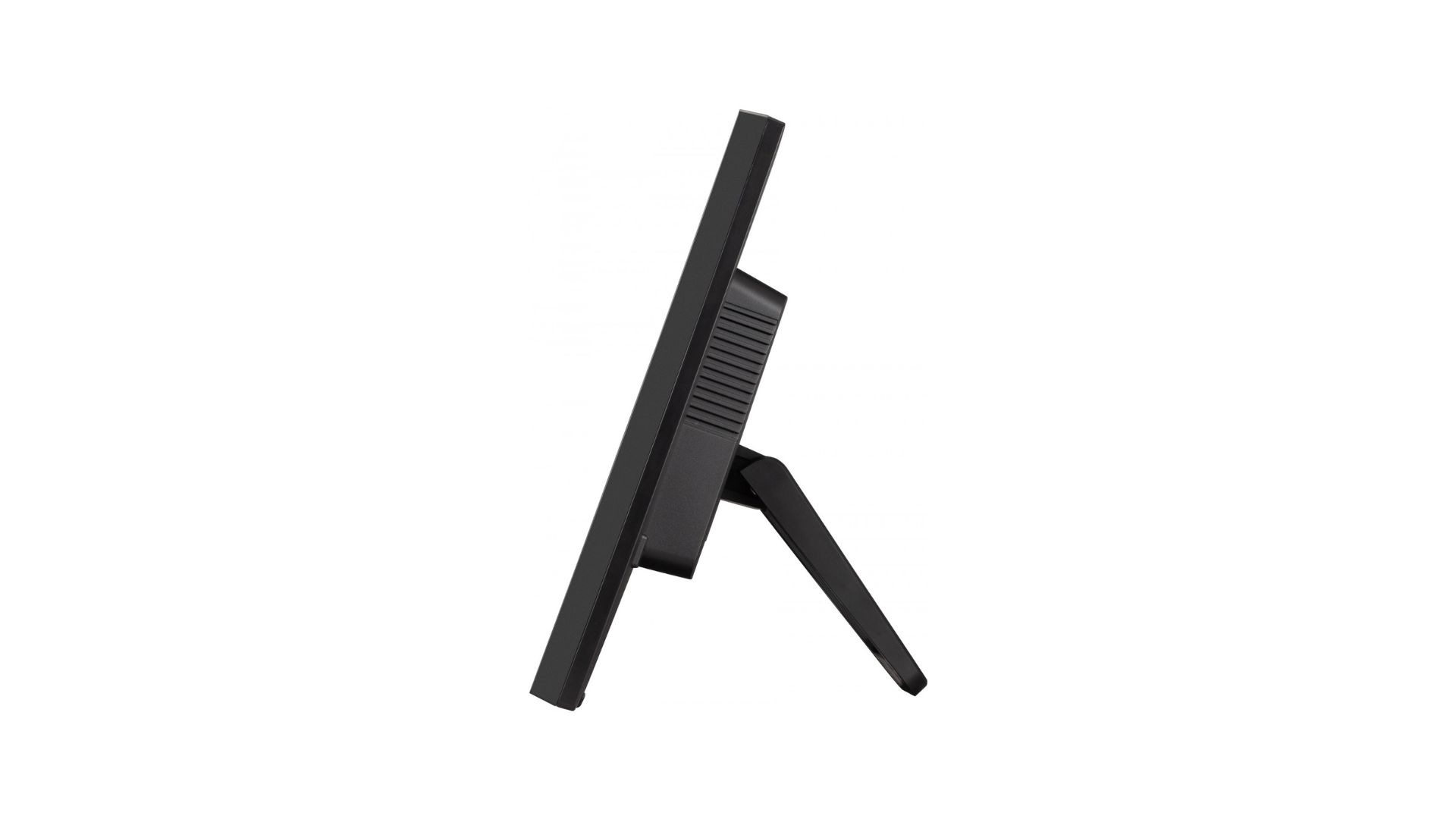

Adjustable Tilt
This monitor includes an adjustable tilt, which allows you to easily tilt back up to 40-degrees, making it a good fit for anyone.
Clear Images
This monitor features Full HD 1920×1080 resolution to benefit you with greater image details and more displayable on-screen contents.
Dual Integrated Speakers
With built-in 2-watt speakers, this monitor provides you a better audiovisual experience.
Enhanced Viewing Comfort
This monitor is built with Flicker-Free technology and a Blue Light Filter to reduce eye fatigue after a long day of use.
Certified Environmental Sustainability
The TD2423 is an ENERGY STAR and EPEAT-certified product that can save on energy costs while reducing greenhouse gases.
*Energy savings may vary based on actual usage and other factors.
*Certifications and safety regulations are dependent on the purchase area.

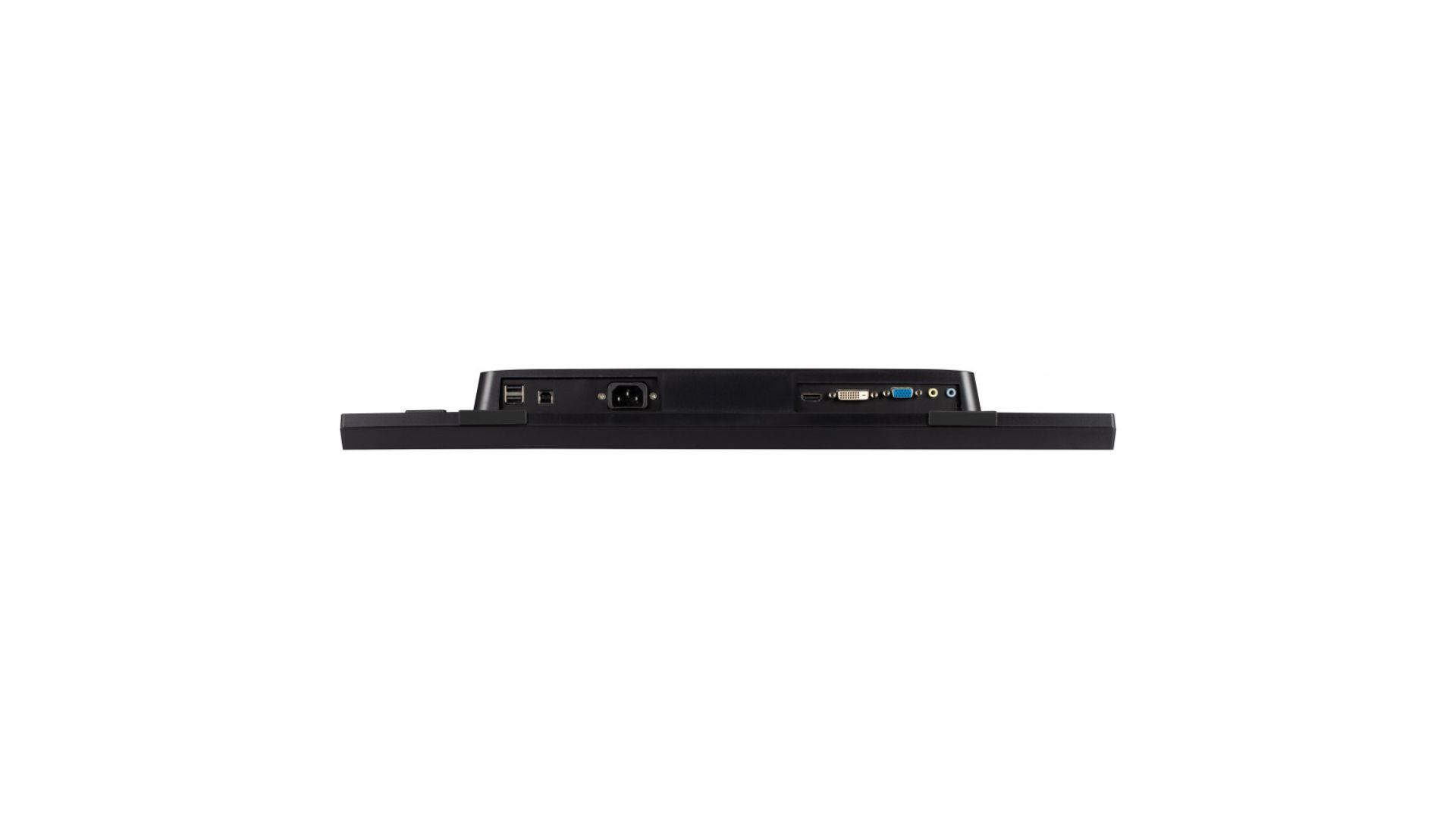

Dimension & I/O Ports
- Menu Control Panel
- USB Down Stream x 2
- USB UP Stream
- AC In
- HDMI
- VESA Compatible
(Wall Mount 100 x 100mm) - Earphone Out
- Audio In
- VGA
- DVI
Specifications
- Display:
- Display Size (in.): 24
- Viewable Area (in.): 23.6
- Panel Type: VA Technology
- Resolution: 1920 x 1080
- Resolution Type: FHD (Full HD)
- Static Contrast Ratio: 3,000:1 (typ)
- Dynamic Contrast Ratio: 20M:1
- Light Source: LED
- Brightness: 250 cd/m² (typ)
- Colors: 16.7M
- Color Space Support: 8 bit (6 bit + Hi-FRC)
- Aspect Ratio: 16:9
- Response Time (Typical GTG): 7ms
- Response Time (GTG w/OD): 7ms
- Response Time (Typical Tr+Tf): 25ms
- Viewing Angles: 178º horizontal, 178º vertical
- Backlight Life (Hours): 40000 Hrs (Min)
- Curvature: Flat
- Refresh Rate (Hz): 75
- Low Blue Light: Software solution
- Flicker-Free: Yes
- Color Gamut: NTSC: 72% size (Typ), sRGB: 104% size (Typ)
- Pixel Size: 0.272 mm (H) x 0.272 mm (V)
- Touch Screen: IR, 10-point multi-touch
- Surface Treatment: Glossy, Hard Coating (7H)
- Cover Glass Thickness: 1.85mm
- Compatibility:
- PC Resolution (max): 1920×1080
- Mac® Resolution (max): 1920×1080
- PC Operating System: Windows 7/8.1/10/11 certified; macOS tested
- Mac® Resolution (min): 1920×1080
- Connector:
- VGA: 1
- USB 2.0 Type A: 2
- USB 2.0 Type B: 1
- 3.5mm Audio In: 1
- 3.5mm Audio Out: 1
- HDMI 1.4: 1
- DVI-D: 1
- Power in: 3-pin Socket (IEC C14 / CEE22)
- Audio: Internal Speakers: 2Watts x2
- Power:
- Eco Mode (Conserve): 11.5W
- Eco Mode (optimized): 13.5W
- Consumption (typical): 15.5W
- Consumption (max): 16.5W
- Voltage: AC 100-240V
- Stand-by: 0.5W
- Power Supply: Internal Power Supply
- Additional Hardware:
- Kensington Lock Slot: 1
- Cable Organization: Yes
- Controls:
- Physical Controls: 1, 2, Up, Down, Power
- On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall
- Operating Conditions:
- Temperature: 32°F to 104°F (0°C to 40°C)
- Humidity (non-condensing): 20% to 90%
- Wall Mount:
- VESA Compatible: 100 x 100 mm
- Input Signal:
- Frequency Horizontal: 24 ~ 82KHz
- Frequency Vertical: 50 ~ 75Hz
- Video Input:
Digital Sync: TMDS – DVI-D, TMDS – HDMI (v1.4)
Analog Sync: Separate/Composite/SOG – RGB Analog - Ergonomics: Tilt (Forward/Back): 20º / 40º
- Weight:
- Net (kg): 5.2
- Net Without Stand (kg): 4.7
- Gross (kg): 7
- Dimensions (WxHxD):
- Packaging (mm): 645 x 422 x 166
- Physical (mm): 571 x 348 x 101
- Physical Without Stand (mm): 571 x 348 x 61
- General: Regulations: cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM, GEMS, VCCI, PSE, BIS
- PACKAGE CONTENTS:
- TD2423 x1
- 3-pin Plug (IEC C13 / CEE22) x1
- HDMI Cable (v1.4; Male-Male) x1
- USB A/B Cable (v2.0; Male-Male) x1
- Audio Cable (Male-Male) x1
- Quick Start Guide x1
- Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
- Warranty: 3 years
- Power Management: Energy Star standards, EPEAT
