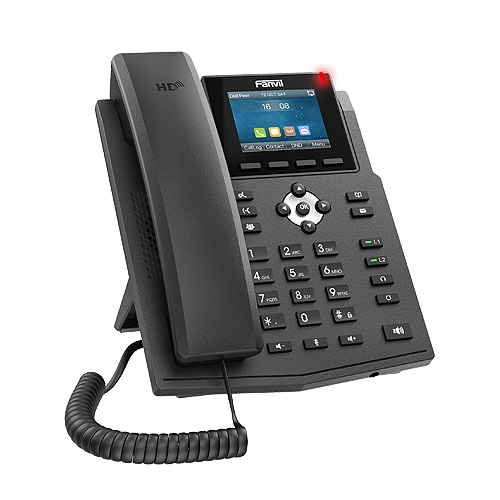

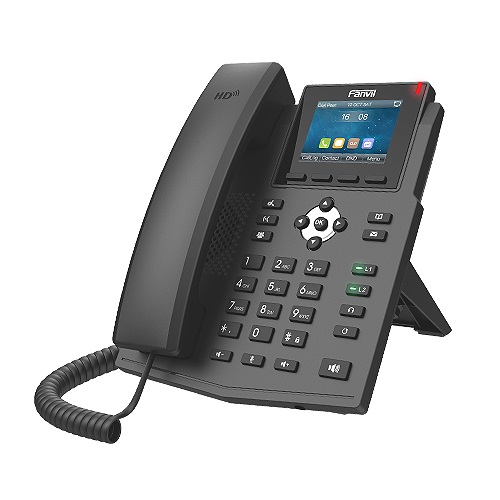

Fanvil X3SG New Version Color IP Phone

Fully Featured, Highly Efficent

As the Gigabit IP phone with a 2.8-inch color display, Fanvil X3SG new version has better improvement on elegant appearance as well as functional performance than Fanivl X3G. Fanvil X3SG new version possesses G.722 and Opus to deliver the users a crystal-clear audio enjoyment. Newly added function keys, increased SIP lines and supported EHS headset also make it an efficient business tool in office.

Fanvil X3SG IP Phone – Technical Specifications

Generic

• 4 SIP Lines
• HD Voice
• POE Enabled
• 2.8-inch color screen
• Handset(HS) / Hands-free(HF) / Headset mode
• Desktop stand / Wall-mounted (need an additional wall hanging parts)
• Optional external power supply

Call Functions

• Call out / answer / reject
• Mute / unmute (microphone)
• Call Hold / Resume
• Call Waiting
• Intercom
• Caller ID Display
• Speed dial
• Anonymous call (Hide Caller id)
• Call Forward (Always/Busy/No Answer)
• Call Transfer (Attended/Unattended)
• Call Parking/Pick-up (depending on server)
• Redial
• Do-Not-Disturb
• Auto-Answering (per line)
• Voice Message (with server)
• 3-way Conference
• Hot Line
• Hot Desking

Phone Functions

• Local Phonebook (1000 entries)
• Remote Phonebook (XML/LDAP, 1000 entries)
•  Call log (in/out/missed, 600 entries)
•  Black/White List Call Filter
•  Screen Saver
• Voice Message Waiting Indication (VMWI)
•  Programmable DSS/Softkeys
• Support Plantronics wireless headset (Through Plantronics APD-80 EHSCable)
• Support Jabra wireless headset (Through Fanvil EHS 20 EHS Cable)
• Support Recording (Through Server)
• Action URL / Active URI
• uaCSTA

Audio

• HD Voice Microphone/Speaker (Handset/Hands-free, 0~7KHz Frequency Response)
• Wideband ADC/DAC 16KHz Sampling
• HAC handset
• Narrowband CODEC: G.711a/u, G.726-32K, G.729AB
• Wideband CODEC: G.722, OPUS
• Full-duplex Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer
• DTMF: In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO

Networking

• Physical:  10/100/1000Mbps Ethernet, dual bridged port for PC bypass
• IP Configuration: Static / DHCP / PPPoE
• IP Mode : IPv4/IPv6/IPv4&IPv6
• Network Access Control: 802.1x
• VPN: L2TP (Basic Unencrypted) / OpenVPN
• VLAN
• LLDP
• QoS
• RTCP-XR (RFC3611),VQ-RTCPXR (RFC6035)

Protocols

• SIP 2.0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• PPPoE
• IPv6
• 802.1x
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR069

Deployment & Maintenance

• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP/OPT66/SIP PNP/TR-069
• Web Management Portal
• Web-based Packet Dump
• Configuration Export/Import
• Phonebook Export/Import
• Firmware Upgrade
• Syslog

Physical Specifications

• Main LCD x1 : 2.8-inch (320×240) Color Screen
• Keypad: 34 keys, including
  4 Soft-keys
  7 Functionkeys (Hold/Transfer/Conference/Phonebook/MWI/Headsets/Redial)
  4 Navigation keys
  2 Line keys (With LED Indicator Light)
  3 Volume Control keys, Up/Down/Mute(Microphone)
• 1 Hands-free
• HD Handset (RJ9) x1
• Standard RJ9 Handset Wire x1
• 1.5M CAT5 Ethernet Cable x1
• Back Rack x1
• Status Indicator Light x1 (Red)
• RJ9 Port x2: Handset x1, Headset x1
• RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
• Safety Keyhole x1
• DC Power Input: 5V/0.6A
• Power Consumption : Idle 0.9~1.65W, Peak 1.8~2.95W
• Working Temperature : 0 ~ 45
• Working Humidity : 10 ~ 95%
• Color : Black
• Desktop Stand (Angles 1) : 169×186.3×174.5 mm
• Desktop Stand (Angles 2) : 169×177.6×183.7 mm
• Wall-mounted : 169×115.6×212.5 mm
• Gift Box Dimensions : 274x215x68 mm
• Outer CTN Dimensions : 450x360x294mm (10PCS)
