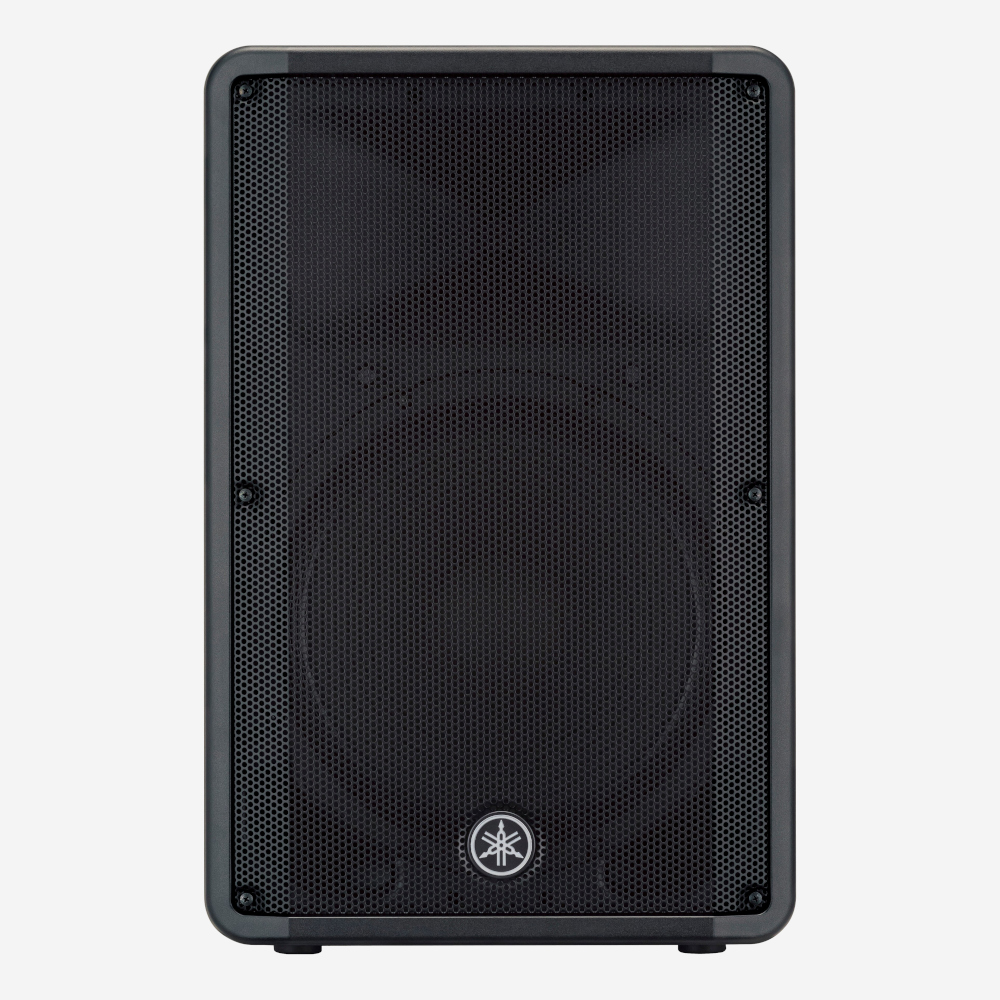

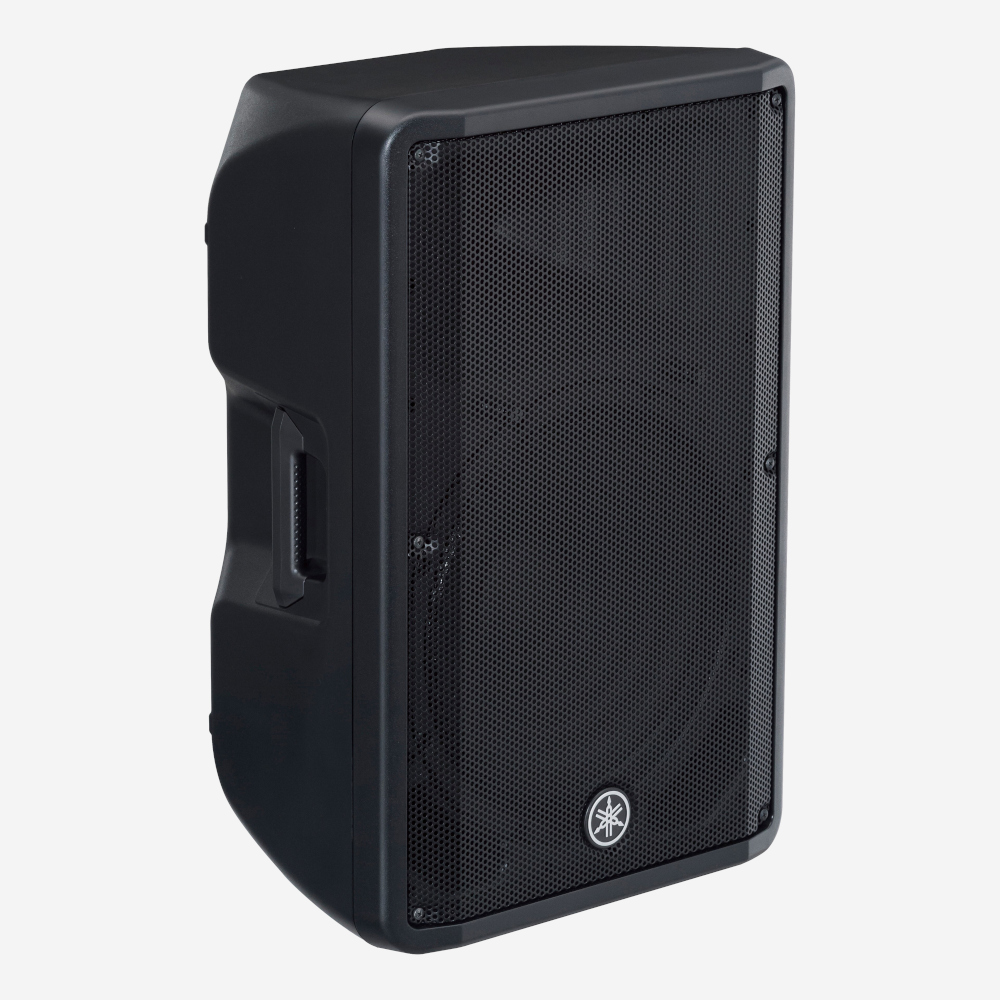

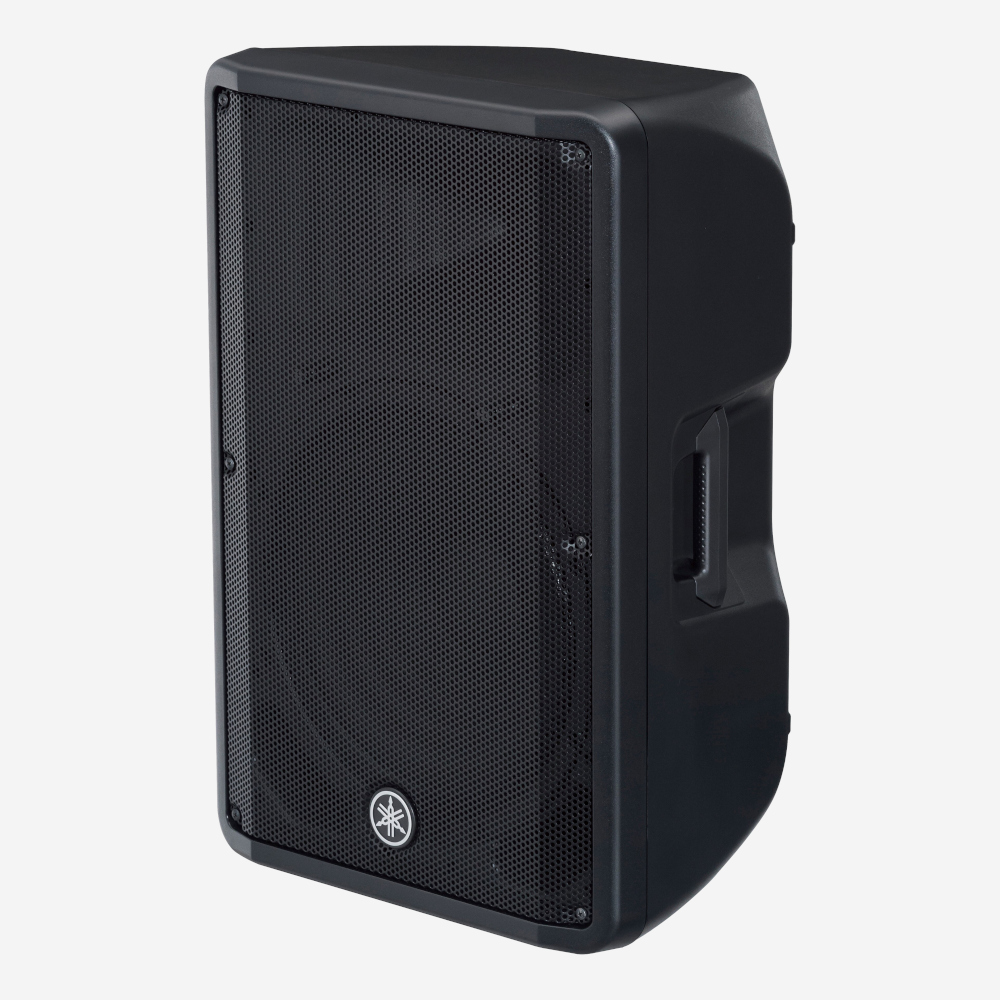

Description
Yamaha DBR15 achieves best-in-class SPL of up to132dB and delivers the lowest frequency in its lineup. The DBR15 delivers outstanding performance for the main front-of-house sound for the live performance or DJ events that require highly prominent low and more power.
Features
High-Efficiency 1000W Class-D Amplifiers
The DBR’s lightweight, high performance Class-D amplifier is capable of producing 1000W* of power, achieving an SPL of 131dB, delivered with remarkable clarity and dynamic characteristics.
Custom Designed Transducer
The high power output woofers deliver well-defined, powerful bass with minimal distortion, while the 1.4″ precision compression driver* produces accurate mid-range and high frequencies.
A Rugged, Highly Portable Cabinet

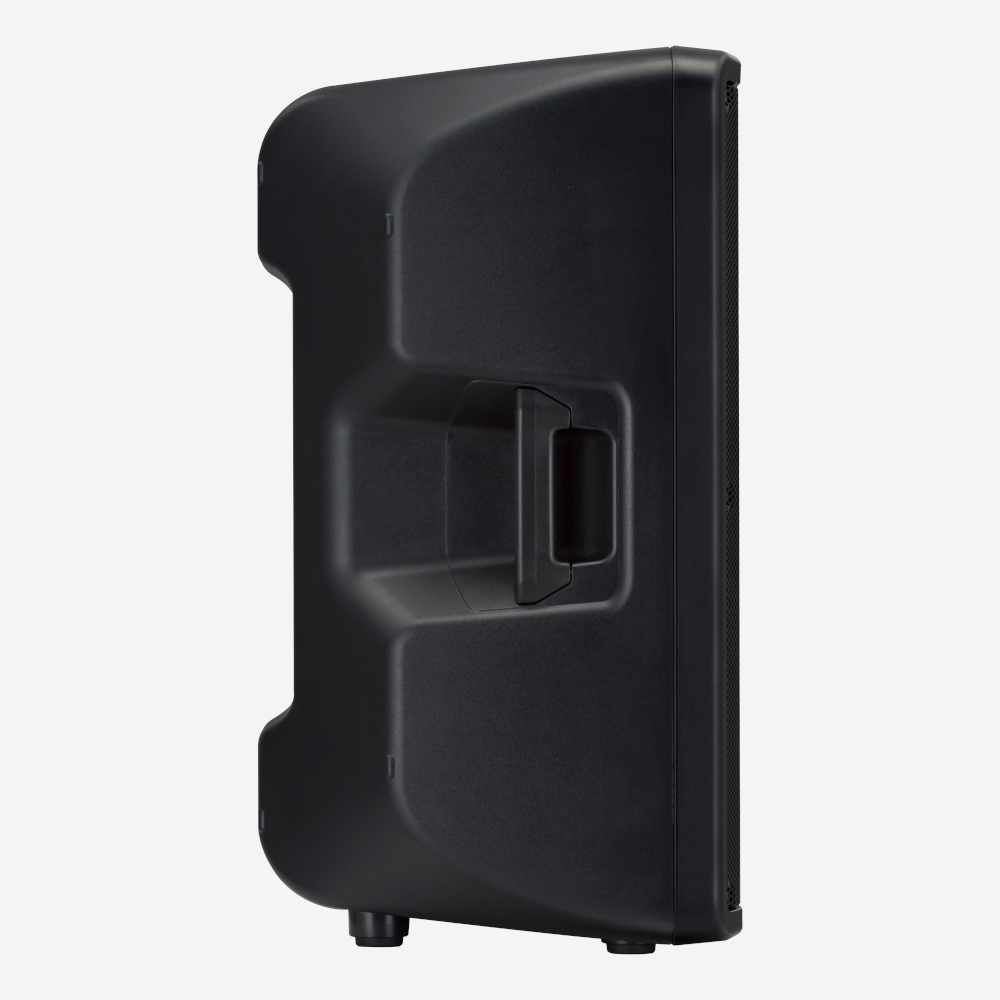

DBR Series speakers feature a compact, lightweight, and durable plastic cabinet which offers the highest level of portability of all Yamaha powered speakers. The sleek steel grille bolsters cabinet durability and protects the internal components while a newly designed ergonomic handles provide effortless transportation and system setup.
Easy-to-use Onboard 2-Channel Mixer
DBR Series speakers have two input channels. CH1 has a combo jack which accepts both XLR and TRS Phone allowing for either Mic or Line level input signals. CH2 offers two input options; a combo jack that accepts XLR or TRS Phone, and an RCA pin jack for input from CD players or other stereo line-level sources. The onboard mixer allows you to select either CH1+2 MIX to mix the signal of CH1 and CH2, or CH1 THRU to pass the signal from CH1 only.
Smart Enclosure Design for Floor Monitoring

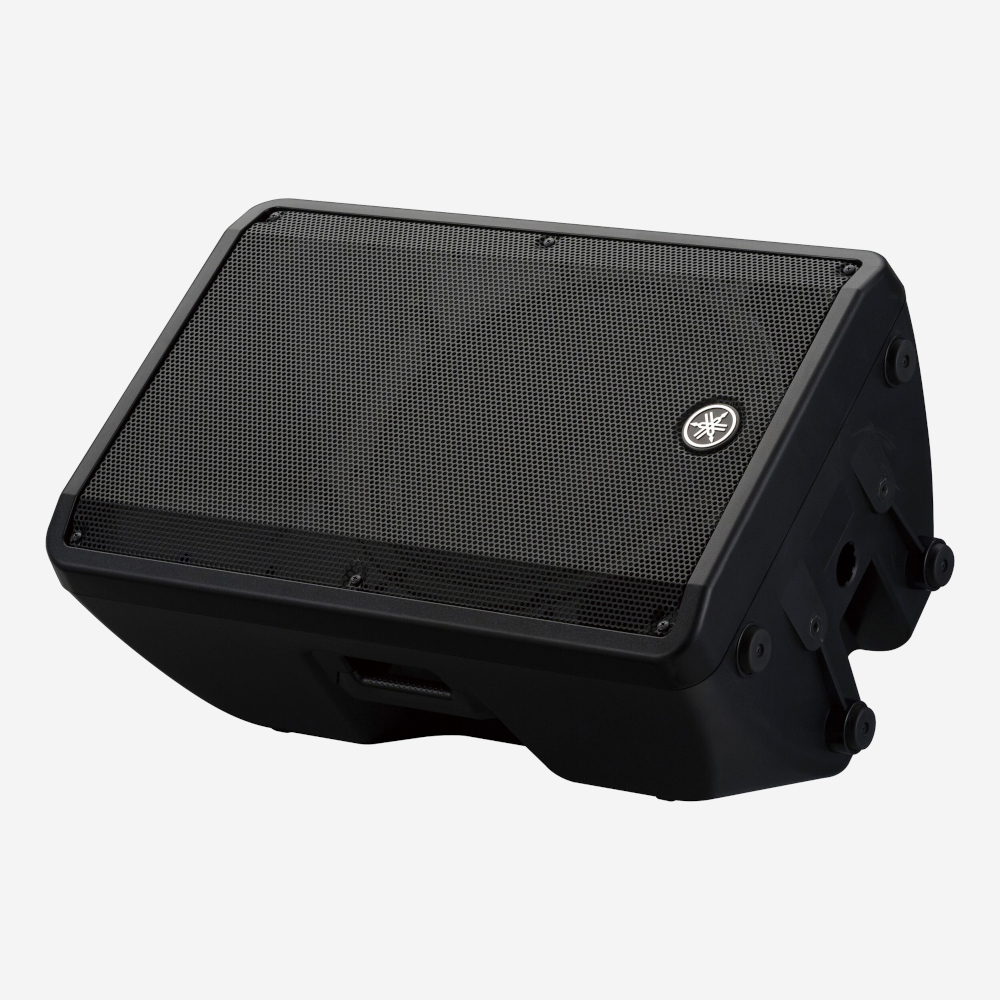

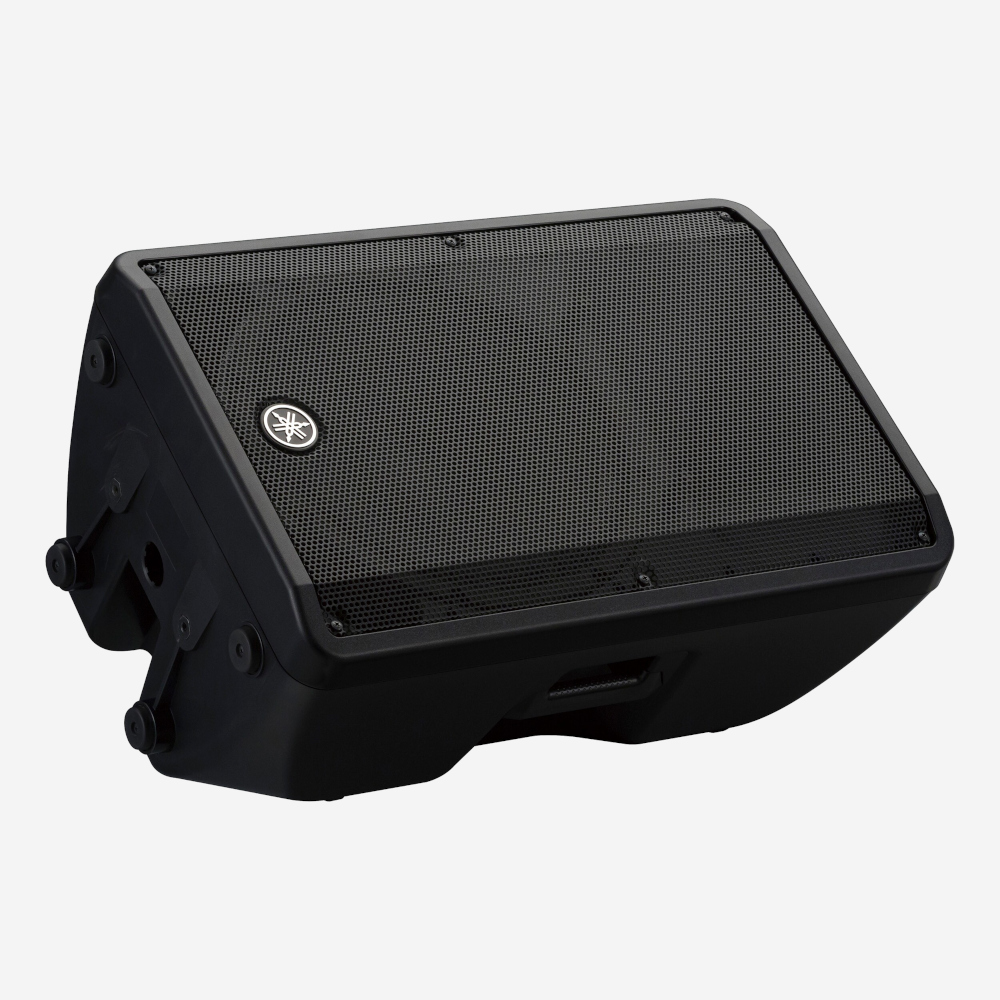

DBR Series speakers feature an optimized 50°wedge angle for floor monitoring. In addition the DBR12 and DBR15’s symmetrical shape allows for effortless configuration of a mirror-mode floor monitoring system in either symmetrical or stereo sound field setups.
Rigging Points for Installation Applications
DBR loudspeakers come equipped with M8 rigging threads, allowing for rigged applications with optional speaker brackets or standardized eye-bolts.
*Speaker brackets and eye-bolts are not included.
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | 2-Way Bi-Amp Powered Speaker, Bass-Reflex |
| LF Driver | 15″ cone |
| LF Voice Coil | 2.5″ |
| LF Magnet | Ferrite |
| HF Driver | 1″ throat compression driver |
| HF Diaphragm | 1.4″ |
| HF Magnet | Ferrite |
| Frequency Response (-10 dB) | 50 Hz–20 kHz |
| Coverage | H90° × V60° |
| Crossover | 2.1 kHz FIR-X Tuning™ |
| Crossover Type | Linear Phase FIR Filter |
| Dynamic Output | 1000 W (LF 800 W + HF 200 W) |
| Continuous Output | 465 W (LF 400 W + HF 65 W) |
| Maximum SPL | 132 dB SPL |
| Input 1 | Combo ×1 |
| Input 2 | Combo ×1 + RCA Pin ×2 |
| Output | XLR3-32 ×1 |
| Output Function | CH1 Parallel Through or CH1+CH2 Mix |
| DSP | D-CONTOUR: FOH/MAIN, MONITOR, OFF |
| Cooling | Fan cooling, 4 speeds |
| Power Consumption | 74 W (1/8 Power), 18 W (Idle) |
| Cabinet Material | Plastic |
| Finish | Black |
| Handles | Side ×2 |
| Rigging/Installation | Bottom ×2, Rear ×1, M8-compatible |
| Pole Socket | 35 mm |
| Floor Monitor Angle | 50° |
| Dimensions (W × H × D) | 455 × 700 × 378 mm |
| Net Weight | 19.3 kg |
| Optional Accessories | BBS251, BCS251, BWS251-300, BWS251-400 |
What’s Included
- Yamaha DBR15 Powered Loudspeaker
- Owner’s Manual
