Description

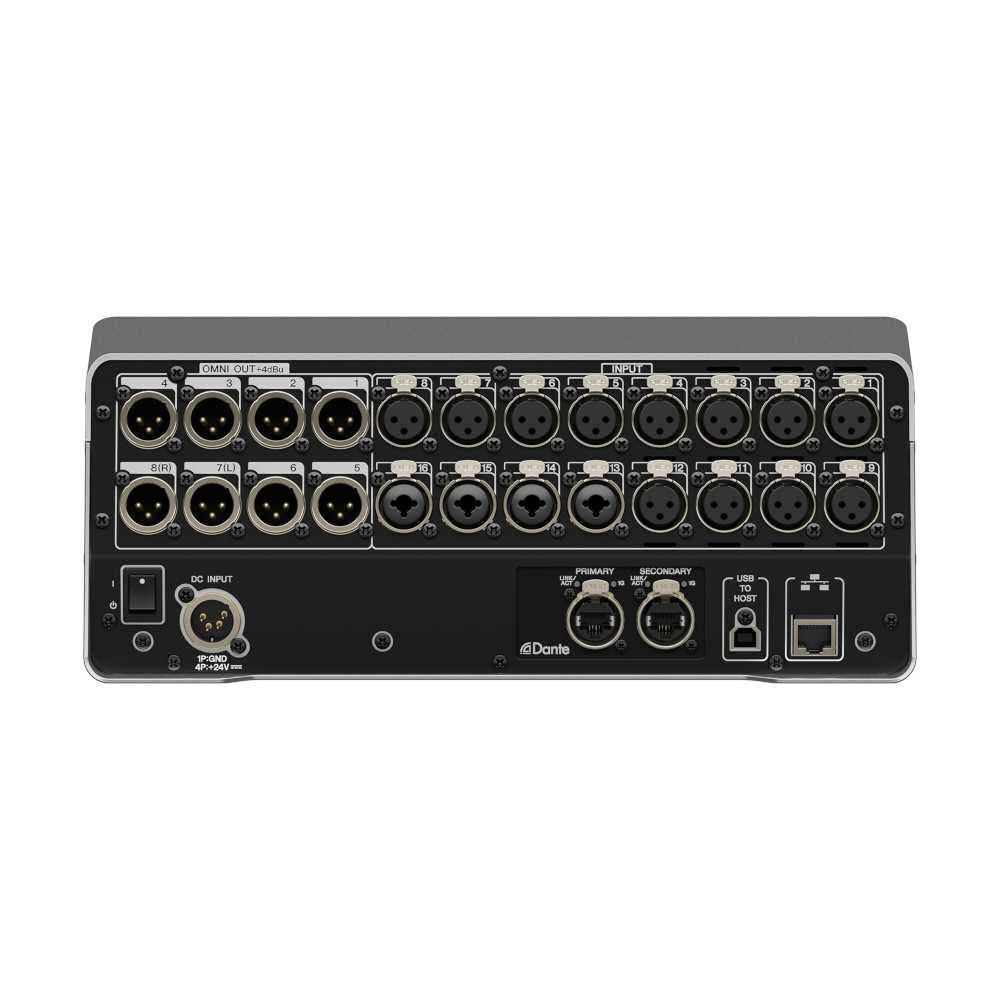

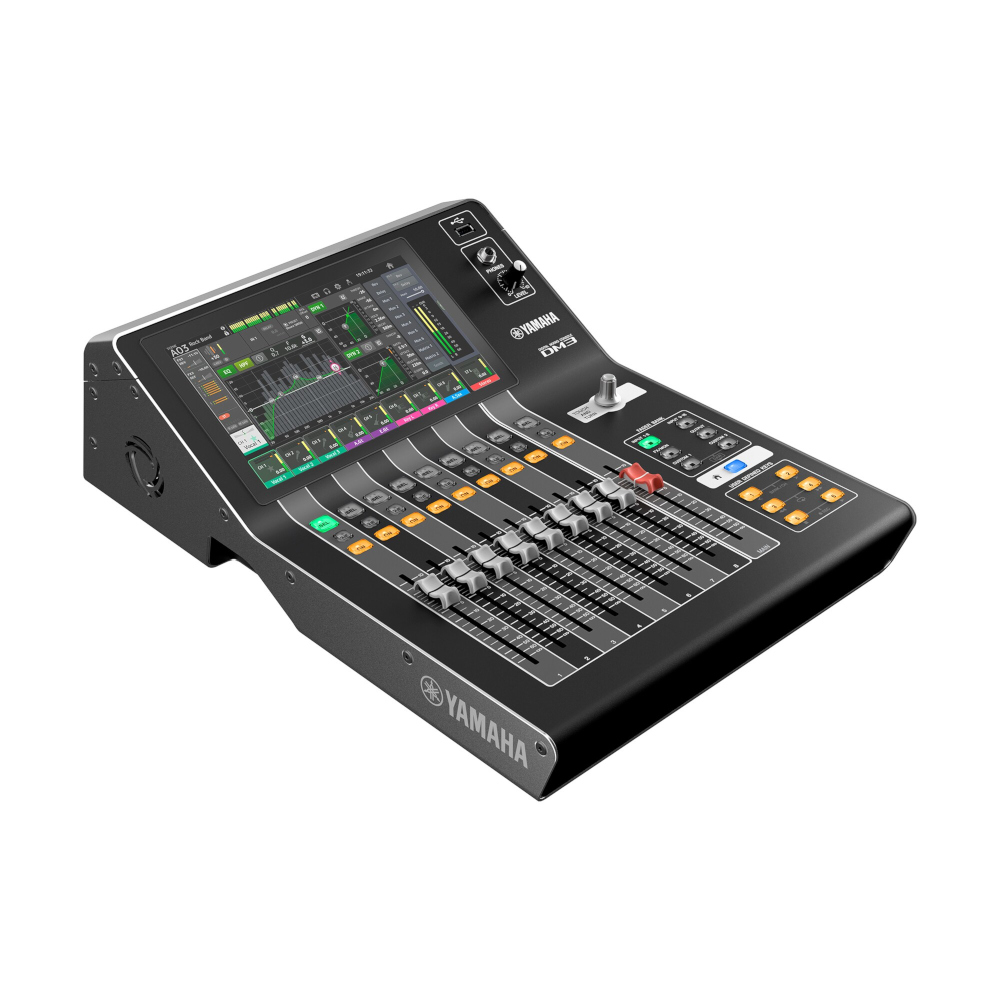

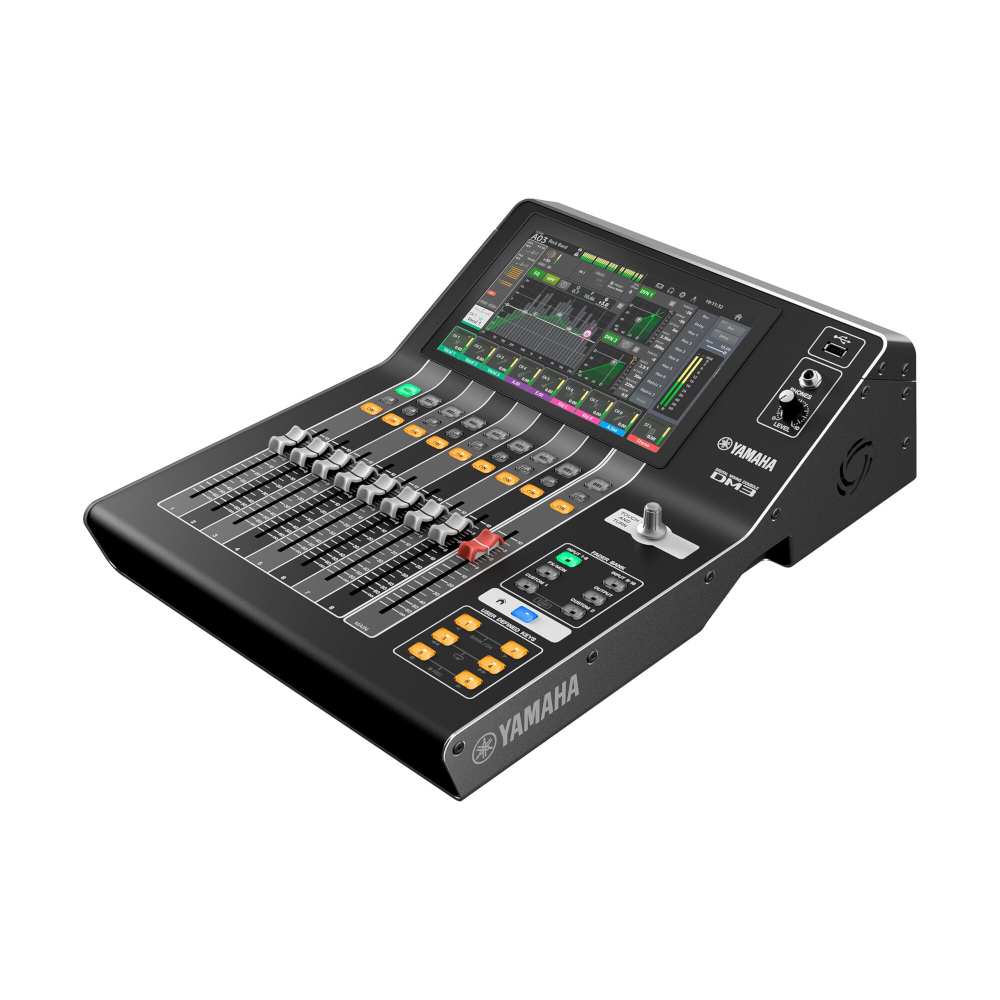

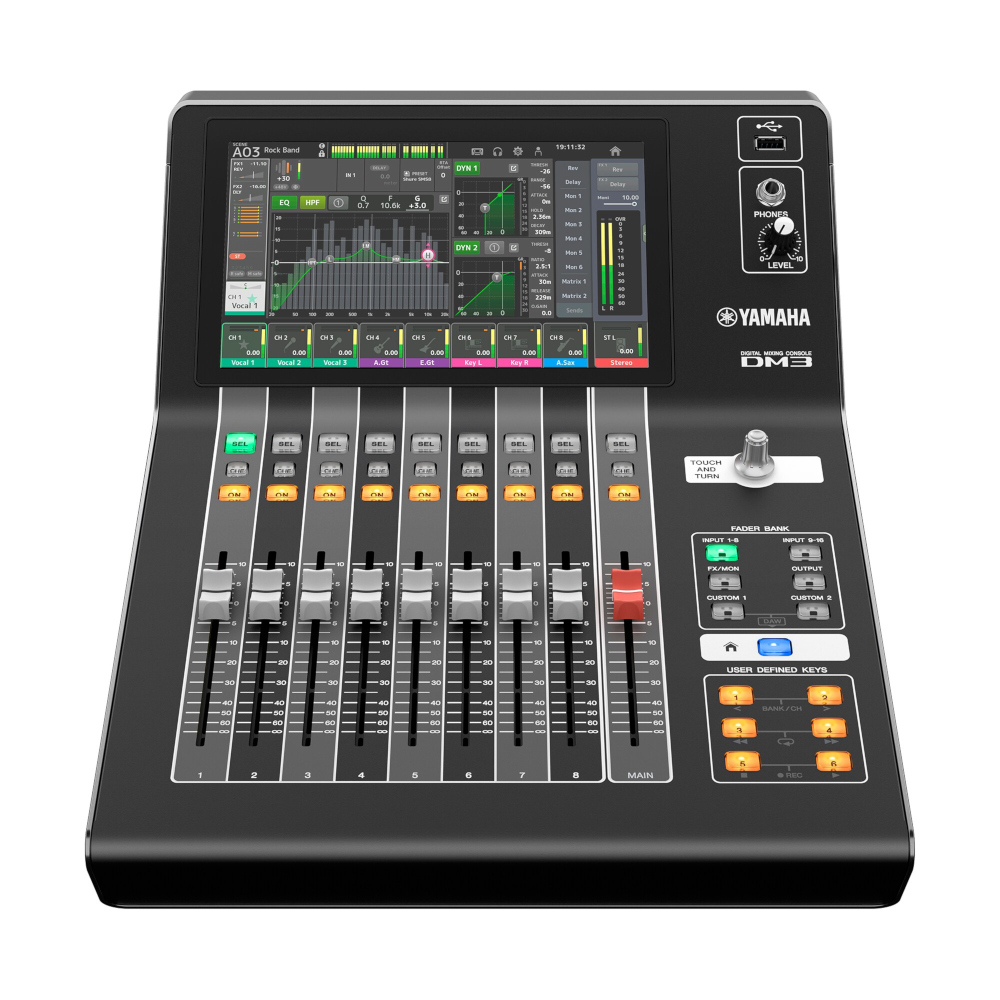

Yamaha DM3 is a compact digital mixing console designed for live sound, installed AV, presentations, events, recording and professional audio applications. The DM3 includes a built-in Dante audio interface with 16 inputs and 16 outputs.
Key Features
- 22 input mixing channels: 16 mono, 1 stereo and 2 FX returns
- 9 motorized faders
- 9-inch multi-touch screen
- 16 local Mic/Line inputs: 12 XLR + 4 XLR/TRS combo
- 8 XLR analog outputs
- Built-in Dante: 16 inputs / 16 outputs
- USB: 18 inputs / 18 outputs
- 6 Mix buses and 2 Matrix buses
- 48 kHz / 96 kHz sampling rates
- 18 built-in effects
- Dimensions: 320 × 140 × 455 mm
- Net weight: 6.5 kg
Technical Specifications
| Mixing Channels | 22: 16 Mono + 1 Stereo + 2 FX Return |
|---|---|
| Motorized Faders | 9 |
| Local Inputs | 16 Mic/Line |
| Analog Outputs | 8 × XLR |
| Dante I/O | 16 In / 16 Out |
| USB I/O | 18 In / 18 Out |
| Mix Bus | 6 |
| Matrix Bus | 2 |
| Sampling Rate | 48 kHz / 96 kHz |
| Dimensions | 320 × 140 × 455 mm |
| Weight | 6.5 kg |
