Description

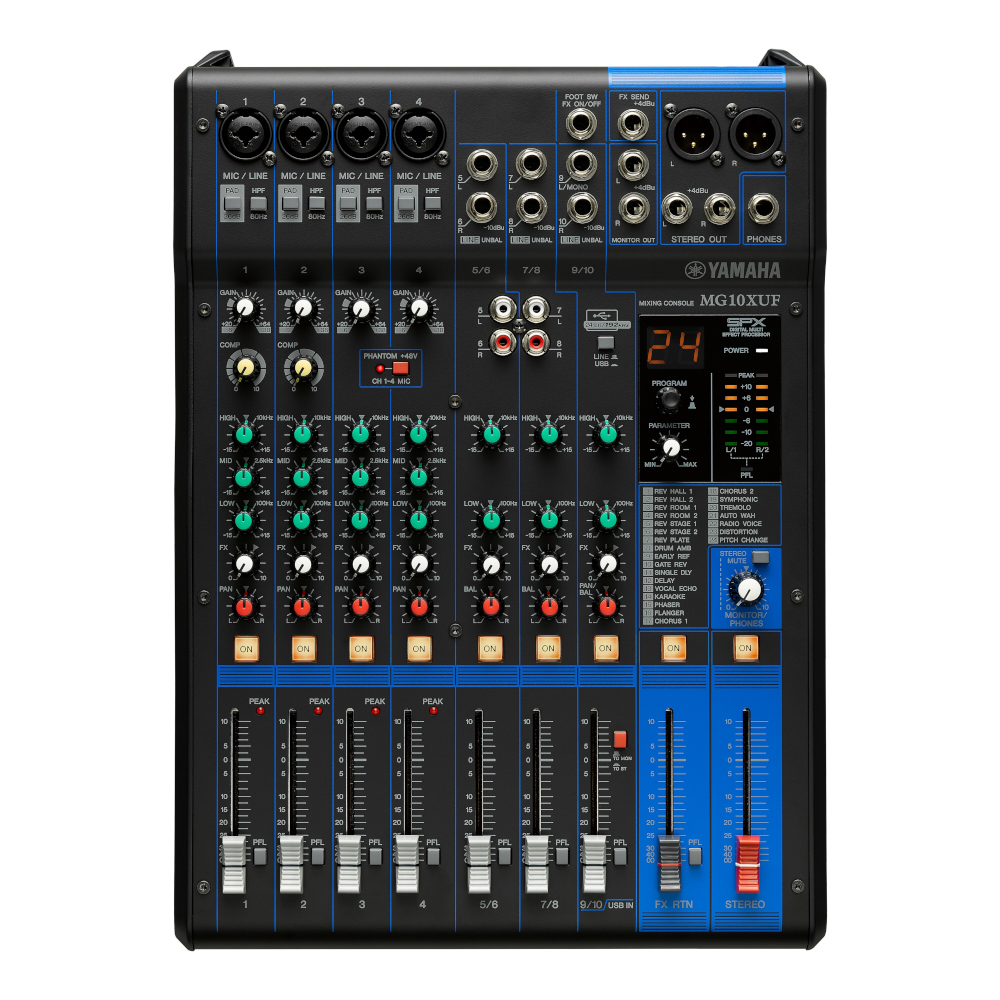

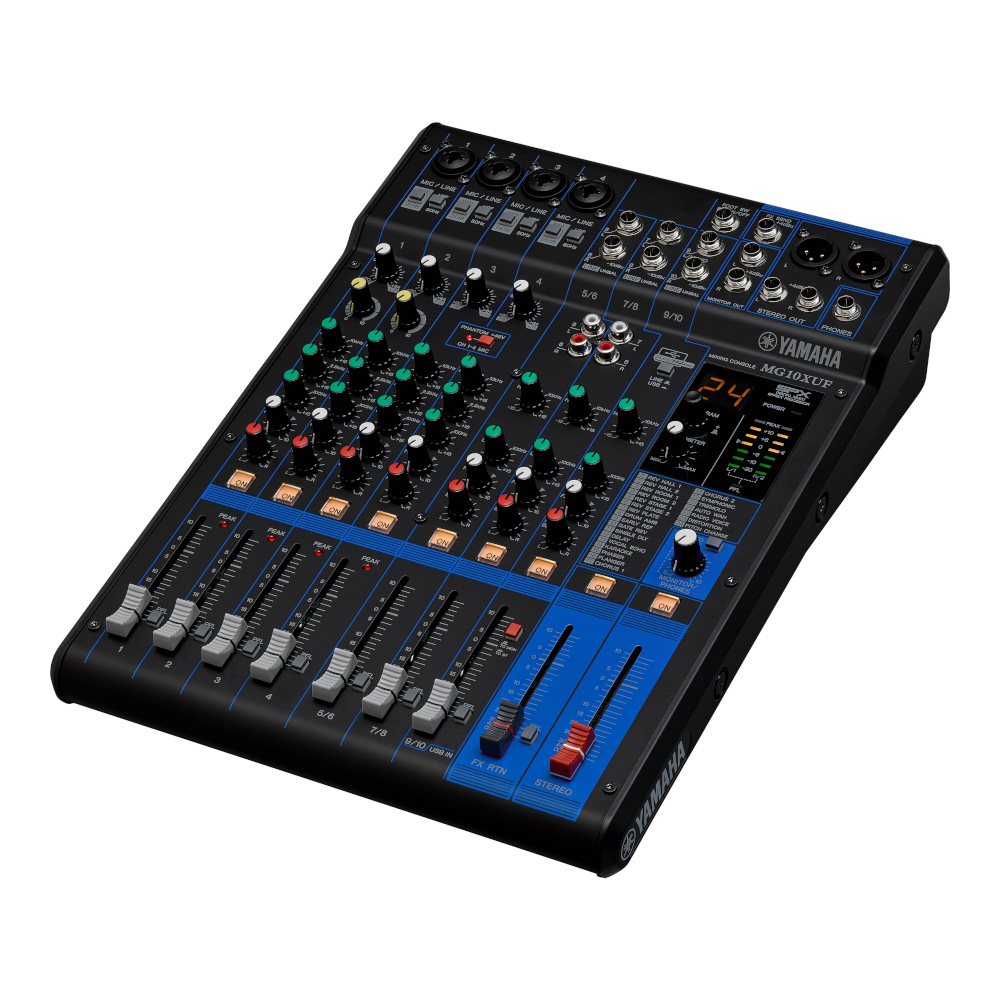

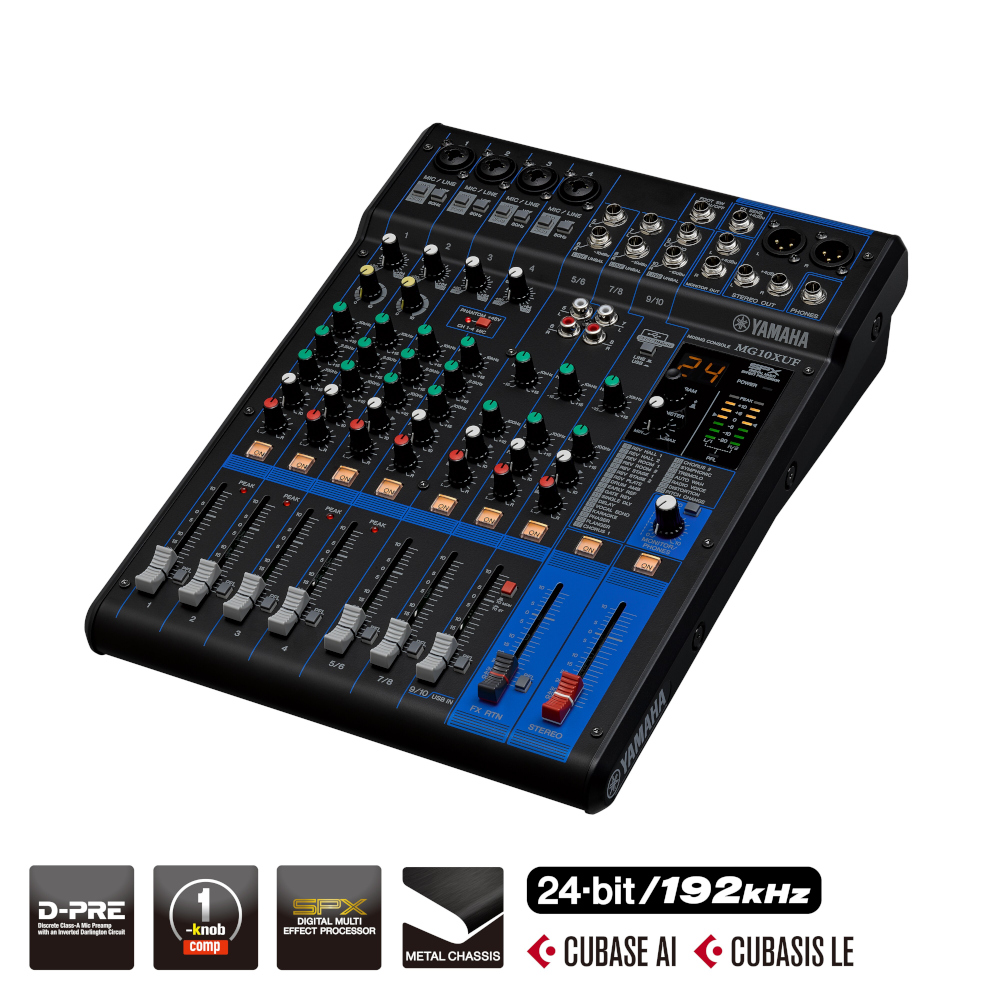

Yamaha MG10XUF is a 10-channel mixing console designed for live sound, recording, rehearsal, streaming, presentations, and other professional audio applications. It combines Yamaha D-PRE microphone preamps, 1-knob compressors, built-in SPX effects, flexible routing, and 24-bit/192 kHz USB Audio in a compact metal chassis.
Key Features
- 10-channel mixing console
- Maximum 4 microphone / 10 line inputs
- 4 mono MIC/LINE channels and 3 stereo LINE channels
- 1 Stereo Bus and 1 AUX bus including FX
- Yamaha D-PRE microphone preamps with an inverted Darlington circuit
- 1-knob compressors for quick dynamics control
- SPX effects processor with 24 programs
- 24-bit / 192 kHz, 2-in / 2-out USB Audio
- +48 V phantom power
- PAD switch on mono inputs
- XLR balanced outputs
- Metal chassis
- Includes Cubase AI DAW software download information
Flexible Mixing for Live and Recording Applications
The MG10XUF provides four mono MIC/LINE channels and three stereo LINE channels, giving you flexible connections for microphones, instruments, playback devices, and other audio sources. Yamaha specifies a maximum of 4 microphone and 10 line inputs.
Yamaha D-PRE Microphone Preamps
The MG10XUF uses Yamaha D-PRE microphone preamps with an inverted Darlington circuit. This provides a high-quality microphone input stage for live sound, recording, presentations, and other audio applications.
Easy Dynamics Control
The 1-knob compressors provide straightforward dynamics control, making it easier to manage vocals and instruments without a complicated compressor setup.
Built-In SPX Effects
The integrated SPX effects processor provides 24 programs for adding effects to vocals, instruments, and other sources. The mixer also provides an AUX bus including FX functionality.
USB Audio for Computer-Based Workflows

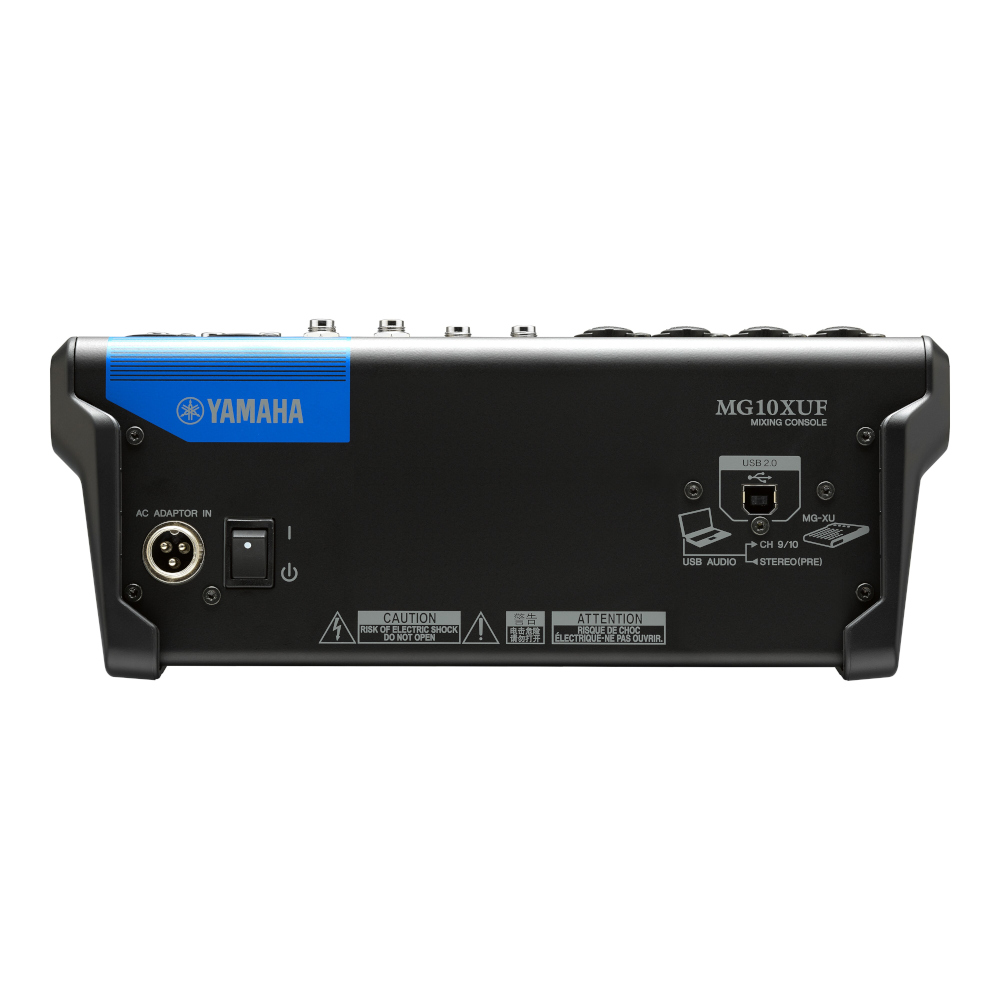

The MG10XUF provides USB Audio Class 2.0 connectivity with 2-in / 2-out audio and support for sampling rates up to 192 kHz at 24-bit resolution. It can be used for computer-based recording, playback, streaming, and other audio workflows.
iPad and DAW Compatibility
Yamaha specifies iPad connectivity through the appropriate Apple Camera Connection Kit or Lightning to USB Camera Adapter. The MG10XUF also includes Cubase AI DAW software download information. Cubasis LE is available separately through the App Store.
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | 10-Channel Mixing Console |
| Mixing Capability | 1 Stereo Bus, 1 AUX (incl. FX) |
| Maximum Inputs | 4 Mic / 10 Line Inputs |
| Mono MIC/LINE Inputs | 4 |
| Stereo LINE Channels | 3 |
| Microphone Preamps | D-PRE, inverted Darlington circuit |
| Compressors | 1-Knob Compressors |
| Built-in Effects | SPX, 24 programs |
| USB Audio | 2-in / 2-out |
| USB Standard | USB Audio Class 2.0 compliant |
| Maximum Sampling Frequency | 192 kHz |
| Bit Depth | 24-bit |
| Phantom Power | +48 V |
| Outputs | STEREO OUT, MONITOR OUT, FX SEND, PHONES |
| STEREO OUT Connectors | XLR and balanced phone jacks |
| Frequency Response | +0.5 / -1.5 dB, 20 Hz–48 kHz |
| THD+N | 0.03% @ +14 dBu, 20 Hz–20 kHz |
| Equivalent Input Noise | -128 dBu |
| Residual Output Noise | -102 dBu |
| Crosstalk | -83 dB |
| Power Requirement | AC 100–240 V, 50/60 Hz |
| Power Consumption | 22.9 W |
| Dimensions (W × H × D) | 275 × 110 × 390 mm |
| Net Weight | 3.3 kg |
What’s Included
- Yamaha MG10XUF Mixing Console
- AC adaptor / power supply as supplied for the applicable market
- Owner’s Manual
- Cubase AI DAW software download information
