Description

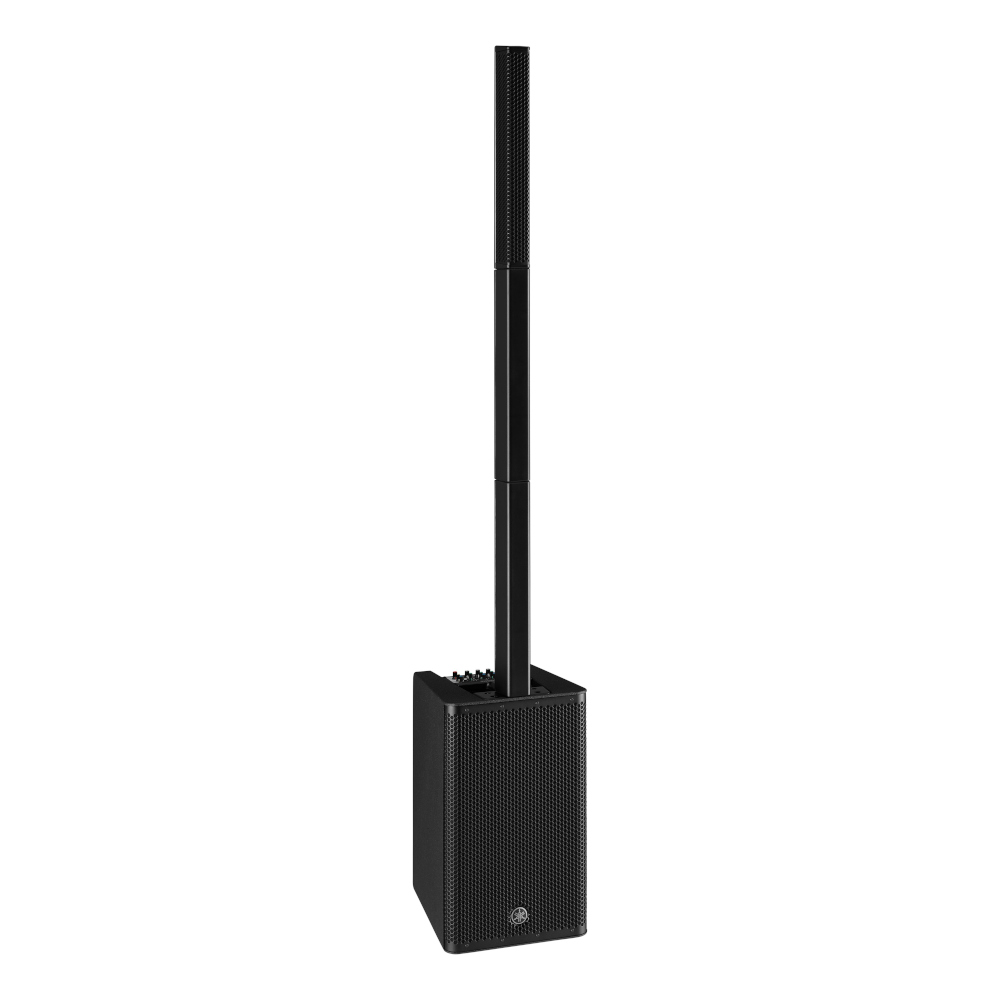

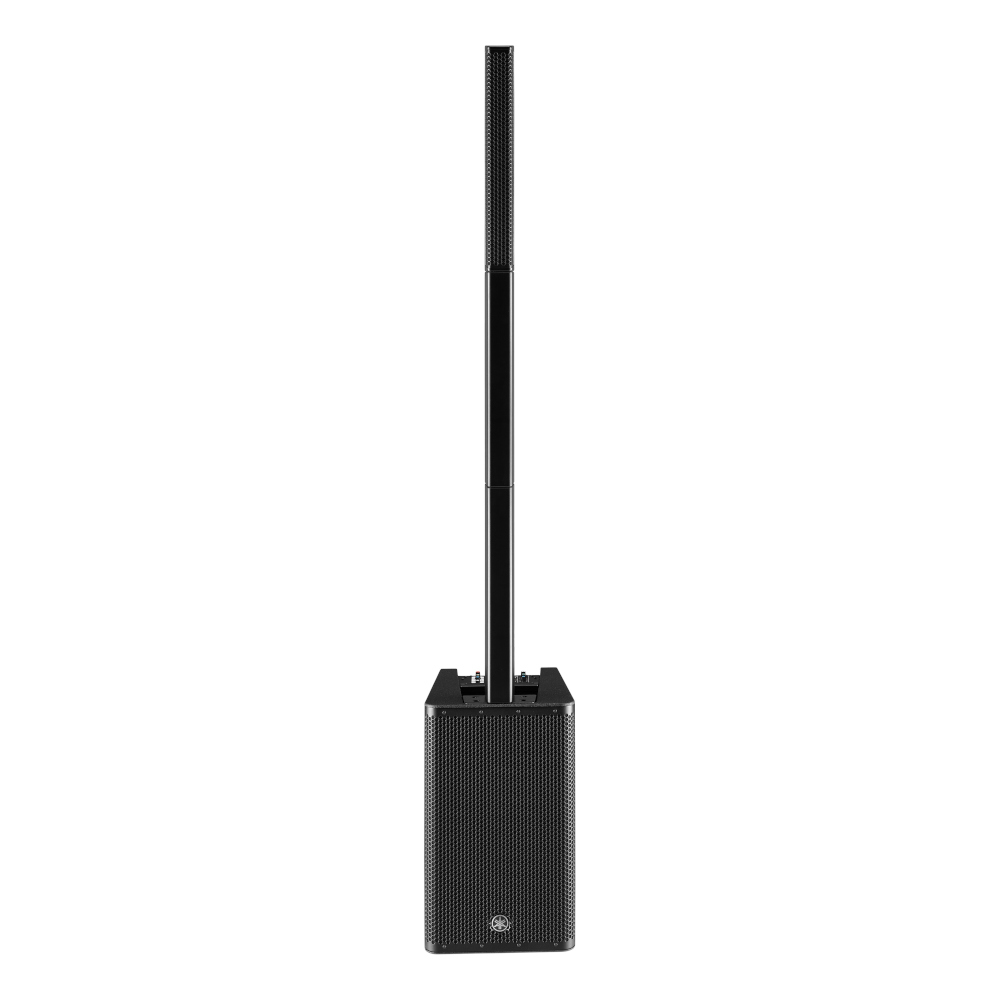

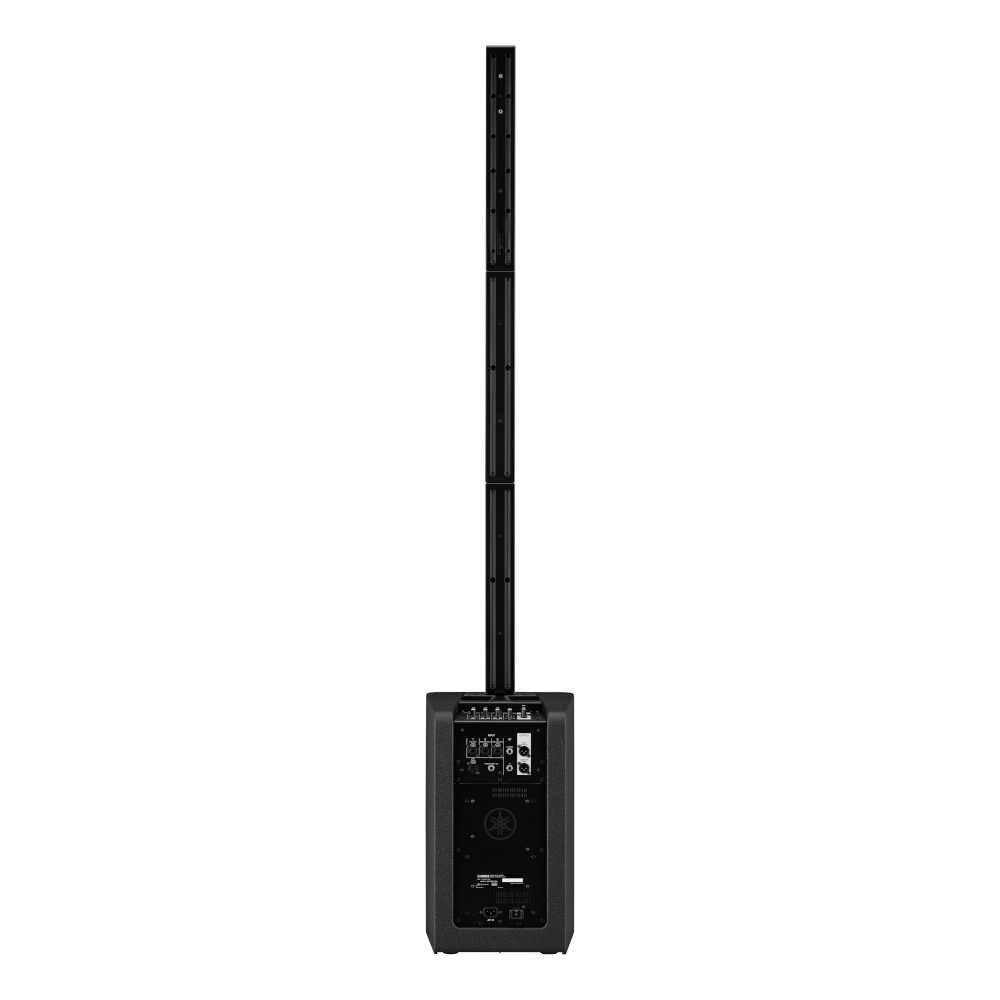

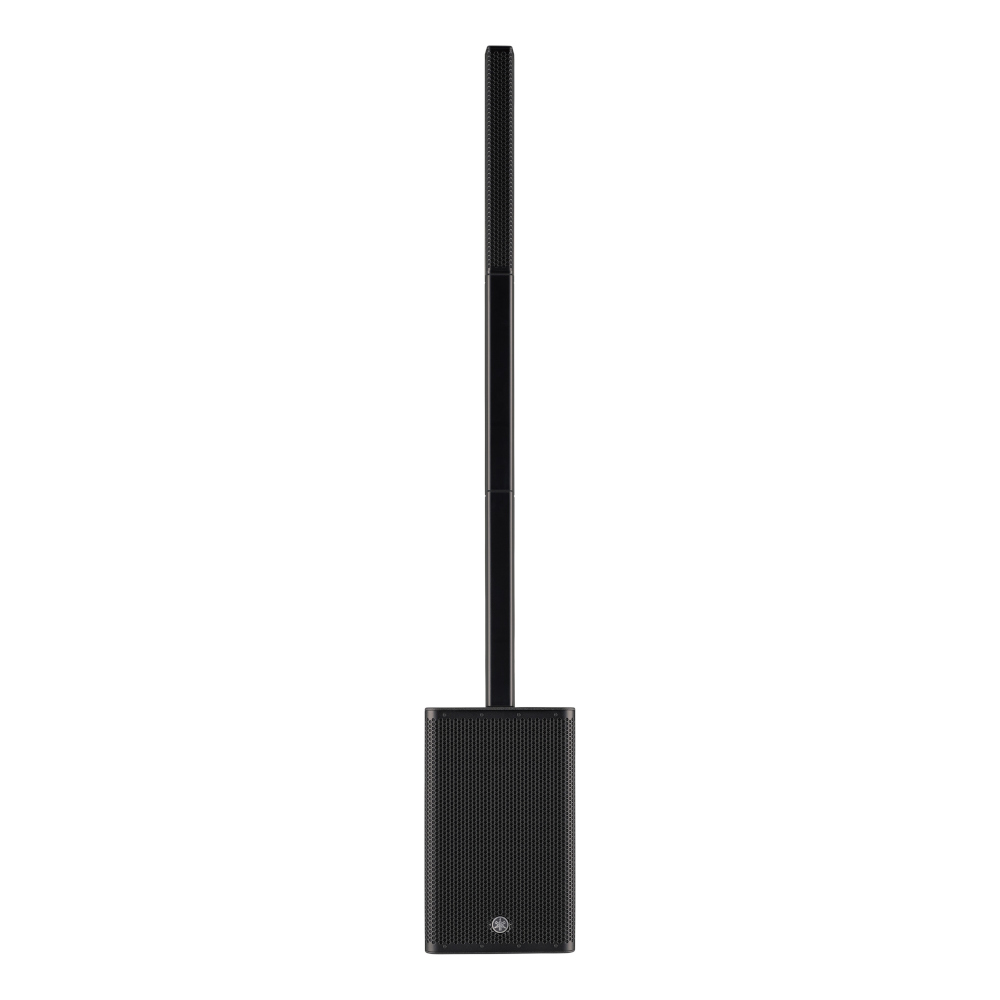

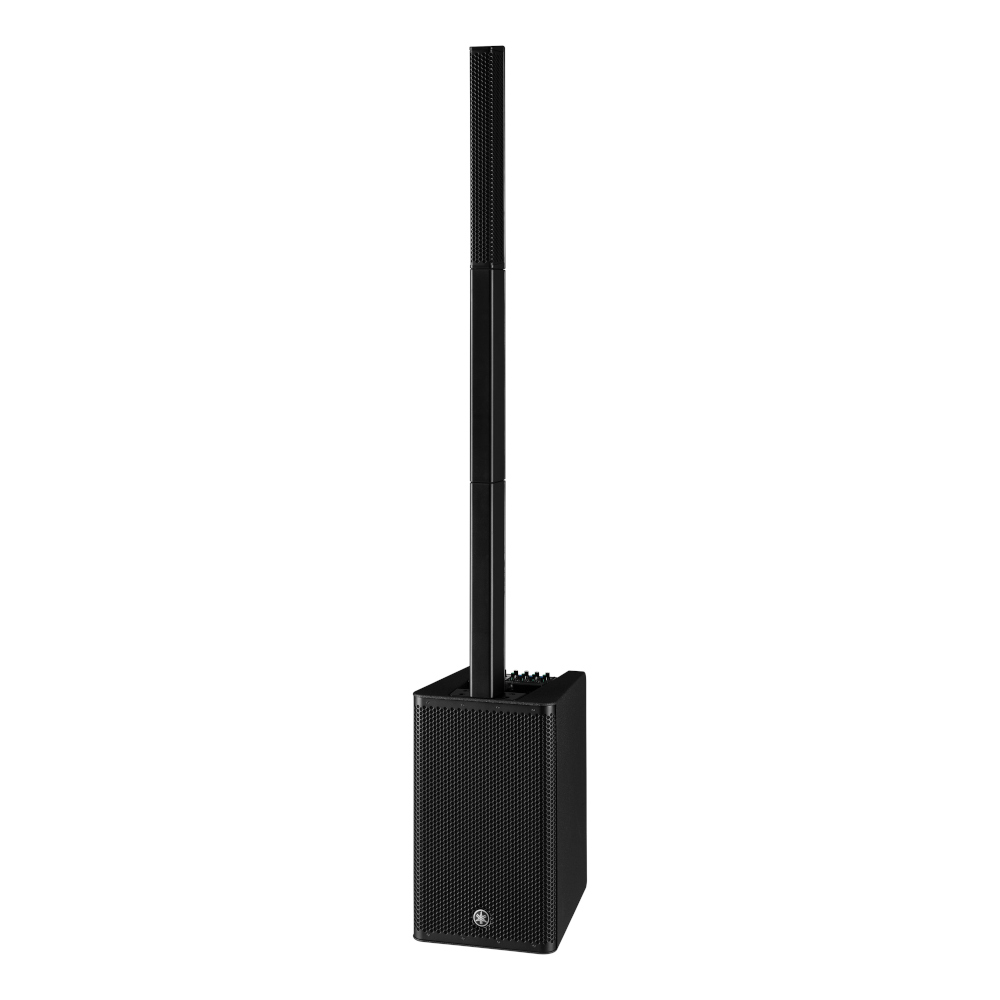

Yamaha STAGEPAS 1K mkII is a compact portable line array PA system combining a 12-inch powered subwoofer with a 10-driver line array speaker. With 1,100 W of dynamic amplifier power, a 5-channel mixer, Bluetooth 5.0, SPX digital reverb, and wide 170° horizontal coverage, it is designed for live performances, events, presentations, and applications requiring broad and consistent sound coverage.
Key Features
- Portable line array PA system
- Powered 12-inch subwoofer with line array speaker
- 1,100 W dynamic amplifier power
- 5-channel mixer
- 3 mono mic/line inputs and 1 stereo line channel
- Hi-Z support on channels 2 and 3
- Bluetooth 5.0 audio streaming
- A2DP with SBC and AAC support
- STAGEPAS Editor app for iOS and Android
- SPX digital reverb with 4 programs and parameter control
- Reverb footswitch support
- SPEECH, MUSIC, and CLUB modes
- 37 Hz–20 kHz frequency range
- 170° horizontal × 30° vertical coverage
- 12-inch powered subwoofer
- 10 × 1.5-inch line array drivers
- 125 dB SPL maximum output level
- 35 mm-compatible pole mounting configuration
- Compact subwoofer cabinet with top handle
- Includes protective cover
Wide-Area Line Array Coverage
The STAGEPAS 1K mkII uses a J-curve line array configuration with ten 1.5-inch drivers. The array provides 170° horizontal and 30° vertical coverage, helping distribute sound broadly across the listening area.
Powerful 12-Inch Subwoofer
The system combines the line array with a 12-inch bass-reflex powered subwoofer. The subwoofer provides the low-frequency foundation while the line array handles the higher-frequency portion of the system.
1,100 W Dynamic Power
The STAGEPAS 1K mkII features a Class-D amplifier delivering 1,100 W of dynamic power. This provides substantial output capability in a compact portable PA format.

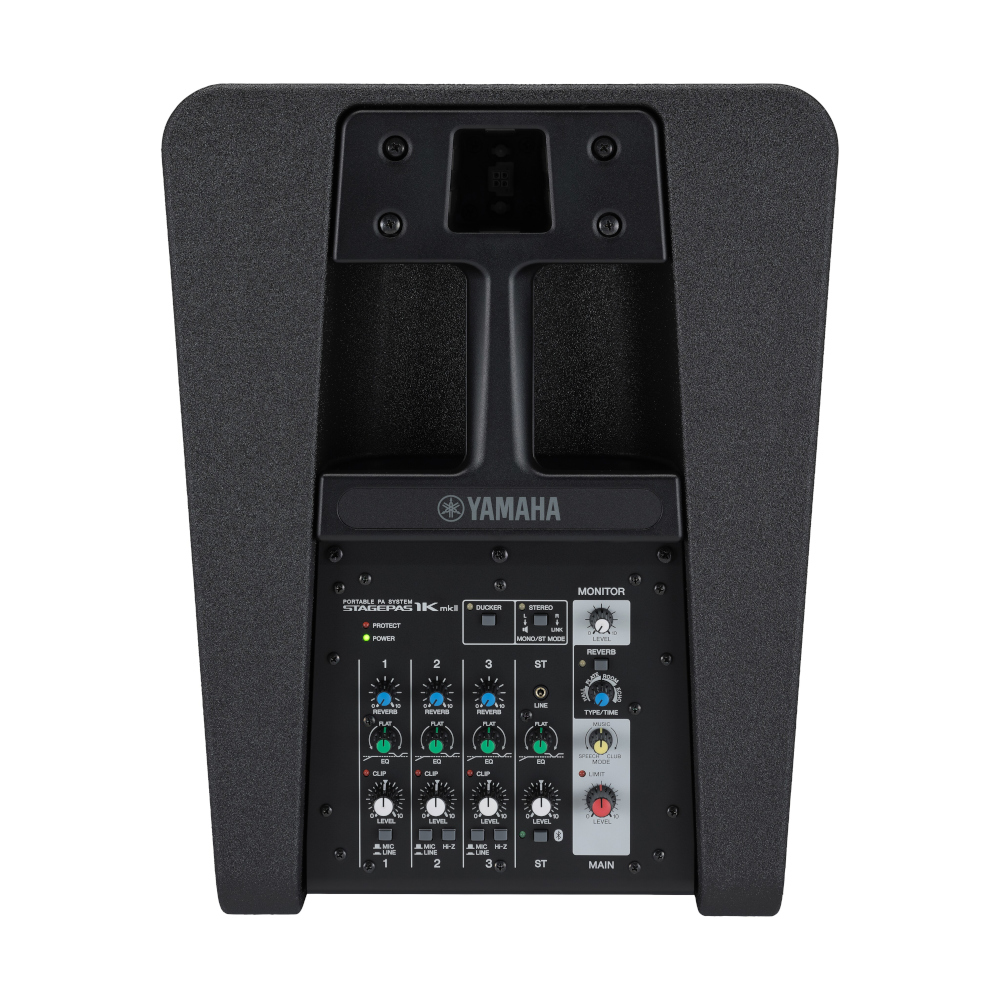

Integrated 5-Channel Mixer
The mixer provides three mono mic/line inputs and one stereo line channel. Hi-Z support is available on channels 2 and 3, while one-knob EQ and preset functions provide practical control for connected sources.
Bluetooth 5.0 and App Control
Bluetooth 5.0 with A2DP support allows compatible devices to stream audio wirelessly. The STAGEPAS Editor application for iOS and Android provides remote control of system parameters.
SPX Digital Reverb
The STAGEPAS 1K mkII includes Yamaha SPX digital reverb with four programs and parameter control. A compatible FC5 footswitch can also be used to switch reverb on and off.
Flexible Sound Modes
The system provides SPEECH, MUSIC, and CLUB modes to adapt overall system processing to different application types.
Portable and Practical Design

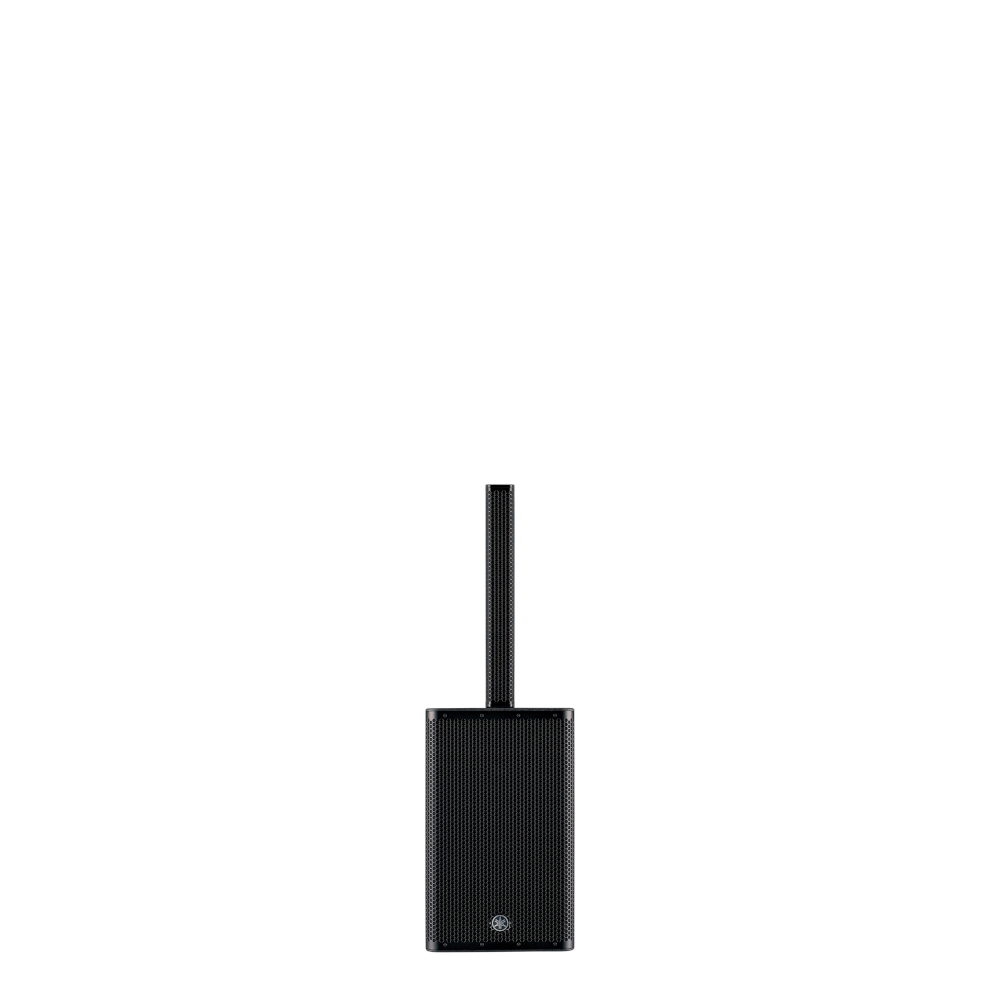

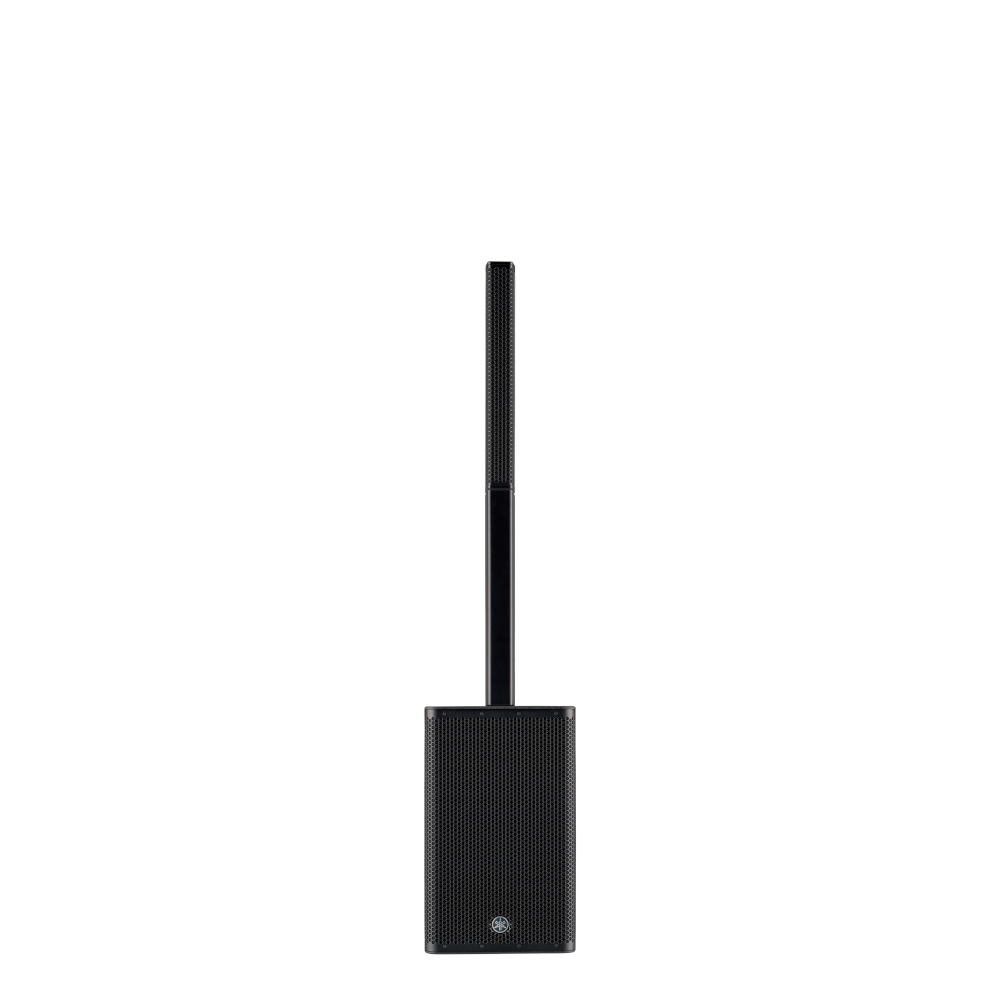

The powered subwoofer includes a top handle, while the line array can be separated into the speaker and spacer components for transportation. The complete system has a maximum assembled height of 2,000 mm.
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Portable Line Array PA System |
| System Configuration | Powered Subwoofer with Line Array Speaker |
| Mixer Channels | 5 (Mono × 3 + Stereo × 1) |
| Inputs | Mono × 3 Mic/Line + Stereo × 1 Line / Mono × 2 Line |
| Hi-Z | Channels 2 and 3 |
| Output | Link Out × 1, Monitor Out × 1 |
| Bluetooth | Version 5.0, A2DP (SBC, AAC) |
| Controller | STAGEPAS Editor for iOS / Android |
| DSP | SPX Digital Reverb, 4 Programs |
| Output Modes | SPEECH / MUSIC / CLUB |
| Amplifier | Class-D |
| Dynamic Power | 1,100 W |
| Frequency Range | 37 Hz–20 kHz |
| Coverage | 170° Horizontal × 30° Vertical |
| Crossover | 240 Hz |
| Maximum Output Level | 125 dB SPL |
| Subwoofer Driver | 12-inch Cone |
| Line Array Drivers | 10 × 1.5-inch Cone |
| Subwoofer Type | Bass-Reflex Powered Subwoofer |
| Line Array Type | Closed Cabinet |
| Maximum System Dimensions | 334 × 2,000 × 418 mm |
| Subwoofer Dimensions | 334 × 550 × 418 mm |
| Line Array Speaker Dimensions | 67 × 582 × 86 mm |
| System Weight | 23.0 kg Maximum |
| Subwoofer Weight | 20.0 kg |
| Line Array Speaker Weight | 1.8 kg |
| Spacer Weight | 0.6 kg Each |
What’s Included
- Yamaha STAGEPAS 1K mkII
- Line Array Speaker
- Spacer Components
- Power Cable

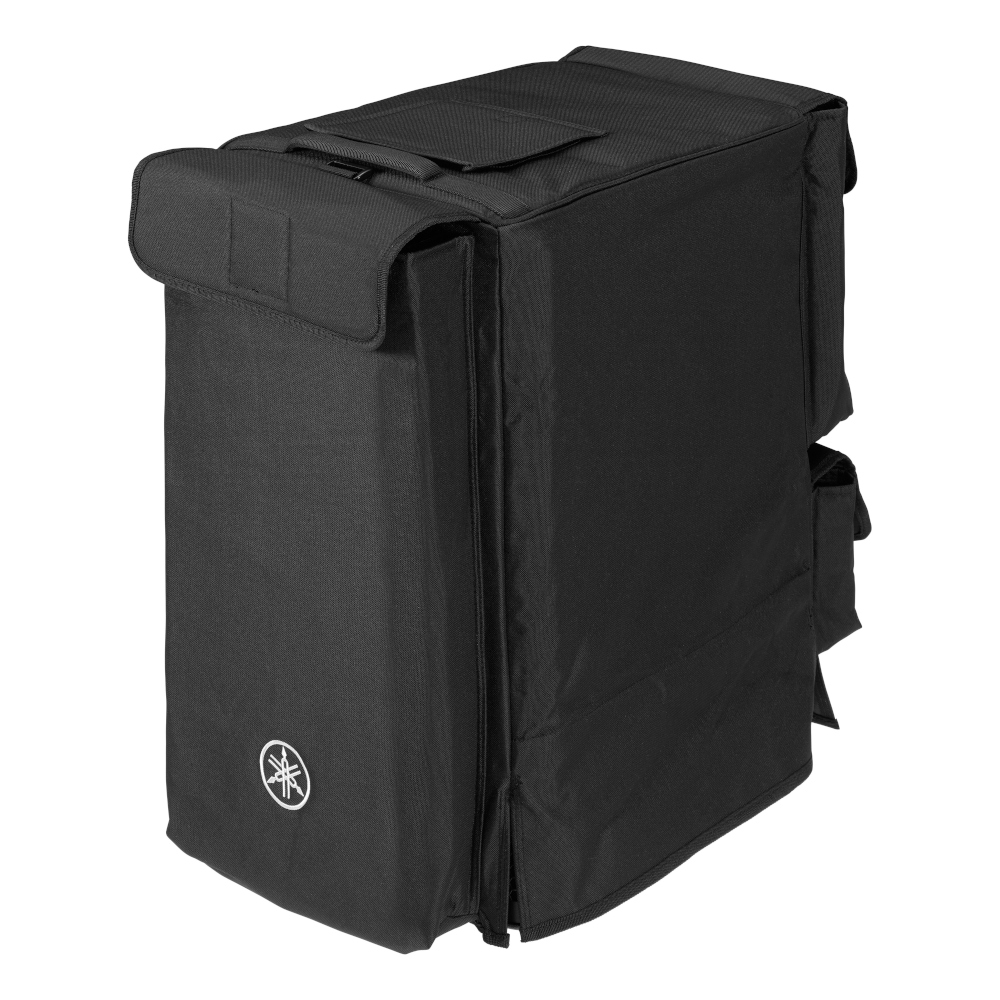

- Protective Cover
