Description

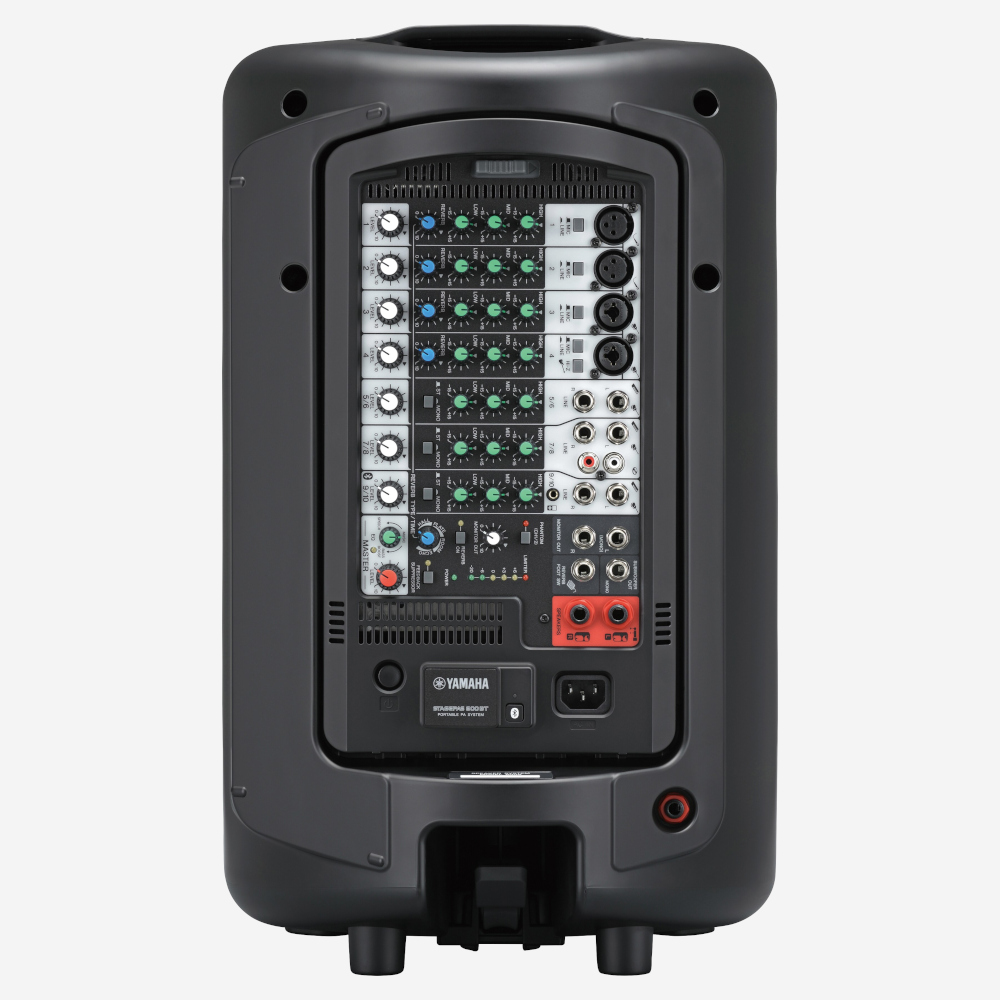

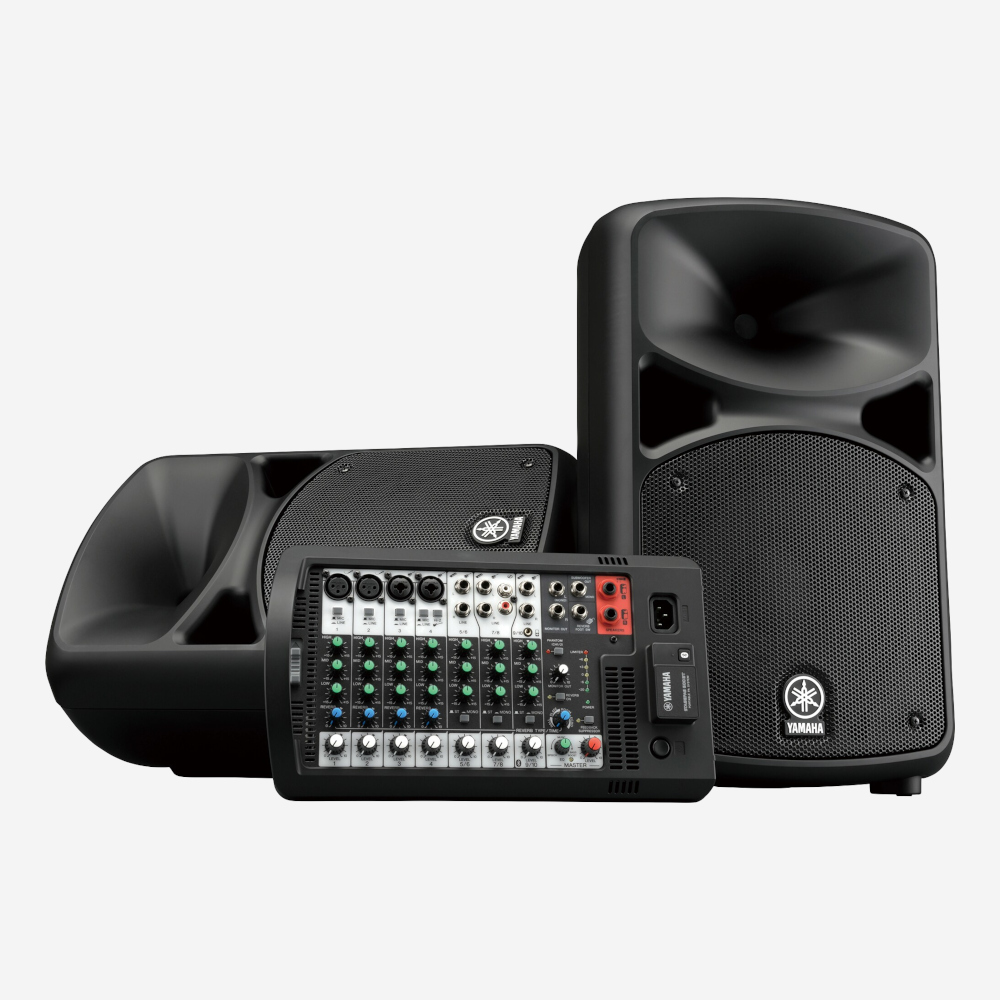

Yamaha STAGEPAS 600BT is a portable PA system combining a 10-channel powered mixer with two 10-inch passive speakers. With 680 W of dynamic amplifier power, Bluetooth audio streaming, SPX digital reverb, onboard feedback suppression, and flexible input and output options, it provides a versatile solution for live performances, presentations, events, public speaking, and mobile sound applications.
Key Features
- Portable PA system with powered mixer and two passive speakers
- 10-channel powered mixer
- 680 W dynamic amplifier power
- 560 W continuous amplifier power
- Two-way bass-reflex speaker system
- 10-inch LF cone speakers
- 1.4-inch voice coil compression drivers
- 55 Hz–20 kHz frequency range
- 129 dB SPL maximum output per speaker
- 90° × 60° nominal speaker coverage
- Bluetooth 4.1 audio streaming
- A2DP v1.2 Bluetooth profile
- 4 mono mic/line inputs
- 6 mono / 3 stereo line inputs
- Hi-Z input on channel 4
- +30 V phantom power on channels 1 and 2
- 3-band channel EQ
- SPX digital reverb with 4 programs and parameter control
- Onboard feedback suppressor
- 1-Knob Master EQ™
- Monitor and subwoofer outputs
- 35 mm StageLok™ pole sockets
- 50° floor monitor angle
Powerful Portable PA System
The STAGEPAS 600BT combines a powerful amplifier, flexible 10-channel mixer, and two 10-inch speakers into a portable PA package. It is designed to provide a practical setup for live sound applications where additional input capacity and higher output are required.
680 W Dynamic Amplification
The powered mixer provides 680 W of dynamic output, with 340 W available to each speaker. Continuous output is rated at 560 W, with 280 W per channel.
10-Inch Two-Way Speakers
Each passive speaker uses a 10-inch low-frequency cone and a 1.4-inch voice coil compression driver. The two-way bass-reflex design provides a 55 Hz–20 kHz frequency range and a maximum output level of 129 dB SPL per speaker.

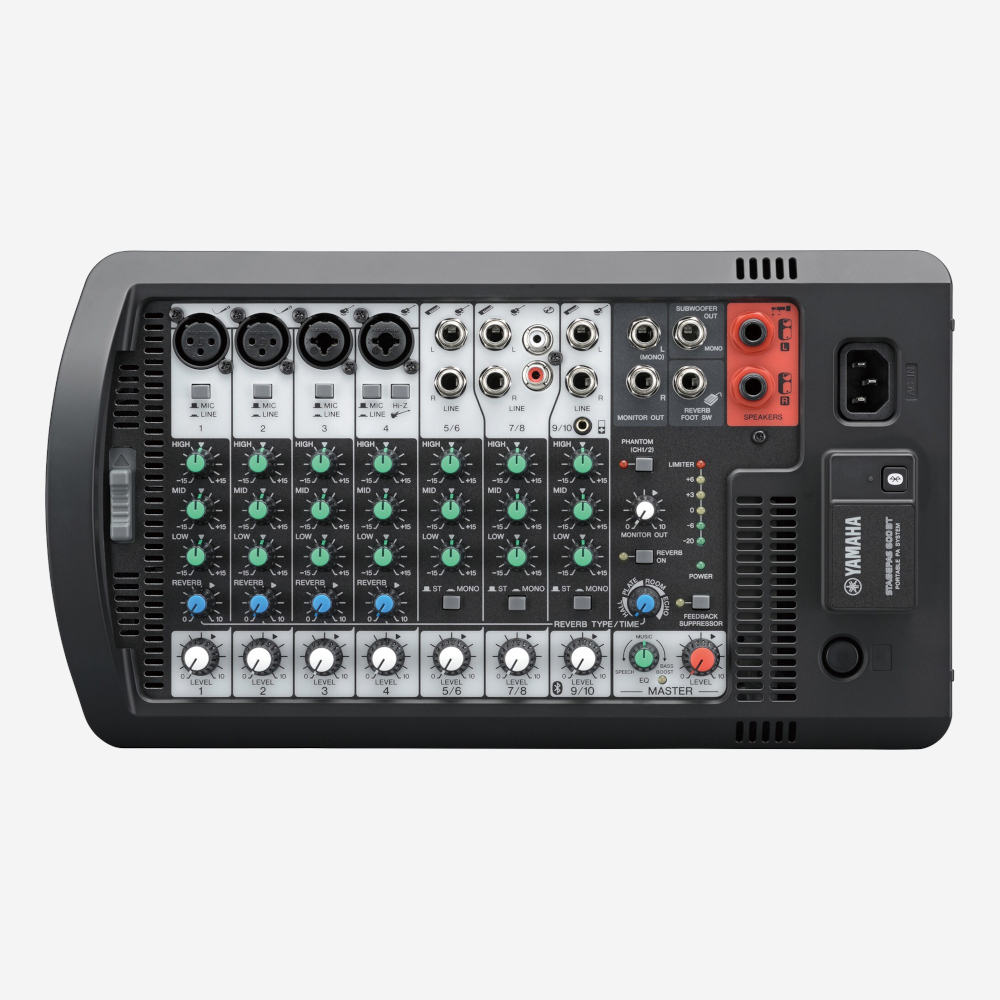

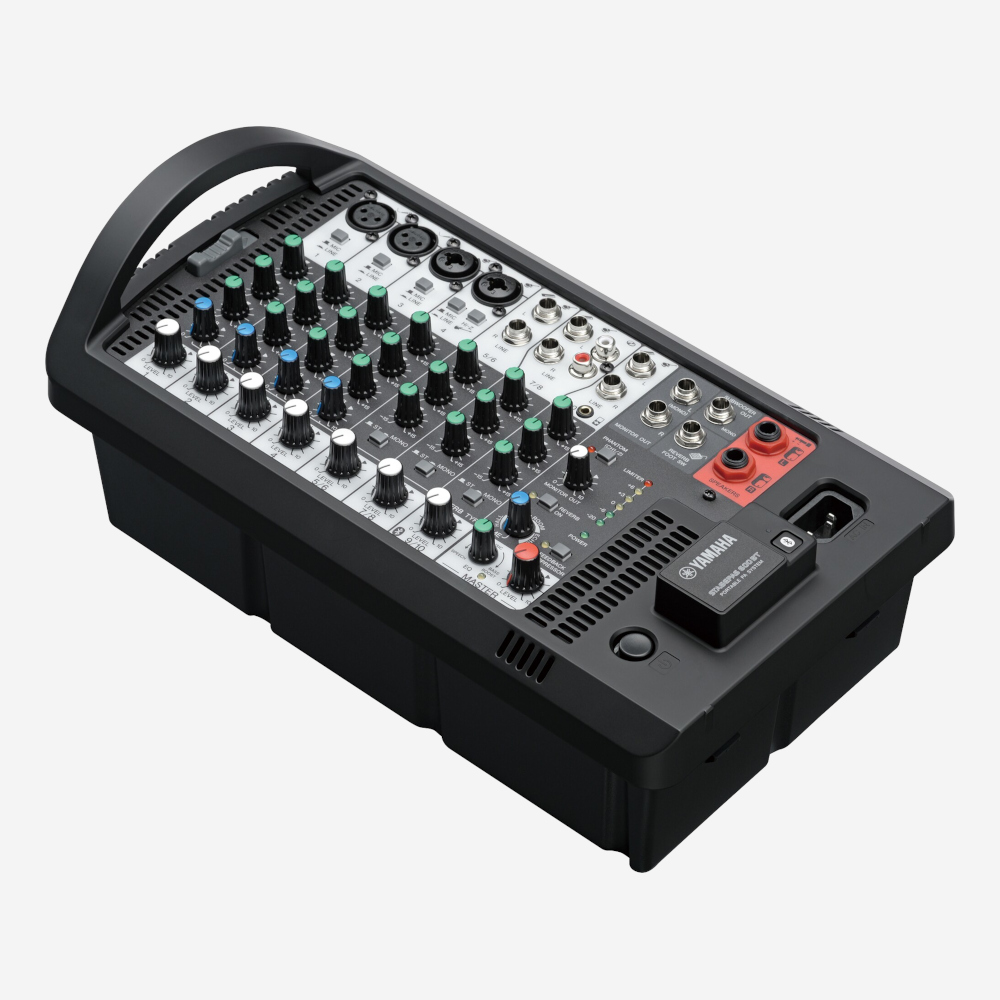

10-Channel Mixing
The powered mixer provides four mono microphone/line inputs and six additional mono or three stereo line inputs. Channel 4 provides Hi-Z capability for compatible high-impedance sources, while channels 1 and 2 provide +30 V phantom power.
Bluetooth Audio Streaming
Bluetooth 4.1 with A2DP v1.2 allows compatible devices to stream audio wirelessly to the powered mixer, providing a convenient playback option for presentations, background music, and live applications.
Digital Reverb and Feedback Suppression
The STAGEPAS 600BT includes Yamaha SPX digital reverb with four programs and parameter control. An onboard feedback suppressor helps manage acoustic feedback, while the 1-Knob Master EQ™ provides convenient overall sound adjustment.
Flexible Outputs and Placement

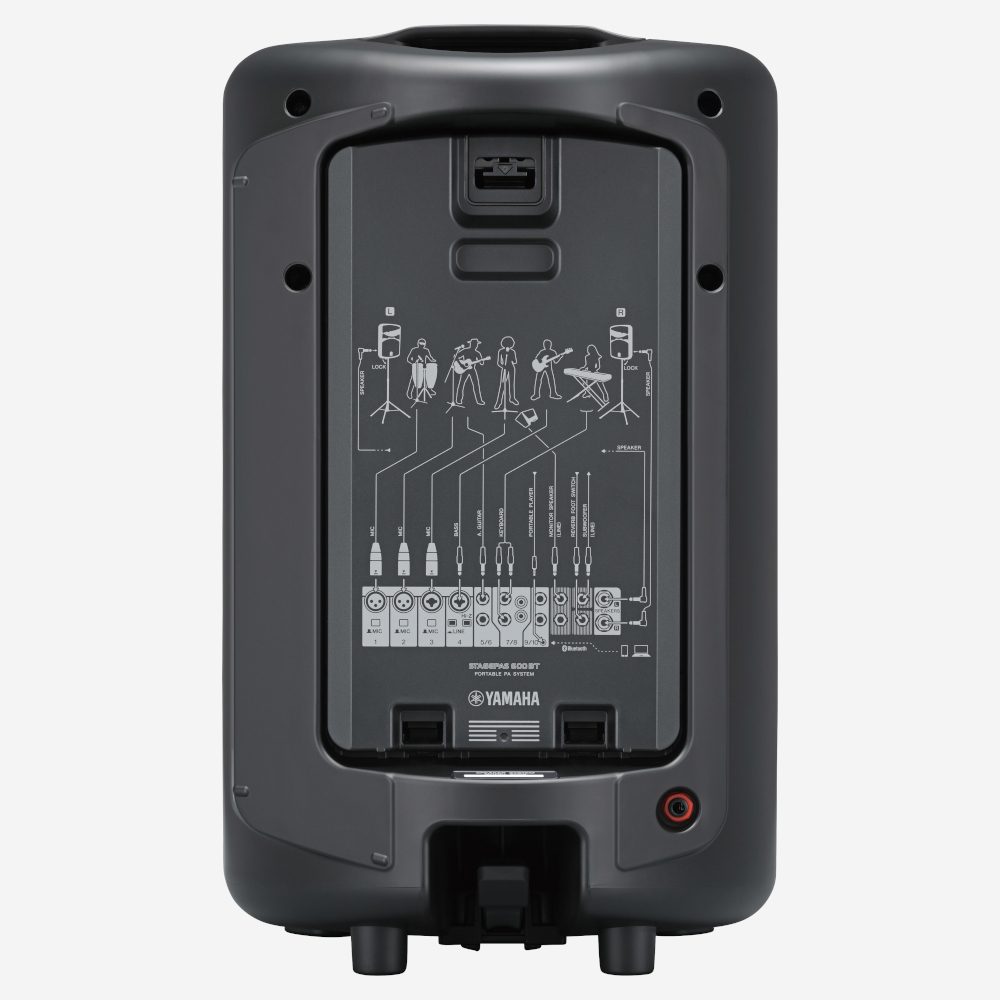

The powered mixer provides speaker outputs, monitor outputs, and a subwoofer output with automatic high-pass filtering. The speakers include 35 mm StageLok™ pole sockets and can also be used as floor monitors at a 50° angle.
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Portable PA System |
| System Configuration | Powered Mixer with 2 Passive Speakers |
| Mixer Channels | 10 |
| Analog Inputs | 4 Mono Mic/Line + 6 Mono / 3 Stereo Line |
| Hi-Z | Channel 4 |
| Phantom Power | +30 V, Channels 1 and 2 |
| Bluetooth | Version 4.1, A2DP v1.2 |
| Bluetooth Range | Approx. 10 m |
| DSP | SPX Digital Reverb, 4 Programs |
| Feedback Suppressor | Yes |
| Master EQ | 1-Knob Master EQ™ |
| Dynamic Power | 680 W (340 W + 340 W) |
| Continuous Power | 560 W (280 W + 280 W) |
| Speaker Type | Two-Way Bass-Reflex |
| LF Driver | 10-inch Cone |
| HF Driver | 1.4-inch Voice Coil Compression Driver |
| Frequency Range | 55 Hz–20 kHz |
| Coverage | 90° × 60° |
| Maximum SPL | 129 dB SPL / Speaker |
| Pole Socket | 34.8–35.2 mm StageLok™ |
| Floor Monitor Angle | 50° |
| Speaker Dimensions | 335 × 545 × 319 mm |
| Mixer Dimensions | 348 × 197 × 135 mm |
| System Weight | 25.6 kg |

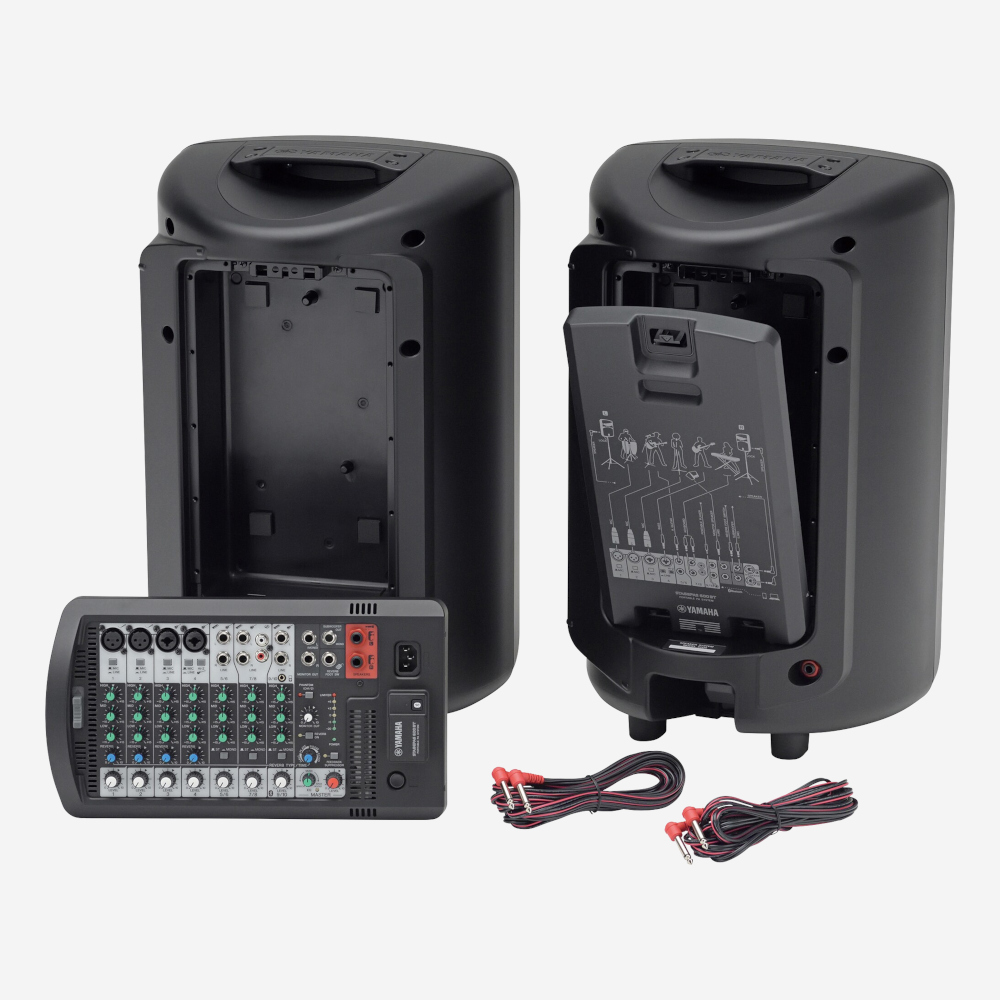

What’s Included
- Yamaha STAGEPAS 600BT Powered Mixer
- 2 × Passive Speakers
- Power Cord (2 m)
- 2 × Speaker Cables (6 m)
- Cover Panel
- Non-Skid Pads
- Ferrite Cores
- Cable Ties
