Description
Yamaha TF1 is a compact digital mixing console designed for live sound, installed audio, events, houses of worship, education, corporate AV and professional sound reinforcement.

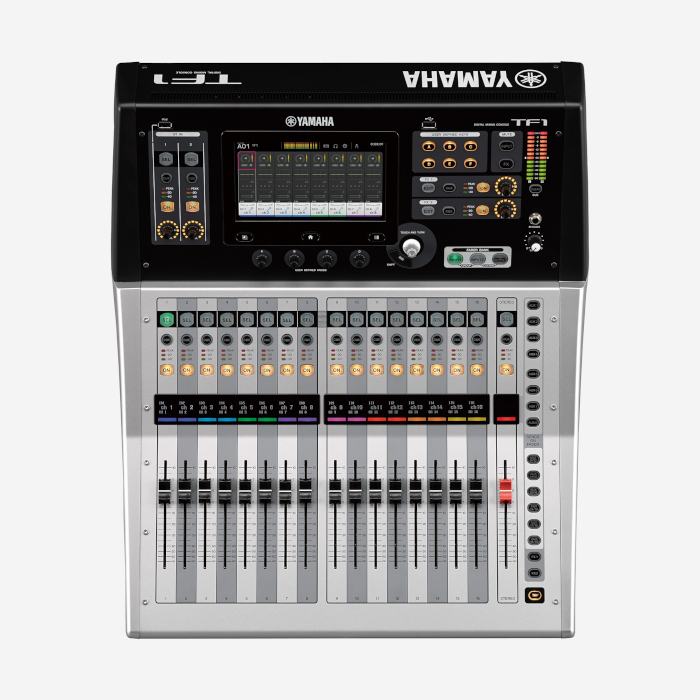

The TF1 provides 40 input mixing channels, consisting of 32 mono channels, 2 stereo channels and 2 return channels. Its control surface features 17 motorized faders: 16 channel faders plus 1 master fader.
Key Features
- 40 input mixing channels
- 32 mono + 2 stereo + 2 return channels
- 17 motorized faders
- 20 AUX buses
- 8 DCA groups with Roll-out

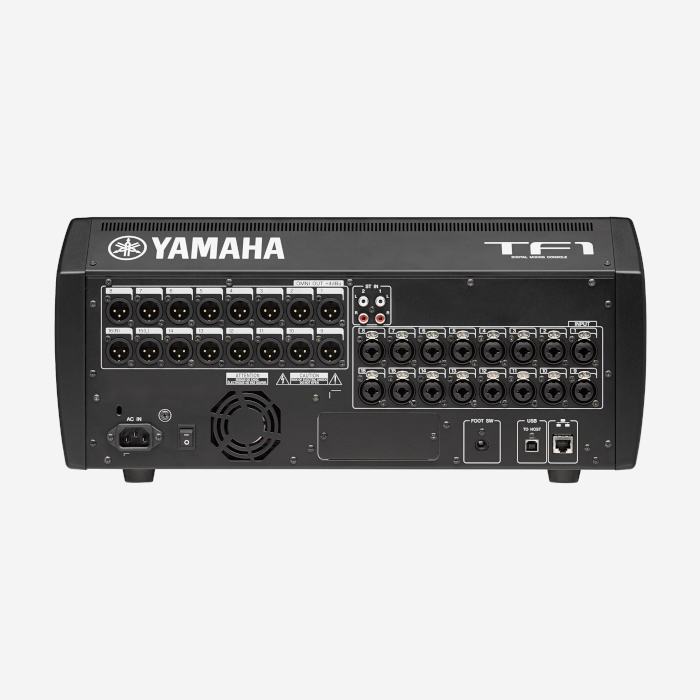

- 16 XLR/TRS combo Mic/Line inputs
- 2 stereo RCA line inputs
- 16 XLR analog outputs
- 34×34 USB 2.0 recording/playback
- 8 built-in effects
- 10 GEQ processors
- 48 kHz sampling rate
- Optional Dante via Yamaha NY64-D expansion card
Technical Specifications
| Input Mixing Channels | 40 |
|---|---|
| Mono Channels | 32 |
| Stereo Channels | 2 |
| Return Channels | 2 |
| Motorized Faders | 17 |
| AUX Buses | 20 |
| DCA Groups | 8 |
| Local Mic/Line Inputs | 16 |
| Stereo Line Inputs | 2 × RCA |
| Analog Outputs | 16 × XLR |
| USB I/O | 34 In / 34 Out |
| Built-in Effects | 8 |
| GEQ | 10 |
| Sampling Rate | 48 kHz |
| Dante | Optional via NY64-D |
| Dimensions | 510 × 225 × 599 mm |
| Weight | 13.5 kg |
Dante
The standard Yamaha TF1 does not include Dante as built-in hardware. Dante networking is available by installing the optional Yamaha NY64-D expansion card.
