Description

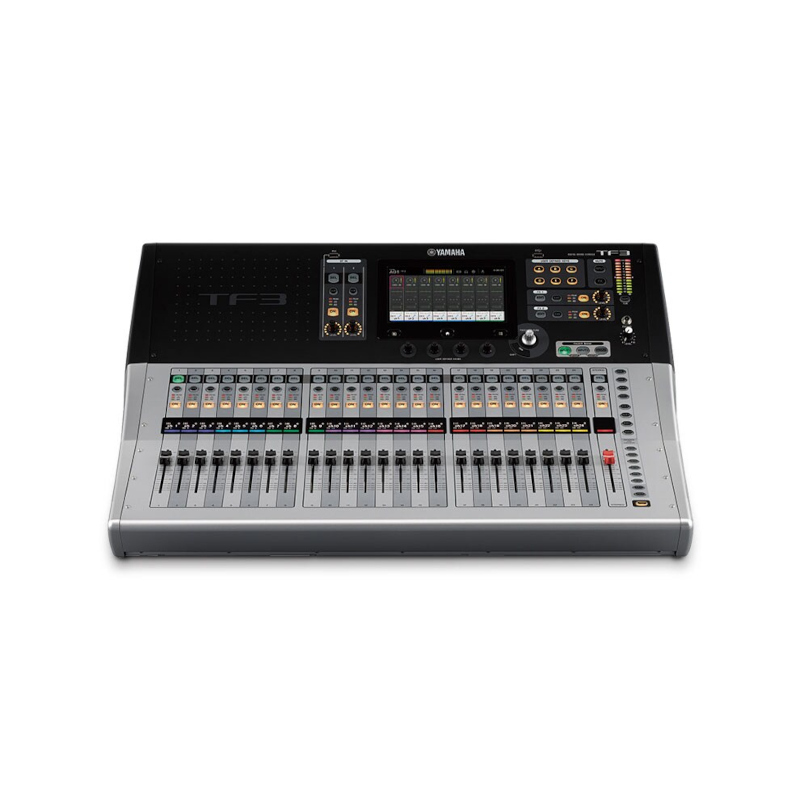

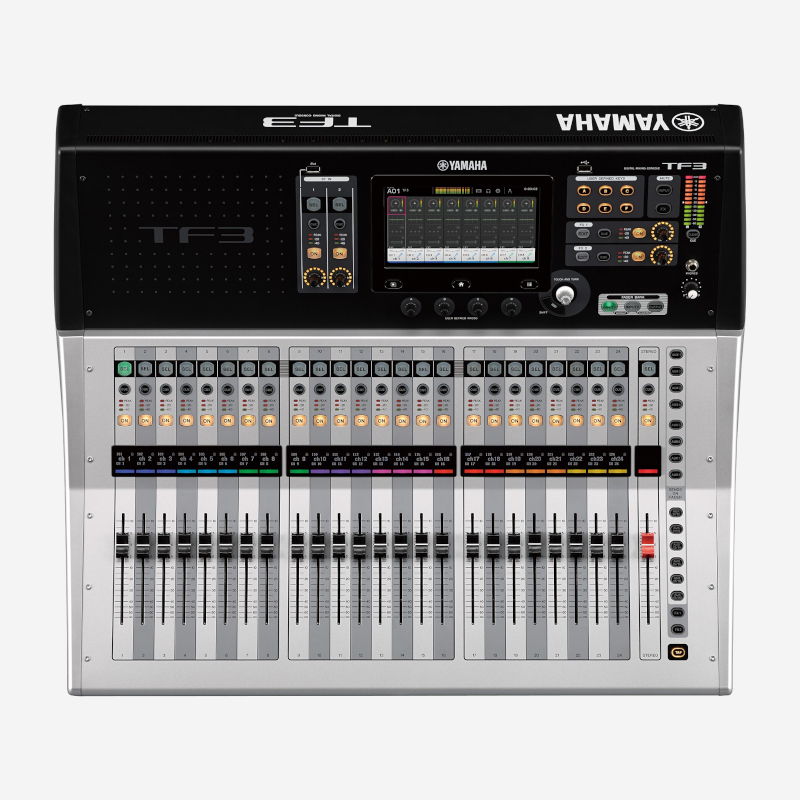

Yamaha TF3 is a professional digital mixing console designed for live sound, installed audio, corporate AV, houses of worship, education and events.
It provides 48 input mixing channels: 40 mono, 2 stereo and 2 return channels, with 25 motorized faders.
Key Features
- 48 input mixing channels
- 25 motorized faders
- 20 AUX buses
- 8 DCA groups
- 24 XLR/TRS combo Mic/Line inputs
- 2 stereo RCA inputs
- 16 XLR analog outputs
- 34×34 USB 2.0 recording/playback
- 8 built-in effects
- 10 GEQ processors
- 48 kHz sampling
- Optional Dante via NY64-D
Technical Specifications
| Input Channels | 48 |
|---|---|
| Mono Channels | 40 |
| Stereo Channels | 2 |
| Return Channels | 2 |
| Motorized Faders | 25 |
| AUX Buses | 20 |
| DCA Groups | 8 |
| Local Inputs | 24 × XLR/TRS Combo |
| Analog Outputs | 16 × XLR |
| USB I/O | 34 In / 34 Out |
| Dante | Optional via NY64-D |
| Dimensions | 716 × 225 × 599 mm |
| Weight | 17.0 kg |
