Description
Key Features And Benefits
Outstanding Data Processing Capability
MCore 4 is equipped with the advanced Intel Ultra5 125H processor, boasting exceptional data processing capabilities and powerful AI computing capability with its NPU. It ensures the efficient and smooth running of meetings while empowering intelligent conferencing, providing a highly efficient and stable operating environment and diverse immersive experiences for remote communication.
Ultra-High-Definition Screen Projection
To enhance your conference room projection experience, MCore 4 is specially equipped with an HDMI-In interface, supporting 4K resolution auxiliary stream input within the MVC system to deliver pristine image quality.
Flexible Pairing with Touch Console
To flexibly adapt to various types of conference room scenarios, MCore 4 supports connection to single or multiple control screens and offers two connection methods: wired (via network cable) and wireless (through local network pairing). You can freely choose according to the actual scenario without worrying about distance limitations, simplifying the difficulty of wiring.

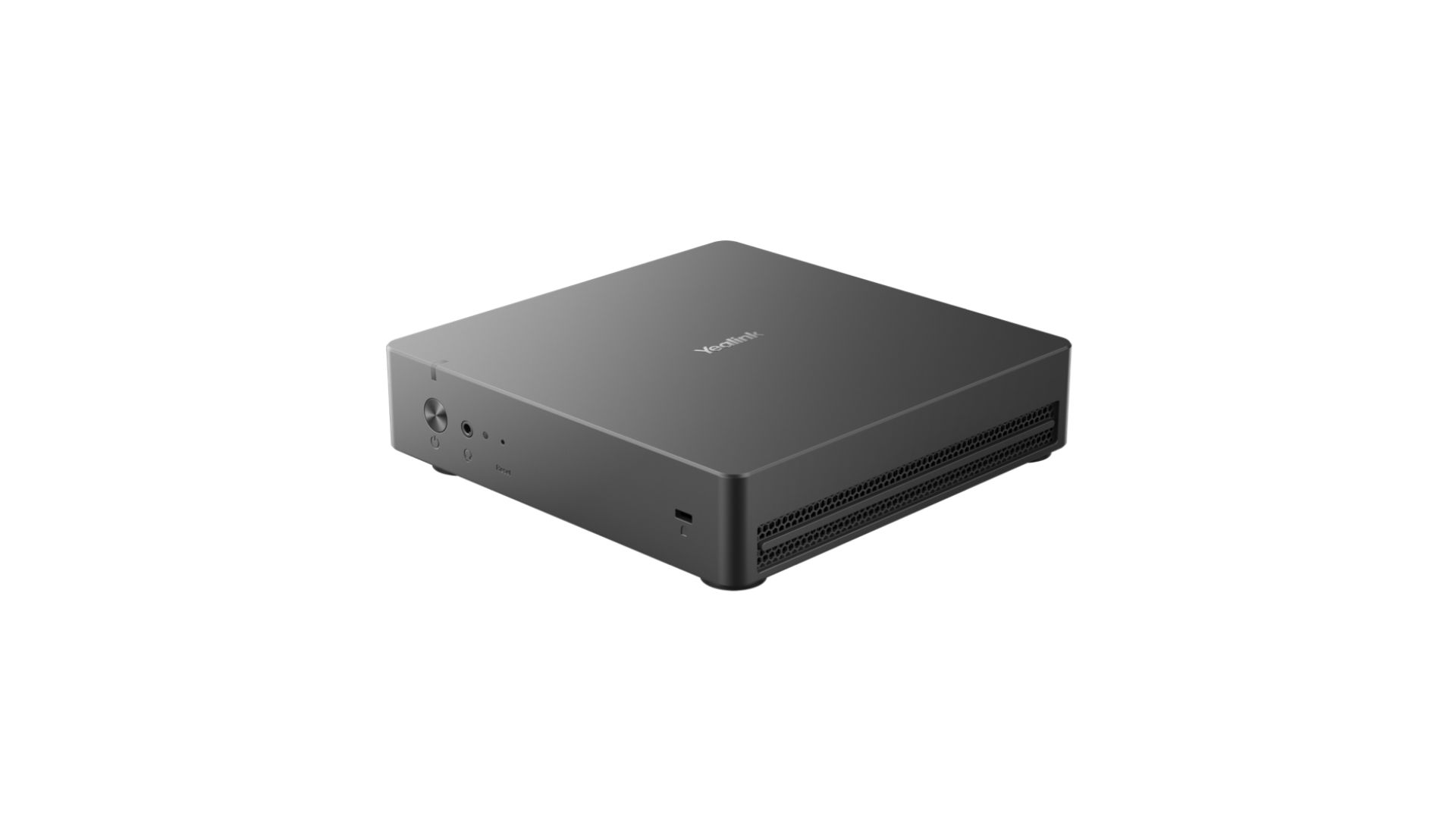

Exquisite Structural Design
To ensure the stability of cable connections, MCore 4 is designed with a cable locking structure to avoid cable redundancy issues. Additionally, its wall mount features cable management cover and hand-tightened screws, allowing for easy cable replacement without disassembling MCore4. The clever utilization of the device’s internal space makes wiring more convenient and worry-free.
Diverse and Simplify Deployment
MCore 4 supports multiple installation options, allowing it to be fixed on walls, behind TVs, or under desks according to actual scenarios, making full use of each corner of conference rooms.
Specifications
| Technical Parameter | Description |
|---|---|
| System Board |
• Processor: Intel Ultra5 125H • Memory: 16GB (2×8 GB) DDR5 • Storage: 256 GB SSD |
| System Preload |
• Windows 11 IoT Enterprise x64 operating system • Windows 11 IoT Enterprise license • Optional meeting software: • Microsoft Teams Rooms • Zoom Rooms • RingCentral Rooms |
| BIOS Features |
• Support TPM 2.0 • Support UEFI secure boot • Support kernel DMA • Support CEC • Support EDID • Support MIPI • Support vPro Essentials |

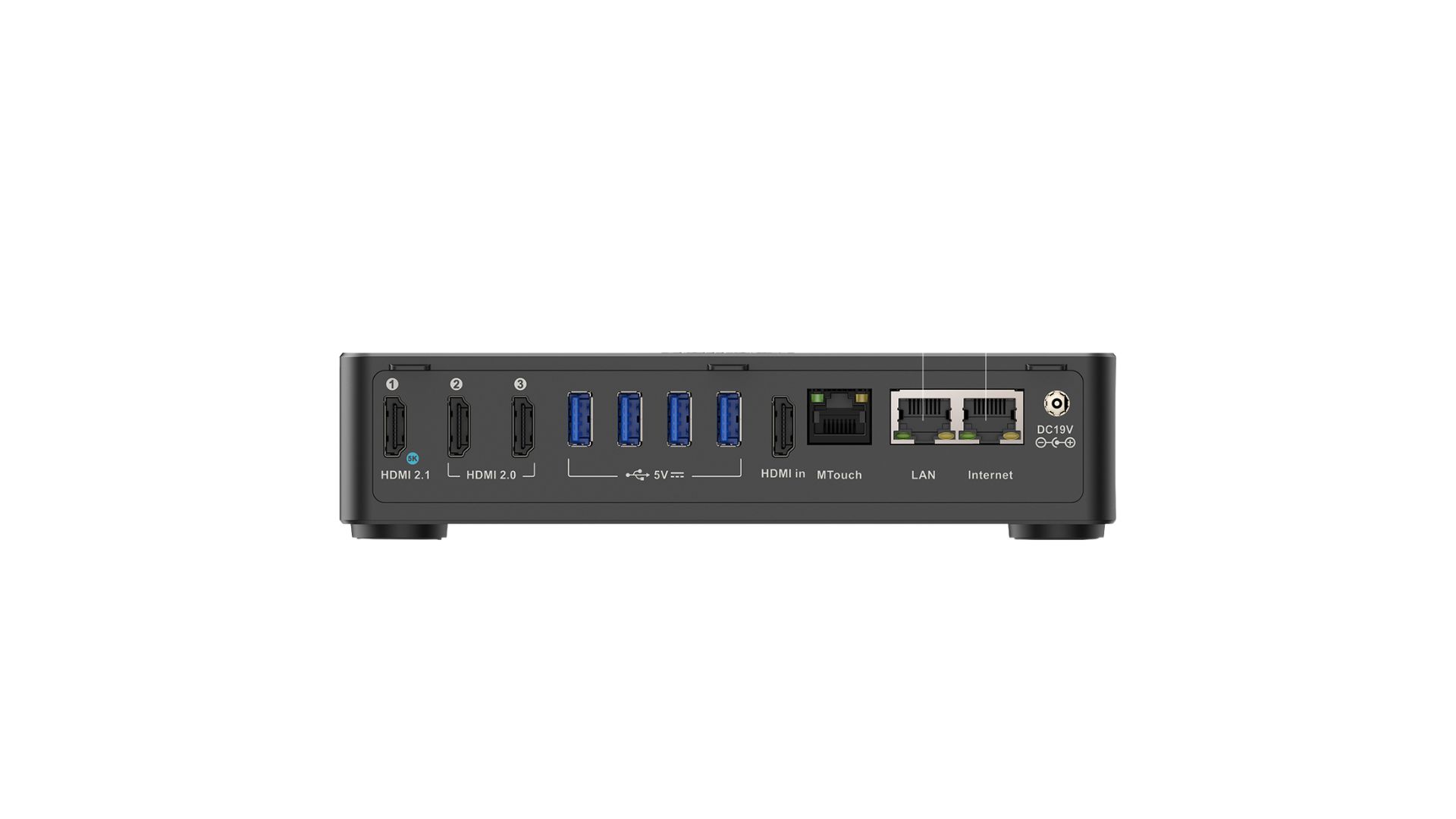

| Interface |
• 1 × HDMI-Out 2.1 port • 2 × HDMI-Out 2.0 ports • 1 × HDMI-In port • 4 × USB3.0 Type-A ports • 1 × MTouch port (RJ-45) • 1 × LAN port for AV network • 1 × 10/100/1000 gigabit Ethernet port • 1 × power supply port • 1 × 3.5 mm headphone port • 1 × reset port • 1 × security slot • Wi-Fi: IEEE 802.11 a/b/g/n/ac/ax • Bluetooth: BT5.2 |
| Package Contents |
• 1 × Yealink MCore 4 • 1 × Power supply • 1 × Wall mount • 1 × HDMI 2.1 cable • 2 × HDMI 2.0 cable • 1 × Quick start guide |
| Dimensions |
• 188 × 188 × 47.5 mm |
