Description

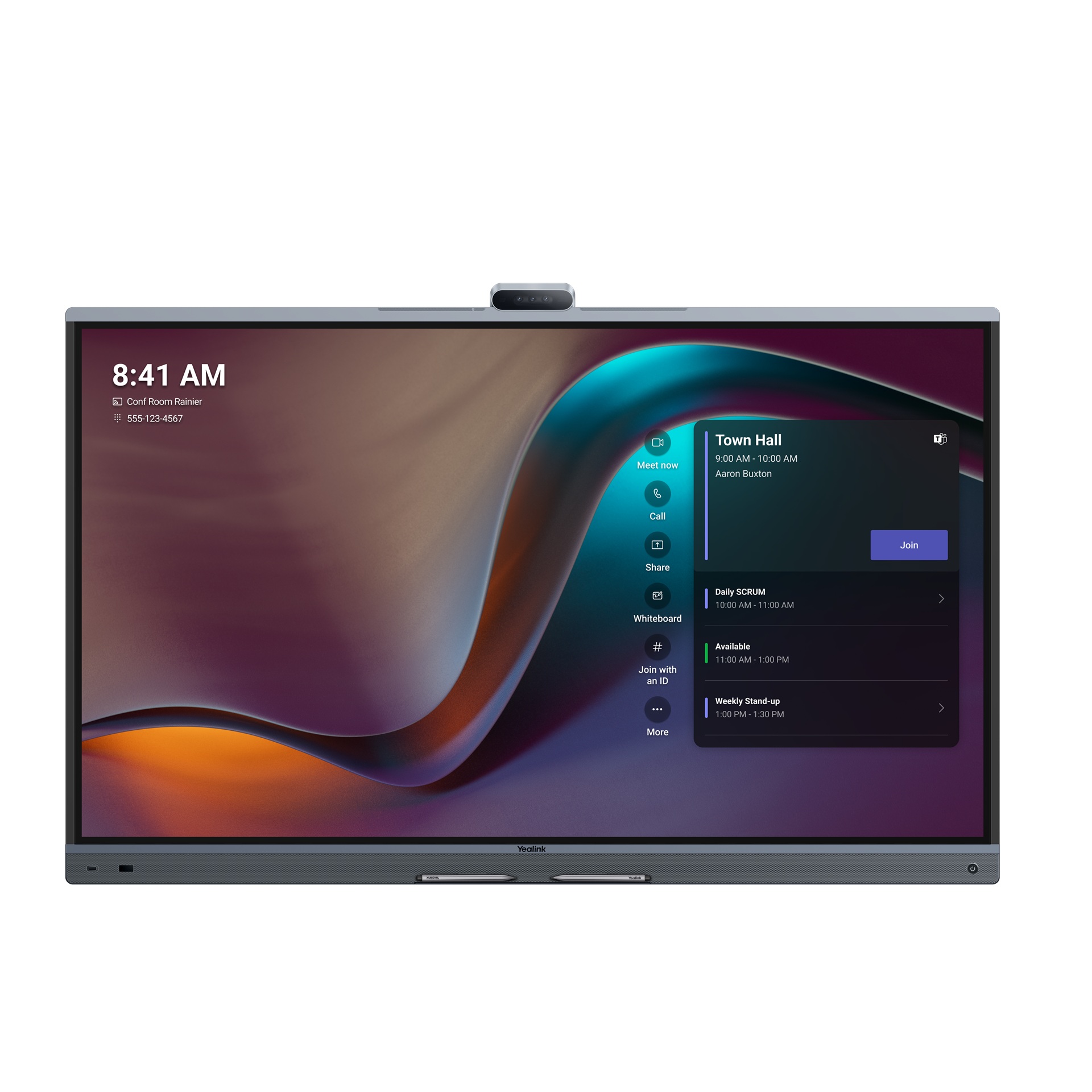

The Yealink MeetingBoard Pro 65 is the latest all-in-one meeting device designed for small to large rooms. This intelligent meeting device integrates video conferencing, HD wireless content sharing, and an electronic whiteboard, supporting up to 4K video call quality. Its all-in-one design and flexible mounting options offer easy installation and are perfect for seamless video conferencing. This product delivers cutting-edge audio and video communication capabilities, powered by advanced AI technology, ensuring crystal-clear sound and ultra-HD visuals. With intelligent full-duplex, IntelliFocus, and video fence, it redefines the video conferencing experience, bringing unparalleled clarity and efficiency to every meeting. The MeetingBoard Pro also supports native Teams and Zoom and is certified by both platforms.
Key Features
All-in-one design, streamlined installation and deployment
Yealink MeetingBoard Pro features an all-in-one design with flexible wall-mounting and floor-stand options, simplifying installation and deployment. Its clean design allows setup in just 12 minutes. By integrating meeting, display, and whiteboard functions into a single device, it also reduces management complexity.
Built-in triple-camera system with 50MP resolution
MeetingBoard Pro features three 50MP cameras: one wide-angle camera with a 1/1.56-inch Sony sensor and two telephoto cameras with 1/2-inch Sony sensors. This setup delivers high-resolution imaging across different focal lengths, with natural colors, low noise, and HD image quality. An automatic physical privacy shutter protects user privacy when the cameras are not in use. The system also supports the external MB-12X Pro PTZ camera, offering optical zoom for long-distance tracking and lossless 4K zoom for close-ups.
AI-powered camera tracking for immersive meetings
Powered by a dedicated AI video processor, MeetingBoard Pro supports auto framing, speaker tracking, Picture-in-Picture (PIP)\*, IntelliFocus, Video Fence, and Audio Fence. These features provide fast, seamless tracking for a smoother meeting experience. IntelliFocus displays close-ups of the most recent active speakers alongside a panoramic view of participants at the bottom of the screen, helping more people stay visible and engaged. Video Fence creates virtual meeting boundaries in semi-open environments to prevent non-participants from being mistakenly tracked.
AI-enhanced audio with professional sound quality
A built-in 16-microphone array, stereo speakers, and dedicated AI audio processing chip deliver clear voice pickup, noise cancellation, and reverberation reduction. Supporting full-duplex calls with a 12-meter pickup range, MeetingBoard Pro captures voices throughout the conference room. Intelligent noise cancellation reduces distractions from keyboard typing, doors opening or closing, and chairs moving, while reverberation reduction improves clarity in rooms with glass walls. It also supports external wired and wireless desktop microphones and ceiling microphones to extend pickup coverage in larger spaces.
Intelligent whiteboard with ultra-low-latency writing
MeetingBoard Pro supports simultaneous writing by two users, including one user writing while another erases, without interference. Palm rejection keeps content clean and precise. The four-level stylus provides smooth, paper-like writing, with the pen tip for writing and the pen tail for erasing. Gesture controls support drawing and palm erasing, while intelligent charts, shapes, image insertion, and sticky notes make collaboration more dynamic.
Open ecosystem with flexible multi-platform conferencing
MeetingBoard Pro supports leading video conferencing platforms, including Microsoft Teams and Zoom, along with other certified platforms. Its USB peripheral mode (BYOD) lets users connect a computer and use the device as an external display and audio system for a larger-screen meeting experience. It also supports an OPS module running Windows to meet specialized application needs in sectors such as education and manufacturing.
Compatible with Yealink room accessories
MeetingBoard Pro supports wireless and wired expansion microphones, the MB-12X Pro external PTZ camera, touch panels, movable stands, and 4K wireless presentation pods. These accessories provide flexible configurations for different meeting room sizes and collaboration needs.
Specifications
| Technical Parameter | Description |
|---|---|
| System Overview |
• Operating System: Android 13.0 • Storage: • Memory: 8 GB • Flash: 64 GB • CPU: 4 cores at 2.2 GHz + 4 cores at 2.0 GHz • AI Computing Power: 13.2T FLOPS |
| Display |
• Size: 65 inch • Anti-Glare Panel • Resolution: 3840 × 2160 • Color Gamut: 72% NTSC/99% sRGB • Color Depth: 1.07G (10 bit) • Contrast Ratio: 1200:1 • Brightness: 400 cd/㎡ • Refresh Rate: 60 Hz • Viewing Angle: 178°(H)/178°(V) • System Wake-Up: Motion Sensor |
| Touch |
• Touch Technology: Infrared • Touch Height: 1.5 mm • Touch Accuracy: ±1 mm • Touch Points: 20 points • Touch latency: 21 ms（Measured under yealink whiteboard） • Four-level stylus |
| Camera |
• Max Resolution: Built-in triple 50MP camera • Image Sensor: Sony Sensor X3 • Viewing Angle: Wide-Angle HFOV 98.2° • PTZ Type: Electronic Pan-Tilt • Zoom/Digital Zoom: 8 × digital zoom • Max Resolution: 3840 × 2160 • Max Frame Rate: 60 Hz • Video Output Resolution: 3840 × 2160 • Autofocus: Supported • Wide Dynamic Range: Supported • High Dynamic Range Imaging: Supported • Exposure: Auto • White Balance: Auto/Manual/ATW • Number of Presets: 9 • Privacy shutter: Electric privacy shutter • Swappable Optical Zoom Camera Module • MB-12X Pro: • 8MP, Sony Image Sensor • 12× Optical Zoom • Lens Angle: HFOV 90° • Horizontal Rotation: ±100° • Vertical rotation: 0°/-90° • AI Smart Framing: • Auto Framing • Speaker tracking • Picture-in-picture (PIP) • IntelliFocus • Video fence |
| Speakers |
• Speakers: Stereo Speakers • Frequency Response: 90~20 KHz • Sensitivity: 87±3 dB SPL @ 0.5 m, 1 W • Sampling Rate: 48 KHz • Expansion Output: Supports RCA Output • THD (Total Harmonic Distortion): at 20 W, 1 KHz, < 5% • Rated Impedance: Tweeter-4ohm，Full-Range Speaker-8ohm • Rated Power: 30 W • Max Power: 36 W |
| Microphones |
• Built-in 16 MEMS Microphone Array • Pickup Distance: 12 Meters Full-Duplex • Signal-to-Noise Ratio: 70 dB @ 1 KHz • Max Sound Pressure Level: 130 dB SPL • Equivalent Noise Level: 24 dB SPL • Dynamic Range: 24-130 dB SPL • Sensitivity: -38 ± 1 dBV/Pa • Frequency Response: 20 Hz~20 KHz • Sampling Rate: 48 KHz • Bit Depth: 24-bit • Expansion Input: Supports RCA Input |
| Video Resolution |
• Lens Resolution: supports up to 4K 30 fps • Content Sharing: supports up to 4K 60 fps (HDMI In) locally, and up to 4K 15 fps in meetings |
| Content Sharing |
• Wired Screen Sharing: • HDMI In • VCH51 • Wireless Screen Sharing: • AirPlay • Miracast • Wireless Presentation Pod (unavailable in the United States) |
| Audio Codec and Technology |
• Yealink AI Audio 2.1 • Multi-Channel Echo Cancellation Processing • Noise Suppression Technology • Multi-Channel Reverberation Cancellation Technology • Multi-Channel Acoustic Echo Cancellation • Lip Sync Detection • Automatic Gain Control • Far-Field Full-Duplex Pickup Technology • Beamforming Directional Pickup Technology • CNG/PLC/AJB/De-Reverb |
| Video Codec and Technology |
• Video Codecs: H.264 SVC, H.264 High Profile, and H.264 |
| Network Protocols |
• Wi-Fi 6: • 2.4 G & 5 G dual-band, 802.11a/b/g/n/ac/ax • 2 × 2 MIMO • Bluetooth 5.1 • TCP/IP (IPv4/IPv6), DHCP/Static IP • HTTPS Secure Web Access |
| Security |
• Encryption Protocols: supports H.235/TLS/signaling encryption • Encryption Algorithms: supports SRTP media stream encryption and AES-256 encryption • Security Mechanisms: supports VLAN, 802.1P/Q, DiffServ, and other QoS services • Security Protocols: supports 802.1X, LLDP-MED, and other network security protocols • Web Security: supports HTTPS web security management • Secure Connection: supports OpenVPN • Other Security Mechanisms: • Built-in Security Encryption Certificate • Protection Against Network and Protocol Attacks • Meeting Password to Ensure Meeting Security • Meeting Whitelist and Blacklist |
| Configuration Management |
• Configuration Methods: Web/Device/Touch Screen • Debugging Interface: RJ45/USB 2.0 • Upgrade Methods: Web/TAC/ZDM/USB • Device Management: Yealink Management Cloud Service (YMCS), Microsoft Teams Admin Center (TAC), MTR Portal Management Platform (PMP), Zoom Device Platform (ZDM) • Batch Deployment Tool: supported • SNMP Protocol: supported |
| Hardware Description |
• Power Switch (with power status indicator light) • Reset Button • 1 LED MUTE Light • Human Motion Sensor (for automatic device wake-up) |
| Installation Methods |
• Wall-Mounted Installation • Wall-Stand Installation • Floor-Stand Installation |
| Hardware Interfaces |
• Display Output Interface: 1 × HDMI Output Interface (supports CEC) • Content Input Interface: 1 × HDMI Input Interface • Line Input Interface: 1 Pair of RCA Line Inputs • Line Output Interface: 1 Pair of RCA Line Outputs • 3 × USB-A 2.0 Interfaces • 2 × 10/100/1000 Mbps Adaptive Network Ports • 2 × RJ45 VCH Custom Interfaces, for Wired Expansion Microphones/Wired Sharing Box, etc. • 1 × Windows OPS Slot • 1 × AC Power Interface • 1 × USB-B Touch Output Interface • 1 × Pluggable Camera Module Interface (on the top) |
| Packaging |
• 1 × MeetingBoard 65 Pro • 1 × Cable Pack: • 1 × 3 m AC Power Cable • 1 × 3 m CAT5E Network Cable • 4 × Stylus Pens • 3 × Cable Ties • 1 × Quick Start Guide • *MB-WallMount is sold separately and is not standard. |
| Environmental Factors |
• Operating Humidity: 5~95% • Operating Temperature: 0~40 °C • Storage Temperature: -20~60 °C |
| Power Supply |
• Power Consumption: • Max: 243 W • Typical: 141 W • Power adapter: 100-240 V~50/60 Hz • USB output: 5 V~0.5 A |
| Optional Accessories |
• Mounting Accessories: • Wall Mount: • MB-WallMount-650: for 65-inch • Wall Stand: • MB-WallStand-650W: for 65-inch • Floor Stand: • MB-FS-P650T: for 65-inch • MB-FS-Lift: for 65-inch, 75-inch & 86-inch • Audio Accessories: • Wired Microphone: VCM35 • Wireless Microphone: VCM36-W • Ceiling Speaker: CS10 • Celling Microphone: CM20 • Casting Accessories: • Wireless Presentation Pod • Wired Sharing Box: VCH51&VCH51 Pro • Camera Accessories: • Pluggable Optical Zoom Camera Module MB-12X Pro • Video Conferencing Camera UVC86 • Controller: • Touch Panel CTP25 • Remote Controller MB-Remote • Windows OPS Module: • MCore-OPS • MCore-OPS-T (Teams Certified) • MCore-OPS-G2 • MCore-OPS-G2T (Teams Certified) |
| Dimensions And Weight |
• Packaging Dimensions (W x D x H): 1660 x 220 x 1045 mm • Bare Device Dimensions (W x D x H): 1484 x 91 x 955 mm • With Stand Dimensions (W x D x H): 1484 x 795 x 1887 mm • VESA Hole: 600 x 400 mm • Gross Weight: 50 kg (110.2 lbs) • Net Weight: 40 kg (88.2 lbs) • Quantity: 1 unit/box |
