Description

Benefits

Rich visual Experience

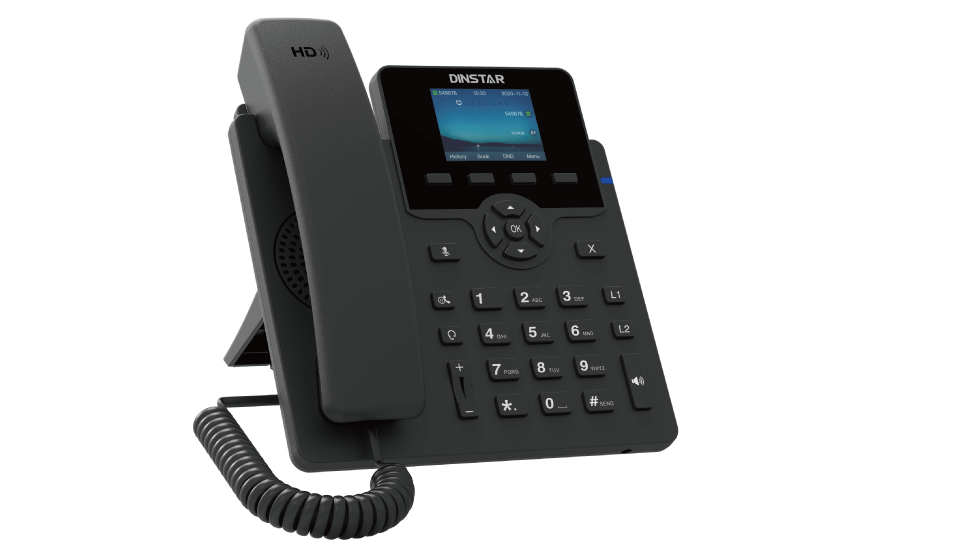

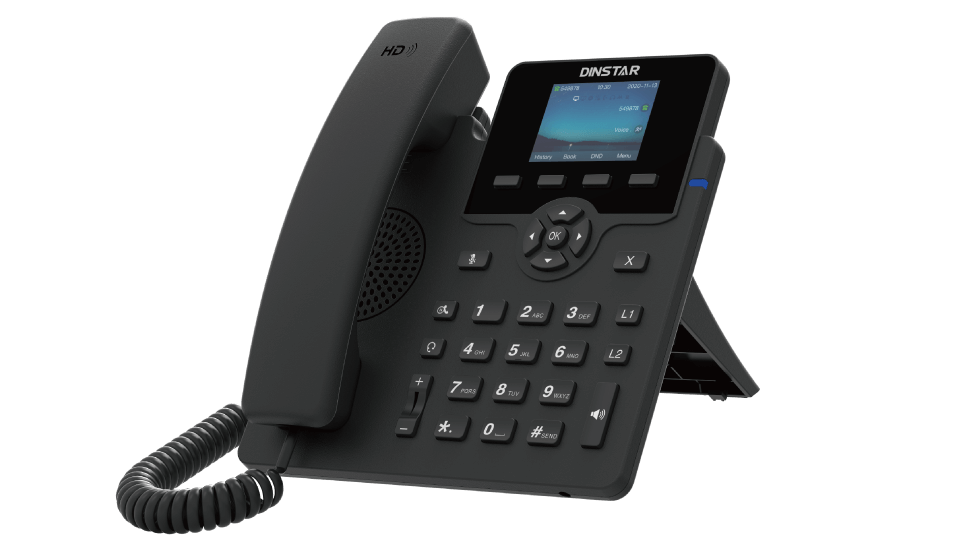

The C62U/C62UP is an entry-level IP phone, and the C62U/C62UP features a 2.4" high-resolution color TFT display with backlight, which takes visual effects to a new level. The freely programmable multi-color function keys provide users with a high degree of usability. Each function key can be configured for various one-touch phone functions such as speed dial, busy lamp field, etc.

High Quality Audio

The full duplex speaker and microphone system and the Digital Signal Processor (DSP) ensure that the C62U/C62UP delivers high audio quality. Whether you use the hands-free speakerphone or the handset, you will always have good experience and crystal-clear call quality.

Good Compatibility

Based on RFC3261, the C62U/C62UP has been tested to ensure good compatibility with leading IP telephony system and equipment. The C62G/C62GP not only supports DinstarUC/IPPBX products, also supports many third-party IPPBXs such as 3CX, Asterisk, Yeastar, Xorcom, VoIP.ms and so on.

Key Features

• HD Voice
• Up to 6 SIP Accounts
• 2 Line keys
• 5-way Conference
• 2.4” 240 x 320 pixel TFT LCD with Backlight
• Dual-port Gigabit Ethernet
• Support Power over Ethernet (PoE)
• Support EHS wireless heads (Plantronics, Jabra, Sennheiser)
• Stand with 2 adjustable angles
• Full Compatible with 3CX, Asterisk, Yeastar, Xorcom, VoIP.ms, Broadsoft, FreeSWITCH Platform etc.

Specifications

Call Features

• 6 SIP Accounts
• Call Waiting
• Call Forward
• Blind/attended transfer
• Call hold, Call mute, DND mode
• Speed Dialing, Hotline
• Redial, Call Return
• Auto-redial, Auto-answer
• Dial Plan
• 5-way conference
• Peer Dialing

Phone Features

• Adjustable Voice Volume
• Selectable Ring Tones
• XML Browser
• Action URL/URI
• Keyboard lock
• Programmable DSS keys
• Phonebook: 1,000 Groups
• Blacklist: 100 Groups
• Call Log: 100 Logs
• Support 5 Remote Phonebook URLs
• LDAP
• Support Multiple Languages
• Support EHS wireless headset(Plantronics, Jabra, Sennheiser)

IP-PBX Features

• SMS, Voicemail, MWI
• Music On-hold, Intercom, Multicast
• Call Pickup, Call Pickup in Group
• Anonymous Call
• Anonymous Call Rejection

Management

• Auto provisioning: FTP/TFTP/HTTP/HTTPS/PnP
• Configuration via HTTP/HTTPS web
• SNMP, TR069
• Network capture
• NTP/Daylight saving time
• Firmware upgrade via web
• Syslog
• Configuration backup/restore
• Equipment Management System (NMS）

Audio

• HD Voice
• Wideband Codec: G.722, OPUS-WB
• Narrowband Codec: PCMA, PCMU, G.729, G723, G726, AMR, OPUS, iLBC
• Echo Cancellation/Dynamic Jitter
• Voice Activity Detection (VAD)
• Comfort Noise Generation (CNG)
• Full-duplex Speaker

Protocols & Standards

• SIP v1 (RFC2543), SIP v2 (RFC3261)
• SIP over TLS, SRTP
• TCP/IP/UDP
• RTP/RTCP, RFC2198, RFC1889
• HTTP/HTTPS/FTP/TFTP
• ARP/RARP/ICMP/NTP/DHCP
• DNS SRV/ A Query/NATPR Query
• STUN, Session Timer (RFC4028)
• DTMF: In-Band, RFC2833, SIP INFO
• LLDP
• OpenVPN, 802.1X

Physical Features

• Color 2.4" High resolution screen (240×320)
• Dimensions(approx.): 180x192x36mm(WxLxD) without foot stand
• Weight(approx.): device 370g , foot stand 60g
• Input voltage: 5Vdc
• Power supply: 5Vdc power adapter or PoE
• Power consumption: 1.4W
• PoE IEEE802.3af
• Handset: 4P4C, RJ9
• Headset: 4P4C, RJ9
• Environmental conditions: Operation temperature: 0~40°C Humidity: 10% to 95% (non-condensing)
• 2xRJ45 10/100/1000M Ethernet Ports
• Wall Mountable
