Description

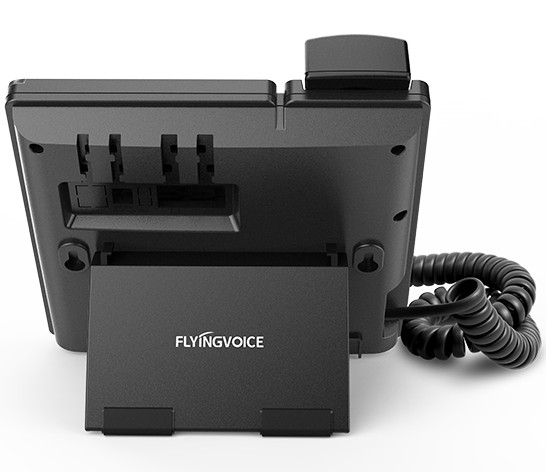

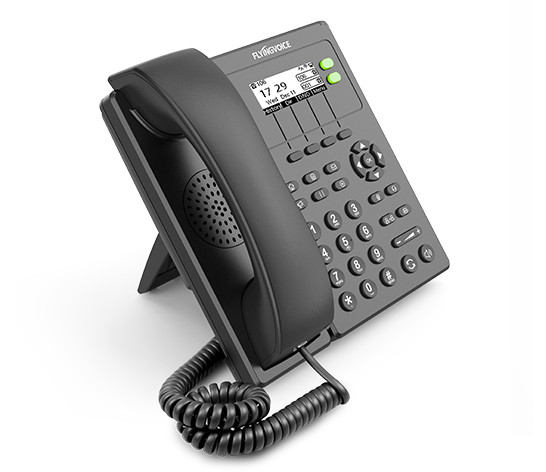

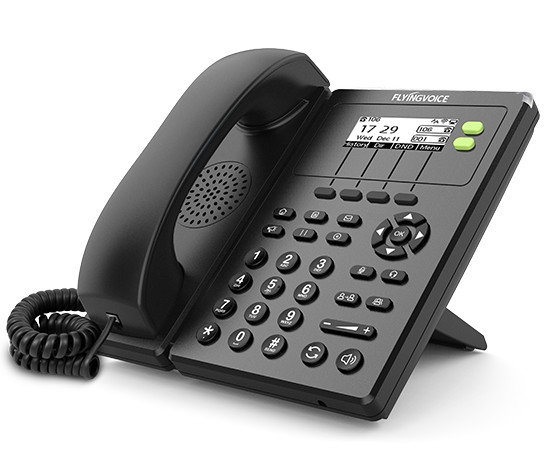

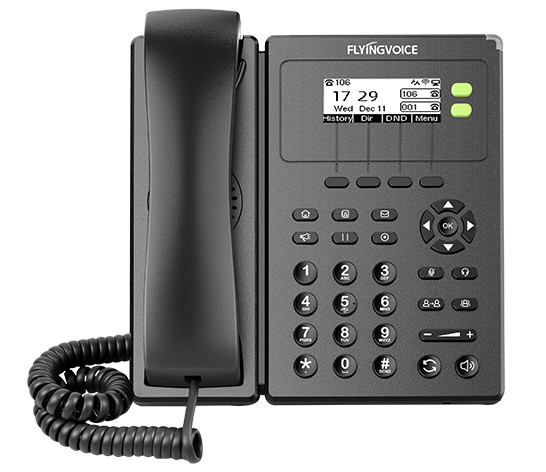

FIP10

Entry-level 2-Line IP Phone

FIP10 is an entry-level business IP phone with a 128×64 backlit display. It supports 2 SIP accounts, 6-way conferencing, and the RJ9 headset jack is compatible with all major headset brands today. Benefit from flexible deployment utilizing the 2.4G Wi-Fi frequency spectrum. Get this feature-rich yet cost-effective VoIP phone with enhanced voice quality for virtuallyanytelephone application.

Benefits

Simple and Easy to Use UI Design

FIP10 comes with a simple design yet ergonomic design that is easy to use. Prompts guide you through a simple installation process makingiteasyto startavoice collaboration.

Flexible Deployment

Whether in your office or conference room, say goodbye to the complex deployments, connect with people the way you like. FIP10 supports dual 10/100 Mbps ports, and a built-in 2.4G Wi-Ficonnection.

HD Voice Quality

FIP10 provides excellent voice quality. We created high-definition sound quality solutions for handset scenarios, even in a noisy environment.

High Security and compatibility

All conversations are secure. We make use of security algorithms such as configuration files utilising AES, SRTP and TLS call encryption. FIP16Plus is compatible with SIP-based PBX platformssuch as Asterisk, Broadsoft and 3CX.

Key Features

• 128x64px backlit LCD display
• 2 SIP accounts
• 2 DSS/BLF keys
• HD voice
• Opus
• 2x 10/100 Mbps Ethernet port
• PoE (FIP10P Only)
• Stand with3 adjustable angles
• RJ9 headset
• 6-Way conferencing
• 2.4G Wi-Fi
• Wall mountable

Specifications

Audio Features

• HD voice: HD handset
• Wideband Codec: G.722, Opus, AMR-WB(Optional), G.711WB(Optional)
• Narrowband Codec: G.711(A/u), iLBC, G.729A/B, G.723, G.726, AMR-NB(Optional)
• DTMF: In-band, RFC 2833, SIP INFO
• Full-duplex hands-free speakerphone
• VAD, CNG, AEC, PLC, AJB, AGC

Phone Features

• 2 SIP accounts
• Call hold, mute, DND, redial, auto answer
• One-touch speed dial, hotline, SMS
• Call forward, call waiting, call transfer (attended/blind)
• Paging, intercom
• 6-Way conferencing
• Direct IP call withoutSIP proxy
• Set date time manually or automatically (SNTP)
• Dial rule
• IP conflict detection
• 2.4GHz Wi-Fi
• Up to 2 DSS/BLF keys

Directory

• Phone book (2000 records)
• Black list
• XML/LDAP remote phonebook
• Phonebook search/import/export
• Call history: dialed/received/missed (60 records)

IP-PBX Features

• BLF
• Anonymous call, anonymous call rejection
• Voice mail, call park, call pickup
• Message waiting indicator (MWI)

Feature Keys

• 2 Line keys
• 7 features keys: message, headset, hold, mute, transfer, redial, hands-free speakerphone
• 4 Soft Keys
• 5 Navigate Keys
• Volume+/-

Display and Indicator

• 128 x 64pxbacklitB/W LCD screen
• 16-bit depth color
• LED for call and message waiting indication
• Dual-color (red/green) illuminated LEDs for line status information
• Intuitive user interface with iconsand soft keys
• Multilingual user interface
• CallerID with nameand number
• Power saving feature

Interface

• 2 x RJ45 Ports (Ethernet 10/100 Base-T)
• 1xRJ9 Handset port
• 1xRJ9 Headset port
• 1x Power adapter

Management

• Configuration : browser/phone/auto-provision
• FTP/TFTP/HTTP/HTTPS for Auto Provisioning
• TR069（TR104/TR106）
• Reset to factory, reboot
• Package tracing export, systemlog
• DNS/DNS SRV (RFC1706, RFC2782)
• NAPTR for SIP URI lookup (RFC 2915)
• Cloud device management: FCMS
• DHCP server and DHCP client

Network and Security

• SIP v1 (RFC2543), v2 (RFC3261)
• Call server redundancy supported
• NAT Traversal By STUN
• Proxy mode and peer-to-peer SIP link mode
• IP assignment : Static IP and DHCP
• HTTP/HTTPS web server
• Time and date synchronization using SNTP
• SDP (RFC2327), UDP/TCP
• Mutil-VLAN, DSCP and 802.1p QoS
• SRTP
• TLS
• HTTPS certificate manager
• AES encryption for configuration file
• Digest authentication
• IEEE802.1X, OpenVPN
• IPv4 /IPv6, Dual stack IPv4/IPv6
• RTP/RTCP (RFC1889, RFC1890)
• ARP/RARP (RFC826/903)
• IEEE802.1Q VLAN/802.1p/DSCP
• LLDP/CDP/DHCPVLAN

Others

• Color: Classic grey
• Stand with 3 adjustable angles
• Wallmountable
• AC/DC Adapter,  AC Input: 100~240V, 50~60Hz, DC Output: 5V, 1A
• Power consumption (PSU): 1.5-3.5W
• Battery: 4000mA Battery
• Dimension (W x H x T): 190mm x 188.5mm x 41.5mm
• Relative humidity: 10%~90% No Condensing
• Storage temperature: -25~ 65°C
• Operation temperature: 0~45°C

Package Contents

• Flyingvoice  FIP10 IP Phone
• Handset with handset cord
• Ethernet cable
• Stand
• Quick start guide
• Power adapter (Optional)
• Qty/CTN: 10 PCS
• N.W/CTN: 8.75kg
• G.W/CTN: 9.48 kg
• Giftbox size: 270mm x 195mm x 78mm
• Carton meas: 420mm x 420mm x290mm
