Description

P20

Dual-line business IP Phone

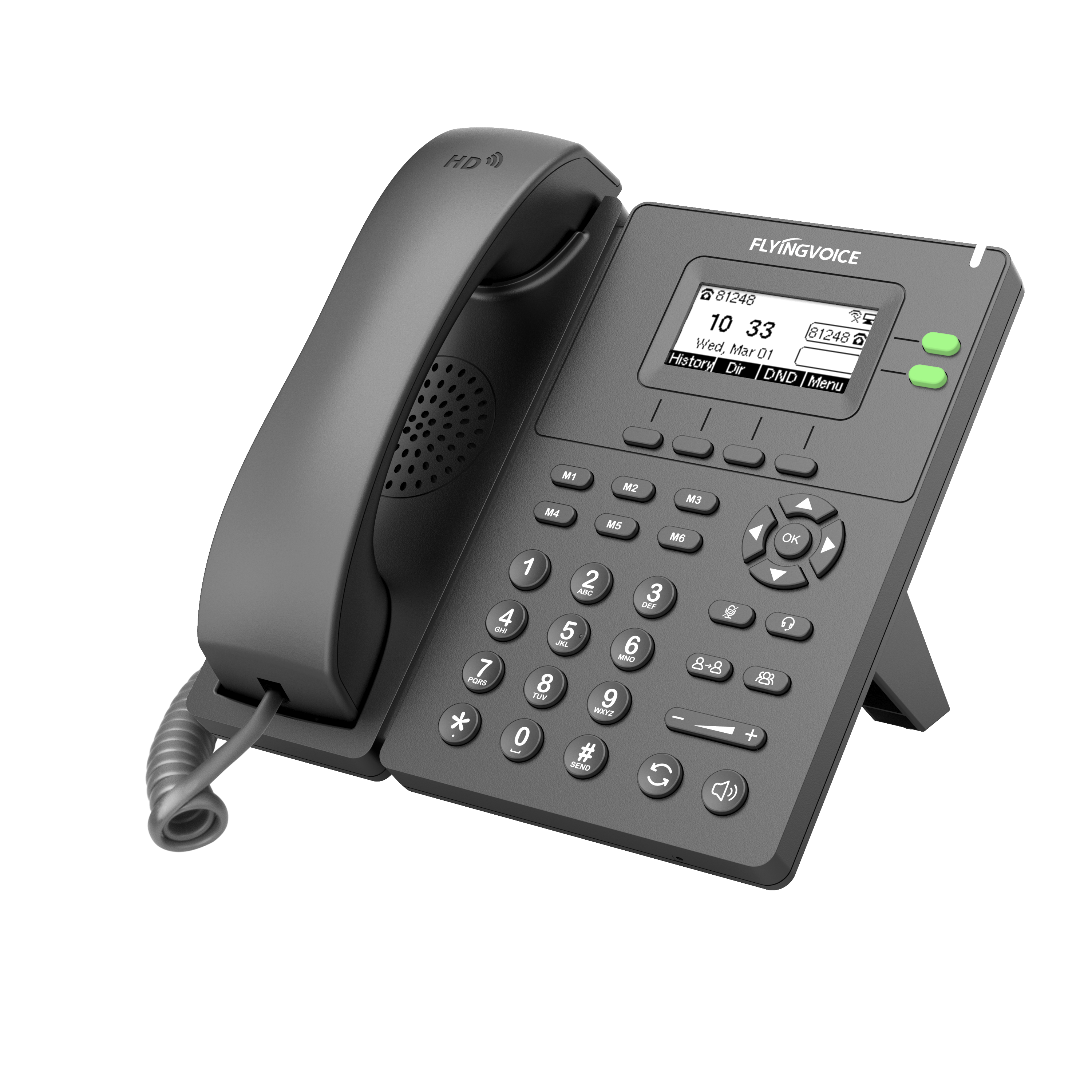

P20 Series enterprise wireless WiFi phone, equipped with 132×64 pixel black and white LCD screen with backlight, providing users with a clear visual experience. And P20 series have 6 speed dial M keys, to achieve a one-click speed dial, easy to operate, and improves call efficiency.P20 series integrates 2.4GHz WiFi, users can choose the adaptable model according to the demand of Gigabit Ethernet port, PoE supply to meet different scenarios of enterprise office. Integrated USB2.0 interface supports USB flash drive, EHS10 adapter, Bluetooth dongle, allowing you to experience rich expansion capabilities. At the same time, P20 series all support 6- way local voice conferencing call, helping you to enhance the efficiency of multi-person

Benefits

HD voice, Better calls

Flyingvoice P20 Series supports Opus wideband codec with advanced echo cancellation technology and intelligent noise cancellation technology to provide users with high-definition voice for better quality voice calls.

Convenient Networking, More Comfortable Calls

P20 Series is integrated with 100/1000M dual Ethernet ports, built-in 2.4GHz WiFi, PoE, via the networking characteristics of different models, users can choose machines that adapt to the corporate office environment to meet the needs of different application scenarios.

USB expansion to meet more application scenarios

Integrated USB 2.0 interface, users can choose according to different models, USB flash drive, EHS10 adapter, Bluetooth dongle to access to achieve the USB recording, as well as DECT wireless headset, Bluetooth wireless headset, providing users with wireless office services.

Easy Deployment

P20 Series can be easily to deploy and manage by online platforms such as FACS and FRPS and auto-provisioning modes FTP/TFTP/HTTP/HTTPS/TR069, greatly saving on operation and maintenance costs for IT departments.

Specifications

Phone Features

• LCD Screen :  132×64px backlit B/W LCD screen
• Function Keys :  > 12 Function Keys: M1, M2, M3, M4, M5, M6, mute, headset, transfer, redial, speakerphone, 2 Line key, 4 Soft Keys, 5 Navigate Keys, Volume+/-
• SIP Accounts :  2 SIP accounts
• Wi-Fi :  2.4GHz
• USB Port :  USB call recording through USB flash drive, Wireless Headset Adapter EHS10, Bluetooth dongle

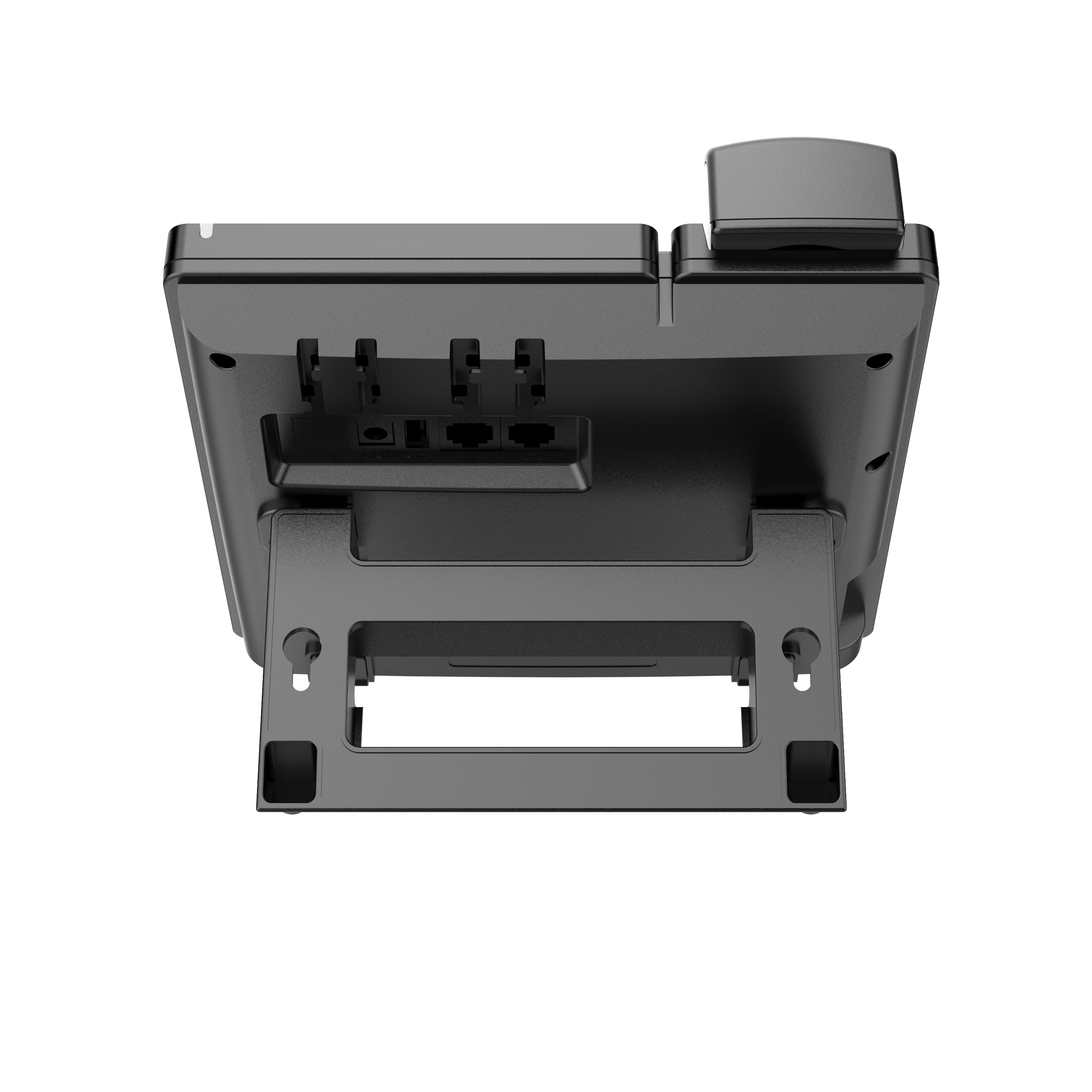

• Ethernet Ports :  2*10/100M (P20G support 1000M), Support PoE (P20P)
• Other Ports : 1 x Handset port, 1 x RJ9 Headset port – Wire-controlled RJ9 headset through HP200

Call Features

• Basic Function :  Call hold, Mute, DND, Redial, Auto answer, One-touch speed dial, Hotline, SMS, Call forward, Call waiting, Call transfer (attended/blind), Paging, Intercom, Voice
• Direct IP Call :  Supported
• Phonebook :  2000 records; phonebook search/import/export; XML/LDAP remote phonebook; black list
• Call History :  60 records; call history: all/missed/dialed/received
• Conference Call :  6-way conference, Network conference
• USB call recording : support
• DECT headset  : support

Audio Features

• HD Voice :  HD handset, HD speaker
• Audio Codec : G.722, Opus, AMR-WB(Optional), G.711WB(Optional), G.711(A/u), iLBC, G.729A/B, G.723, G.723.1, G.726, AMR-NB(Optional)
• DTMF : In-band, RFC 2833, SIP info
• Other Features : Automatic Noise Suppression, AEC, VAD, CNG, PLC, AGC, AJB

Network and Safety

SIP Related Features :

• SIP v1 (RFC2543), v2 (RFC3261), NAT Traversal by STUN
• SIP link mode: Proxy mode and peer-to-peer SIP link mode
• Call server redundancy supported

Network Features :

• Static IP and DHCP, IPv4 /IPv6, Dual stack IPv4/IPv6, PPPoE, ARP/RARP, DNS A/DNSSRV/DNSNAPTR
• LLDP/CDP/DHCP VLAN; IEEE802.1X; OpenVPN; DSCP, 802.1p QoS; SSL; SSH
• Time and Date Synchronization: SNTP, PBX, DHCP
• Transport: UDP/TCP/TLS; RTP/RTCP/SRTP

Configuration & Maintenance

Auto-provision :

• TR069 (TR104/TR106)
• FTP/TFTP/HTTP/HTTPS for Auto Provisioning
• Cloud device management: FACS
• Cloud device management: FRPS
• DHCP Option66

Configuration :

• Supports web configuration, editable configuration file
• Factory reset, reboot, telnet
• Packet capture, system log

Others

Physical Features :

• New stand, wall mountable
• AC/DC adapter, AC input: 100~240V, 50~60Hz
• DC Output: 5V, 1A (P20/P20P/P20G)
• Power consumption (PSU): 1.6~3.0W
• Power consumption (PoE): 1.7~3.3W
• Relative humidity: 10%~90% (No Condensing)
  • Storage temperature: -20~ 70°C
  • Operation temperature: 0~45°C
• Dimension (W x D x H): 190mm × 188.5mm × 41mm

Package Content

Details Packing List :

• Flyingvoice P20/P20P/P20G IP Phone, Power adapter (optional for P20P/G) – Handset with handset cord, Ethernet cable, Stand
• 1 handset, 1 handle cable, 1 Ethernet cable, 1 base stand
• Quick Start Guide

Details Weight & Size :

• N.W/PCS(with handset and stand): 0.70kg/0.71kg/0.71kg, G.W/PCS: 0.99kg/0.94kg/0.94kg
• Qty/CTN: 10 PCS, G.W/CTN: 10.80kg/10.30kg/10.30kg
• Giftbox size: 270mm × 195mm × 78mm
• Carton size: 410mm × 410mm × 290mm
