Description

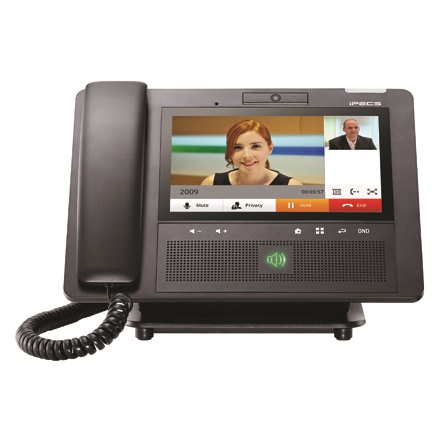

Premium Touch Screen IP Phone iPECS LIP-9070

Ericsson-LG iPECS LIP-9070 is a premium desktop video conference phone with multi touch user interface. Its easily accessible and multi functional video solution provides unlimited benefits to diverse users from remote workers, managers to executives.

Advanced business communications terminal

The LIP-9070 SIP phone is an advanced business communications terminal that employs SIP (Session Initiation Protocol) standards to control and manage real-time communications. The phone employs a Mini-tab running the Android OS as a display and user control interface. The SIP Phone application is permanently installed and provides the user with access to all the features and functions of the SIP Call server host plus the interaction with other communications aware apps with a truly intuitive user touch interface. In addition, the Mini-tab is loaded with apps for Contacts, Calendar and Video, etc. to improve your productivity and usability

Integrated UCS Client

The iPECS UCS (Unified Communications Solution) Client for LIP-9070 is an LIP-9070 application which operates in conjunction with the iPECS UCS Server, expanding and enhancing the communication services of iPECS to dramatically improve business productivity and customer responsiveness. In addition to the rich voice services available with the iPECS system, the users of iPECS UCS Client are provided with access to a wide range of video, text and collaborative services. The available services include Presence, Calling, Instant Messaging and more. Employing a simple intuitive graphical user interface, the UCS Client has access to both private and shared contacts and directory database applications that are fully integrated with the various services available.

Key Benefits

• Video communications with iPECS video clients(UCS, LIP-8050, Phontage)
• Media play, Picture viewer (from SD card, Bluetooth)

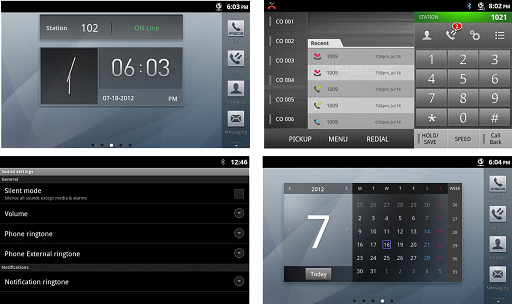

• Informative 7 inch TFT full color LCD display
• User programmable soft keys with LCD underlay
• Premium design and ergonomic touch user interface
• More extension user information handling with optional DSS

Main Features

• Redial Hold
• Call waiting
• Call park / Call pick up
• Mute
• Transfer / Forward
• DND (Do Not Disturb)
• Direct mail / Message access
• Multi line (5 private lines / SIP version only)
• Hearing-aid compatible
• MW indicator
• Auto dial (speed dial)
• On-hook dialing (hot key dialing)
• Call log (total 500)
• Caller ID
• Distinctive ring
• Presence (by BLF)
• Directory / Phonebook (1,000)
• SMS (Station only)
• Call restriction
• Intercom
• BLA / BLF
• Internal 2GB up to 16GB SDHC
• Auto update (SIP Version only)
• Remote update
• Diagnostics (Test Mode only)
• Web management
• Ring type MP3 / ogg
• *Others : Supporting iPECS system call features

Specifications

Display

• LCD / View Area : 7 inch WVGA 800×480 pixels TFT color graphic / 154.08mm(W)×85.92mm(H)
• Touch screen : Touch based easy system program menu
• Language / Unicode support : Korean, English / Yes

Interface

• Network : 2 ports 10/100/1000 Base-T (RJ-45)
• Bluetooth : Built-in
• Supported Bluetooth Headset : Plantronics M155, Plantronics M50, Plantronics M20, Plantronics Discovery 975 LG HBM-260, Samsung HM1700, Motorola HX550, Jabra EASYGO, Jabra EXTREME2
• Supported Smartphone : LG Optimus Vu, LG Optimus LTE2, Samsung Galaxy Note, Samsung Galaxy S3, Apple iPhone 4S, Pantech Vega Racer, Motorola Atrix
• Audio / Speaker Phone : Handset & Headset (RJ-11 interface) / Yes
• XML : Yes
• Storage : MMC (flash) / Micro SD card – SD (up to 2 GByte) / SDHC (up to 16 GByte)

Button

• Programmable : SIP 96-soft flexible / IPKTS 48-soft flexible
• LED : SOFT LED

Photo Camera

• 1.3M pixel CMOS with SXGA resolution (1,280X1,024) / Camera tilting

HD Video call

• QCIF, CIF, 720p

Protocol

• VoIP :  IPKTS / SIP(RFC3261)
• IP Address : Static / DHCP (IPv4)
• Layer : TCP/IP, DHCP, STUN, HTTPS, SNTP, RTCP, RTP, DNS, SVR, FTP, UDP, ARP
• Management : HTTP, FTP, LLDP-MED
• LDAP : Yes (SIP version only with extra application)

Codec

• G.711, G.722 (Wideband codec), G.729AB, H.263 (Video), H.264 (Video)

QoS

• Dynamic jitter buffering, 802.1p/Q, Layer 3 TOS, DiffServ

Security

• Standard : TLS w/ AES-128, SRTP w/ AES-128, 802.1x/EAP-MD5, 802.1x/EAPOL, 802.1x/EAPTLS(Certificate), HTTPS, ARIA
• VPN : Open VPN
• NAT : STUN only

Compatible Systems

• iPECS-LIK / CM

Integration with 3rd party applications

• Android 2.3 Ginger Bread Standard API

Power

• Local : 48V / 0.3A
• Standby / On state : 3Watt / Up to 9.0Watt
• PoE : 802.3af / Class3

Dimension

• H x W x D(mm) / Weight (Net, g) : 173 x 260 x 199 / 1,270
