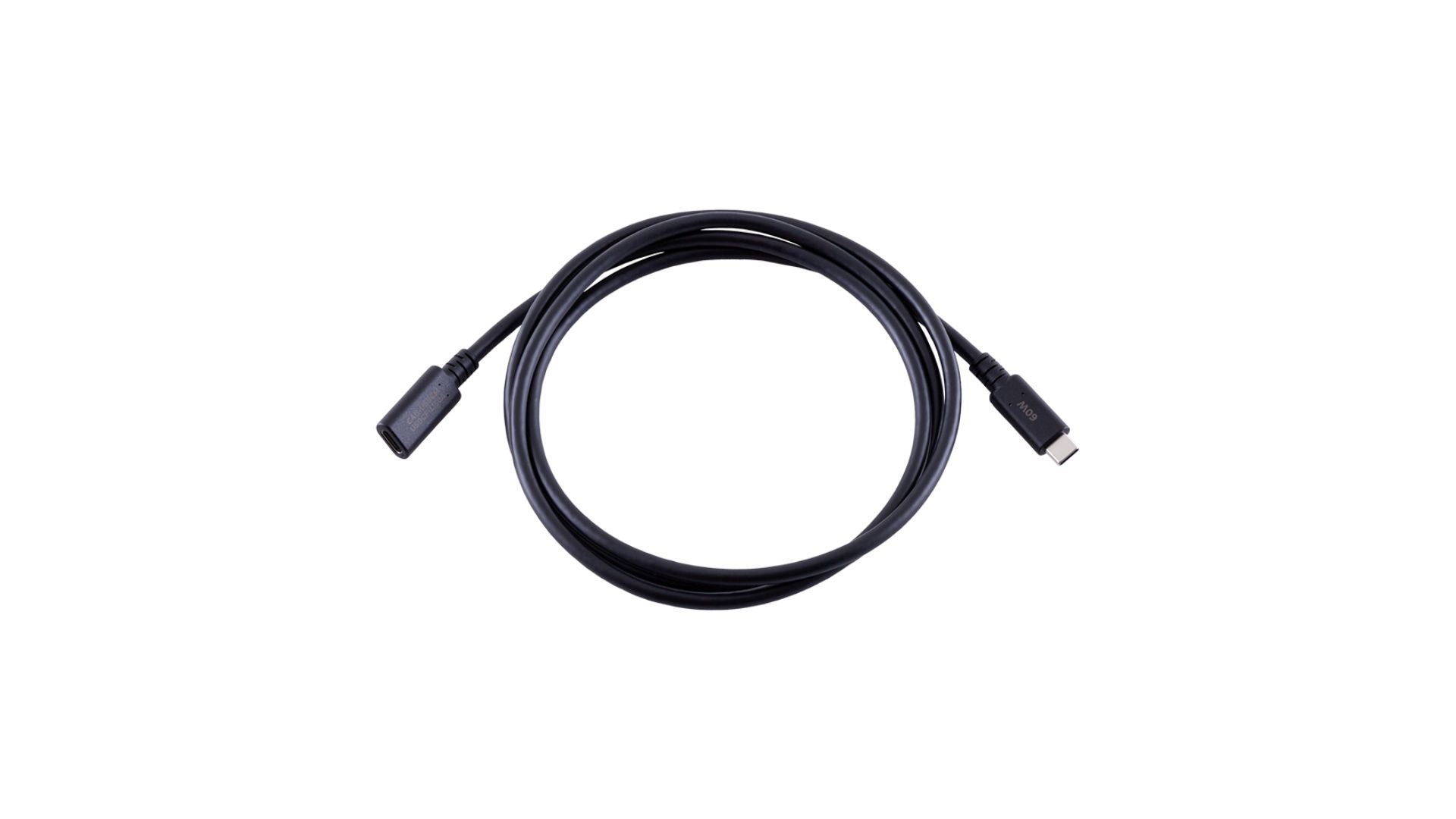

Lightware CAB-USBCM-USBCF-L150A – 1.5m (4.92ft) USB-C PORTSAVER cable for USB3.2 Gen 1×1 – 4K Video and 60W/3A Charging – compatible with CAB-USBC-AOC800E/1000E

Lightware CAB-USBCM-USBCF-L150A – 1.5m (4.92ft) USB-C PORTSAVER cable for USB3.2 Gen 1×1 – 4K Video and 60W/3A Charging – compatible with CAB-USBC-AOC800E/1000E

Rp 1.098.900

  • Protects premium AOC cables (CAB-USBCAOC800E / CAB-USBC-AOC1000E) from mechanical stress at connection points
  • Affordable and easy to replace in case of damage or wear
  • Usable on either host or device side to reduce port fatigue (one side at a time)
  • Supports USB 3.2 Gen 1×1 data, 4K60 video, and up to 60W/3A charging
  • Passive copper design with zero added latency or complexity
  • Flexible, compact build ideal for mobile or space-constrained setups
  • Helps extend device and cable lifespan by minimizing plug-unplug cycles
  • Enables connection to recessed or tight ports where AOC cable heads don’t fit
  • The gold-plated robust connectors ensure excellent signal quality
  • Designed specifically as a portsaver for CABUSBC-AOC800E and CAB-USBC-AOC1000E cables. Not intended for general-purpose USB-C extension use
SKU: KSS-CAB-USBCM-USBCF-L150A Categories: , , Tags: ,

Description

Lightware’s USB-C PortSaver Cable – your ultimate solution for protecting expensive USB-C AOC cables (CAB-USBC-AOC800E/1000) during daily use. This cable extension is designed to enhance flexibility and ease of use, allowing you to connect and disconnect devices effortlessly. Whether you’re safeguarding delicate connections or seeking greater convenience in your setup, our USB-C PortSaver Cable is your reliable companion. Embrace durability and practicality with every connection.

Hardware Specifications

Interface

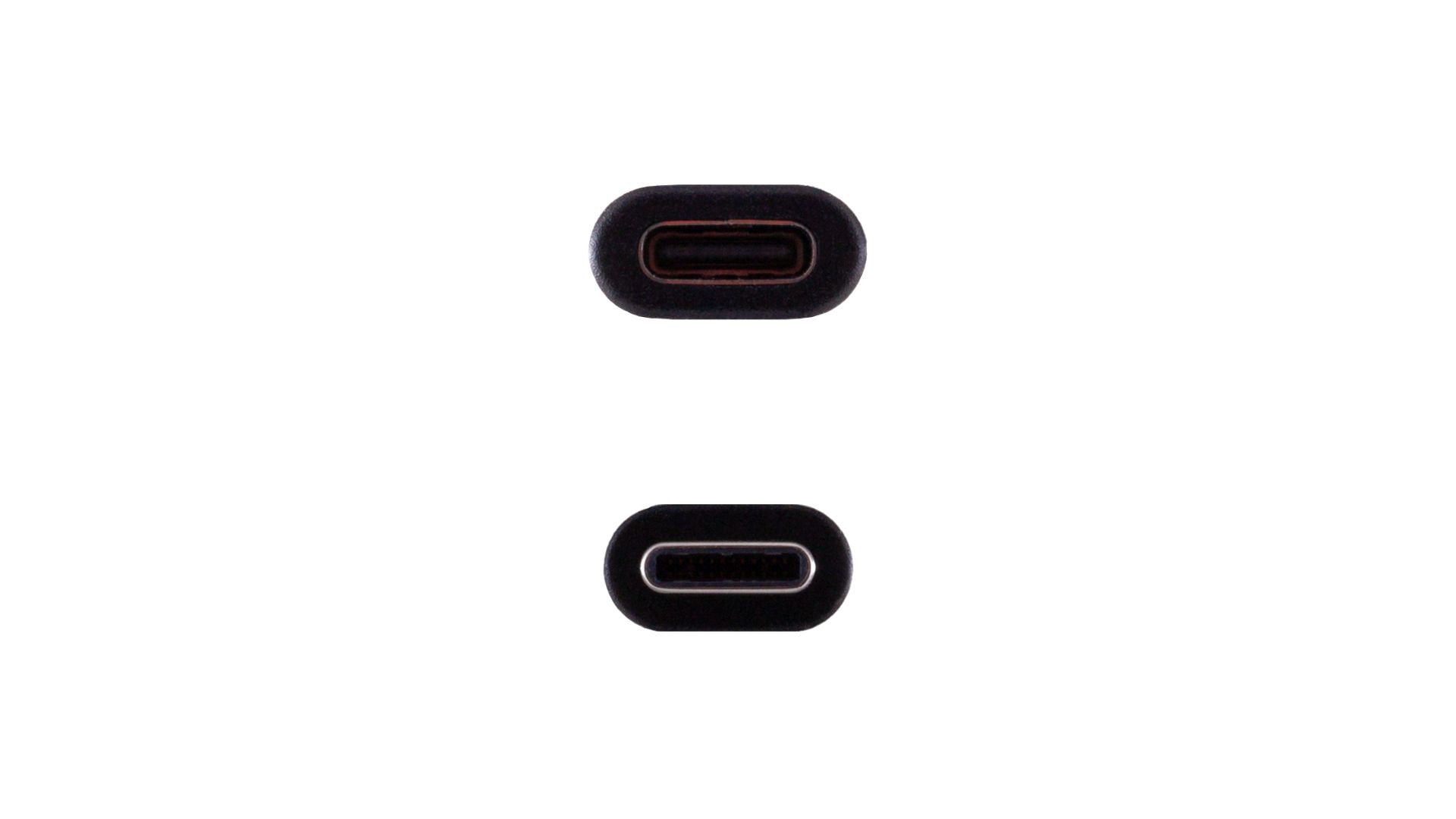

  • Connectors: 1 × USB Type-C Male, 1 × USB Type-C Female

Technical Parameters

  • Maximum Data Speed: 5 Gbps (5 Gbps/lane)
  • Data Type: USB 3.2 Gen 1×1, USB 2.0, USB 1.1
  • DisplayPort Alternate Mode: Yes, HBR3, 2-Lane
  • Video Format: Up to 4096 × 2160 @ 60Hz (RGB 4:4:4) and 5120 × 2160 @ 30Hz (RGB 4:4:4)
  • Number of USB3 Tier: 0
  • Number of USB2 Tier: 0
  • Rated Voltage: 20 V
  • Rated Current: 3 A
  • Operating Temperature: -10°C to +60°C
  • Flammability: VW-1

Physical Parameters

  • Length: 1.5 m
  • Cable Diameter: 5.0 mm
  • Jacket Material: PVC
  • Wire Material: Copper, 31 AWG
  • Mold Material: PVC
  • Pin Coating: Gold-plated
  • Bending Radius: 20.0 mm
  • Pulling Force: 4 kg
  • Compliance: RoHS, REACH
  • Color: Black

Notes

  • On some hosts, USB 2.0 data may not work unless the connector at the extension point is flipped (reversed orientation).

Additional information

Weight 1 kg
Dimensions 20 x 20 x 5 cm
Brand

Cable Type

USB-C to USB-C
Data Transfer (Speed)

5GBPs
Cable Length (m / ft)

1.5m
