Description

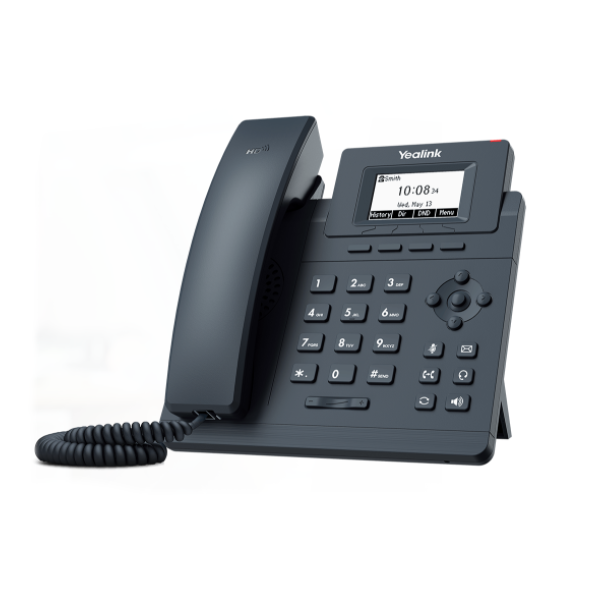

Entry-level IP Phone with 1 Line
A classic IP phone for small business users, the SIP-T30 delivers a fashionable and user-friendly dialing experience. It has a generously large 132×64-pixel graphical LCD that guarantees an easier access to much more visual information at a glance. Dual 10/100 Mbps network ports makes SIP-T30 an ideal choice for extended network use. The SIP-T30 offers support for single VoIP account and includes 5-way local conferencing. It includes EHS35 support for Yealink wireless headset plus adjustable multi-angle stand support and has been designed very specifically for efficient work
Key Features and Benefits
Stronger Performance, More Possibilities
Equipped with powerful chip, the T3 series owns a stronger computing ability and more upgraded functions, which ensures a higher productivity and smoother office experience. Due to great performance, T3 series is capable to extend more services for different business demands.
Superior HD Audio, Better Communication
The Yealink T3 series provides distraction-free communications with industry leading Smart Noise Filtering Technology, which delivers excellent sound quality without extraneous noises and allows fluent conversations.
Classic Design, Practical Details
Designed by Yealink original team, T3 series inherits the design concept of Yealink IP phone family. The advanced design including modern appearances and ergonomic details enables easier and friendly operation experience to users.
All in One Platform, Convenient Management
Proven reliability and integrations for Yealink Device Management Platform, installed the unified firmware, T3 series is simple to deploy and manage, which allows a significant reduction in the operation and maintenance cost.
SPECIFICATIONS
Audio Features
• HD voice: HD handset, HD speaker
• Smart Noise Filtering
• Wideband codec: Opus, G.722
• Narrowband codec: G.711(A/μ), G.723.1, G.729, G.729A, G.726, iLBC
• DTMF: In-band, Out-of-band (RFC 2833) and SIP INFO
• Full-duplex hands-free speakerphone with AEC
• VAD, CNG, AEC, PLC, AJB, AGC
Phone Features
• 1 VoIP accounts
• Call hold, mute, DND
• One-touch speed dial, hotline
• Call forward, call waiting, call transfer
• Group listening, SMS, emergency call
• Redial, call return, auto answer
• Local 5-way conferencing
• Direct IP call without SIP proxy
• Ring tone selection/import/delete
• Set date time manually or automatically
• Dial plan
• XML Browser, action URL/URI
• Integrated screenshots
• RTCP-XR, VQ-RTCPXR
• Enhanced DSS Key
Directory
• Loal phonebook up to 1000 entries
• Black list
• XML/LDAP remote phonebook
• Smart dialing
• Phonebook search/import/export
• Call history: dialed/received/missed/forwarded
IP-PBX Features
• Anonymous call, anonymous call rejection
• Hot-desking, voice mail
• Flexible seating
• Call park, call pickup
• Executive and Assistant
• Centralized call recording
• Visual voice mail
• Call recording
Display and Indicator
• 2.3” 132×64-pixel graphical LCD
• LED for call and message waiting indication
• Intuitive user interface with icons and soft keys
• Multilingual user interface
• Caller ID with name and number
• Power saving
Feature keys
• 6 features keys: transfer, message, headset, redial, mute, hands-free speakerphone
• 5 navigation keys
• Volume control keys
Interface
• 2 x RJ45 10/100M Ethernet ports
• 1 x RJ9 (4P4C) handset port
• 1 x RJ9 (4P4C) headset port
Other Physical Features
• Color: Classic Grey
• Wall mountable
• External Yealink AC adapter AC 100~240V input and DC 5V/600mA output
• Power consumption (PSU): 2-3W
• Dimension (W*D*H*T): 185mm*189mm*162mm*50mm
• Operating humidity: 10~95%
• Operating temperature: -10~50°C (+14~122°F)
Management
• Configuration: browser/phone/auto-provision
• Auto provision via FTP/TFTP/HTTP/HTTPS for mass deploy
• Auto-provision with PnP
• Zero-sp-touch, TR-069
• Phone lock for personal privacy protection
• Reset to factory, reboot
• Package tracing export, system log
Network and Security
• SIP v1 (RFC2543), v2 (RFC3261)
• Call server redundancy supported
• NAT traversal: STUN mode
• Proxy mode and peer-to-peer SIP link mode
• IP assignment: static/DHCP
• HTTP/HTTPS web server
• Time and date synchronization using SNTP
• UDP/TCP/DNS-SRV (RFC 3263)
• QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS DSCP
• SRTP for voice
• Transport Layer Security (TLS)
• HTTPS certificate manager
• AES encryption for configuration file
• Digest authentication
• OpenVPN, IEEE802.1X
• IPv6
• LLDP/CDP/DHCP VLAN
• ICE
Package Features
• Package content:
– Yealink SIP-T30 IP phone
– Handset with handset cord
– Ethernet Cable (1.5m CAT5E UTP Cable)
– Stand
– Quick Start Guide
– Power Adapter (Optional)
• Qty/CTN: 10 PCS
• N.W/CTN: 9.42 kg
• G.W/CTN: 10.43 kg
• Giftbox size: 213 mm*210 mm*103 mm
• Carton Meas: 535 mm*443 mm*227 mm
