Description

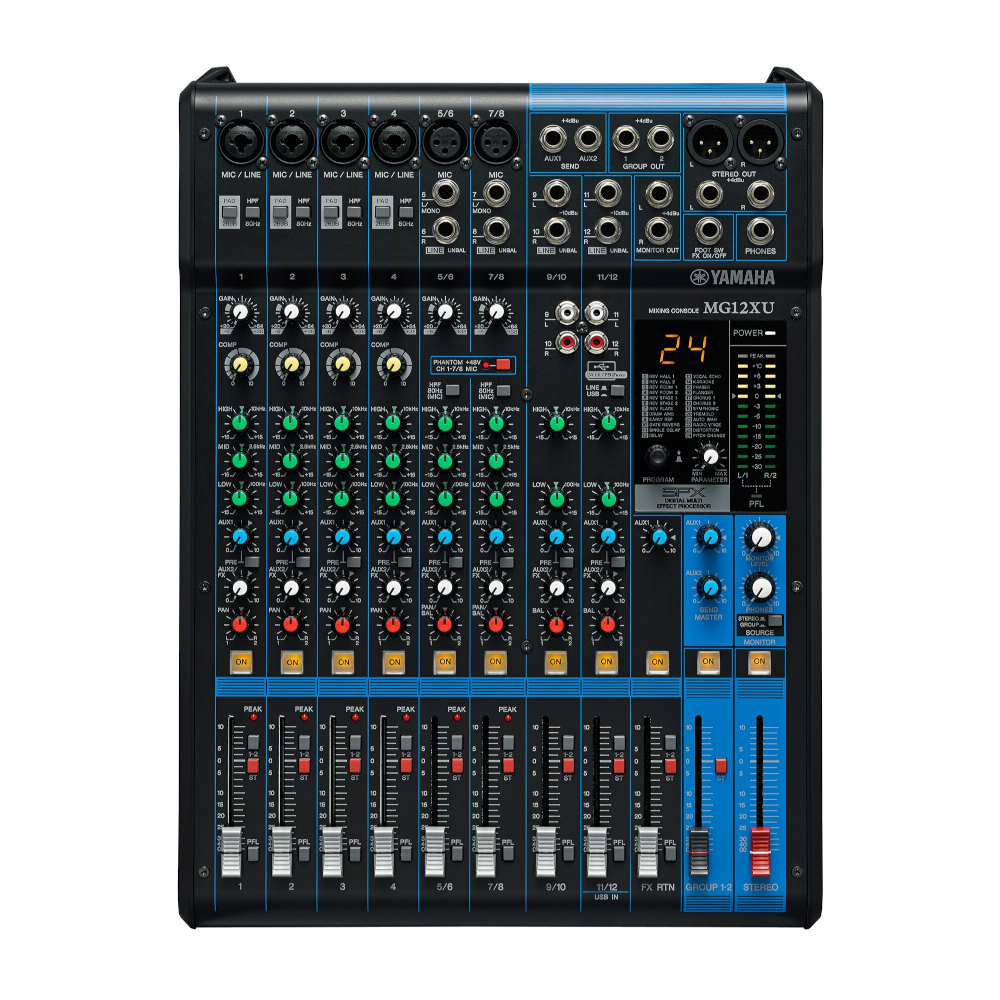

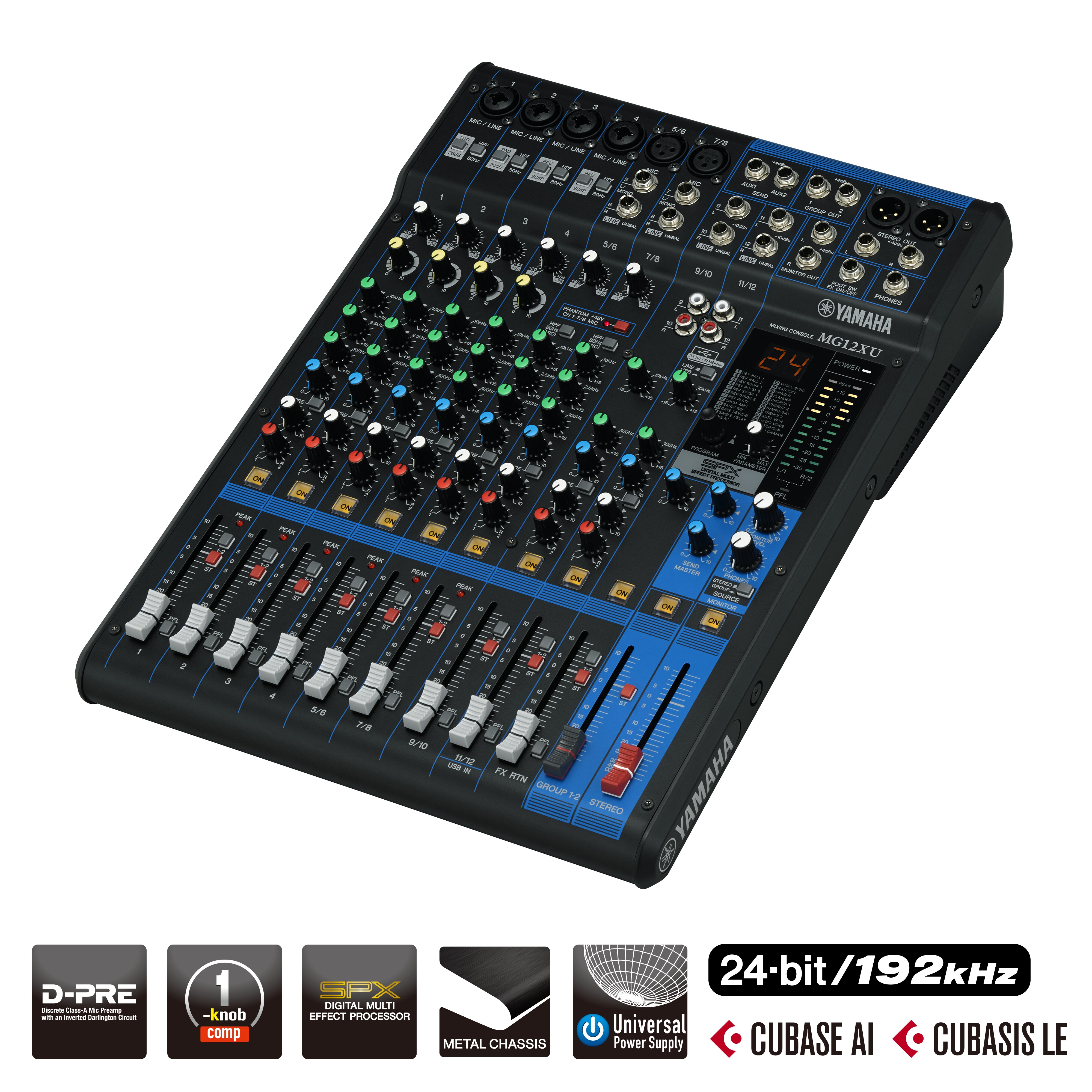

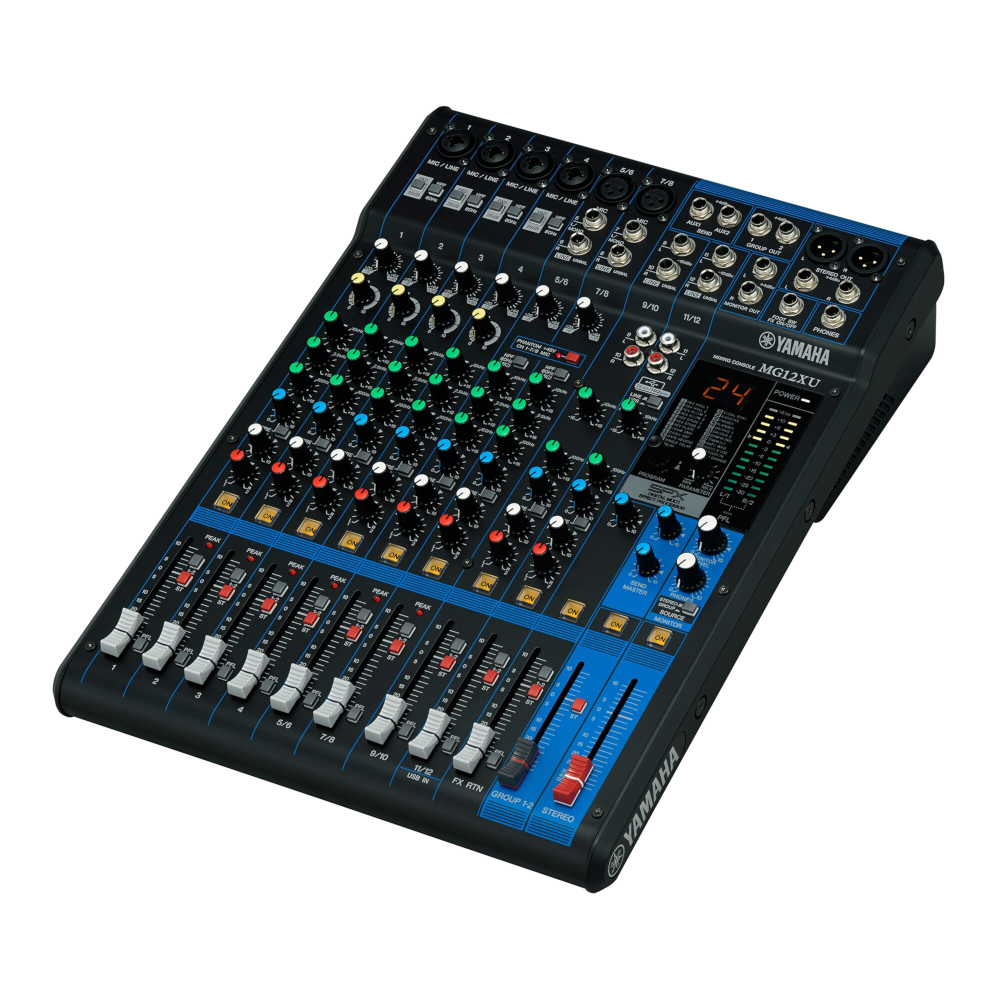

The Yamaha MG12XU is a 12-channel analog mixing console designed for live sound, PA systems, rehearsal, education, installation and computer-based audio recording.
Key Features
- 12-channel mixing console
- Maximum 6 microphone inputs and 12 line inputs
- 4 mono MIC/LINE channels
- 2 mono/stereo MIC/LINE channels
- 2 stereo LINE channels
- 2 GROUP buses + 1 Stereo bus
- 2 AUX buses including FX
- Yamaha D-PRE microphone preamps with inverted Darlington circuit
- 1-knob compressors
- SPX digital effects with 24 programs
- 24-bit/192 kHz 2-in/2-out USB audio interface
- +48 V phantom power
- XLR balanced stereo outputs
- Internal universal power supply
- Metal chassis
Applications
Suitable for live sound, PA systems, worship, education, rehearsal, installation and computer-based recording.
Technical Specifications
| Specification | Details |
|---|---|
| Channels | 12 |
| Maximum Microphone Inputs | 6 |
| Maximum Line Inputs | 12 |
| Mono MIC/LINE Channels | 4 |
| Mono/Stereo MIC/LINE Channels | 2 |
| Stereo LINE Channels | 2 |
| GROUP Buses | 2 |
| Stereo Bus | 1 |
| AUX Buses | 2 |
| Digital Effects | SPX, 24 programs |
| Microphone Preamp | Yamaha D-PRE |
| Preamp Circuit | Inverted Darlington |
| Compressor | 1-Knob Compressor |
| USB Audio | 2 In / 2 Out |
| USB Resolution | 24-bit / 192 kHz |
| Phantom Power | +48 V |
| Main Outputs | XLR Balanced |
| Power Consumption | 22 W |
| Dimensions | 308 × 118 × 422 mm |
| Net Weight | 4.2 kg |
| Chassis | Metal |
| Rack Mount | Optional RK-MG12 |
