Description

Yamaha STAGEPAS 200BTR is a compact all-in-one portable PA system that combines a 2-way bi-amp powered speaker with a 5-channel mixer, Bluetooth audio, DSP processing, and a rechargeable lithium-ion battery. It provides 180 W of dynamic amplifier power and up to 10 hours of battery operation, making it suitable for portable performances, presentations, speeches, events, and other applications where flexible sound reinforcement is required.

Key Features

• 2-way bi-amp powered speaker with integrated mixer
• 5-channel mixer with 3 mono channels and 1 stereo channel
• 180 W dynamic Class-D amplifier power
• 8-inch LF cone with 2.0-inch voice coil
• 1-inch throat compression driver with 1.4-inch voice coil
• 60 Hz–20 kHz frequency range (-10 dB)
• 125 dB SPL maximum output level at 1 m
• 90° × 90° nominal coverage
• Bluetooth 5.0 audio with A2DP support
• STAGEPAS Controller app for iOS and Android
• SPX digital reverb with 4 programs and parameter control
• Delay and chorus processing
• MODE settings for SPEECH, MUSIC, and CLUB
• Rechargeable lithium-ion battery included
• 79.92 Wh battery capacity
• Up to 10 hours maximum battery operation
• Approximately 4 hours charging time
• Monitor/Link output
• 35 mm pole mounting socket
• 30° and 60° floor monitor angles
• Compact ABS cabinet with integrated top handle

Compact All-in-One PA System

The STAGEPAS 200BTR combines a powered speaker and mixer into a single compact cabinet. Its integrated 5-channel mixer provides three mono mic/line channels and one stereo/mono line channel, allowing a variety of microphones, instruments, and playback sources to be connected without requiring a separate mixer.

180 W Class-D Amplification

The STAGEPAS 200BTR uses a Class-D amplifier with 180 W of dynamic power, consisting of 150 W for the low-frequency section and 30 W for the high-frequency section. This amplifier configuration is paired with an 8-inch LF cone and a 1-inch throat compression driver for full-range sound reproduction.

Wide and Controlled Sound Coverage

The coaxial speaker design provides a 60 Hz–20 kHz frequency range with 90° × 90° horizontal and vertical coverage. The system can produce a maximum output level of 125 dB SPL measured at 1 m, making it suitable for a variety of small and mobile sound reinforcement applications.

Battery-Powered Performance

The STAGEPAS 200BTR includes a rechargeable lithium-ion battery with a 79.92 Wh capacity. Yamaha specifies up to 10 hours of maximum operation, with approximately 8 hours of continuous operation at 1/16 power. Charging takes approximately 4 hours.

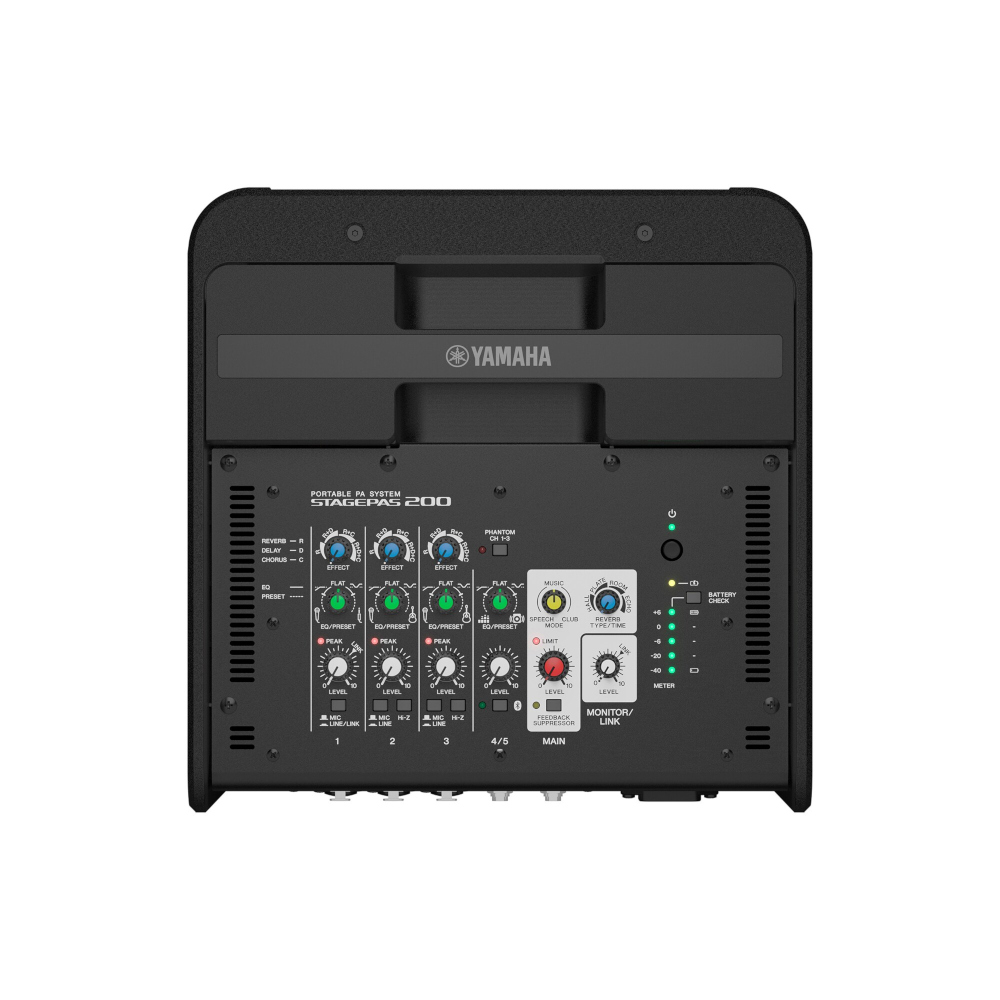

Integrated 5-Channel Mixer

The mixer provides three mono mic/line inputs and one stereo/mono line input. Hi-Z support is available on channels 2 and 3, while one-knob EQ and preset functions provide practical control for connected sources.

Bluetooth Audio and Wireless Control

Bluetooth 5.0 with A2DP support allows compatible mobile devices to stream audio wirelessly to the system. The dedicated STAGEPAS Controller application for iOS and Android provides remote control and parameter adjustment of the mixer.

Built-In DSP Effects

The STAGEPAS 200BTR incorporates Yamaha DSP processing including SPX digital reverb with four programs and parameter control, as well as delay and chorus effects. These functions provide additional flexibility for vocals, presentations, and live applications.

Flexible Placement

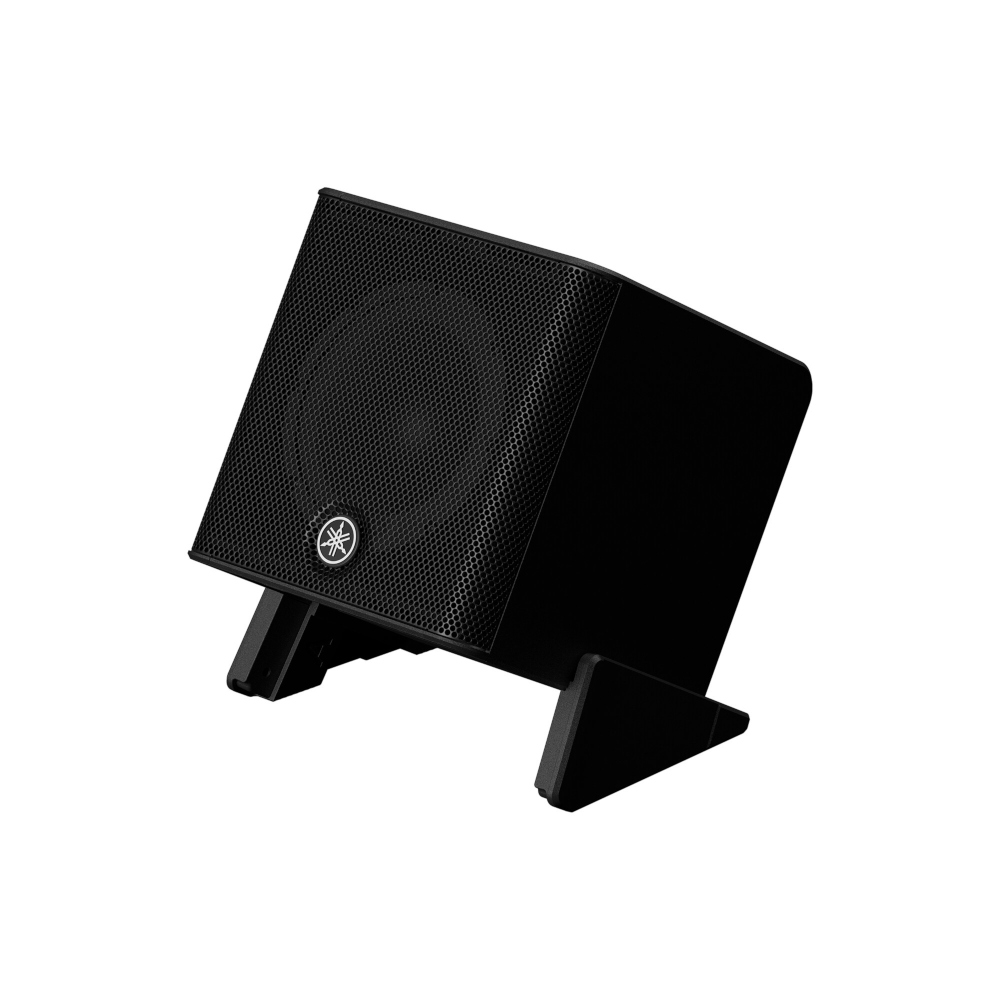

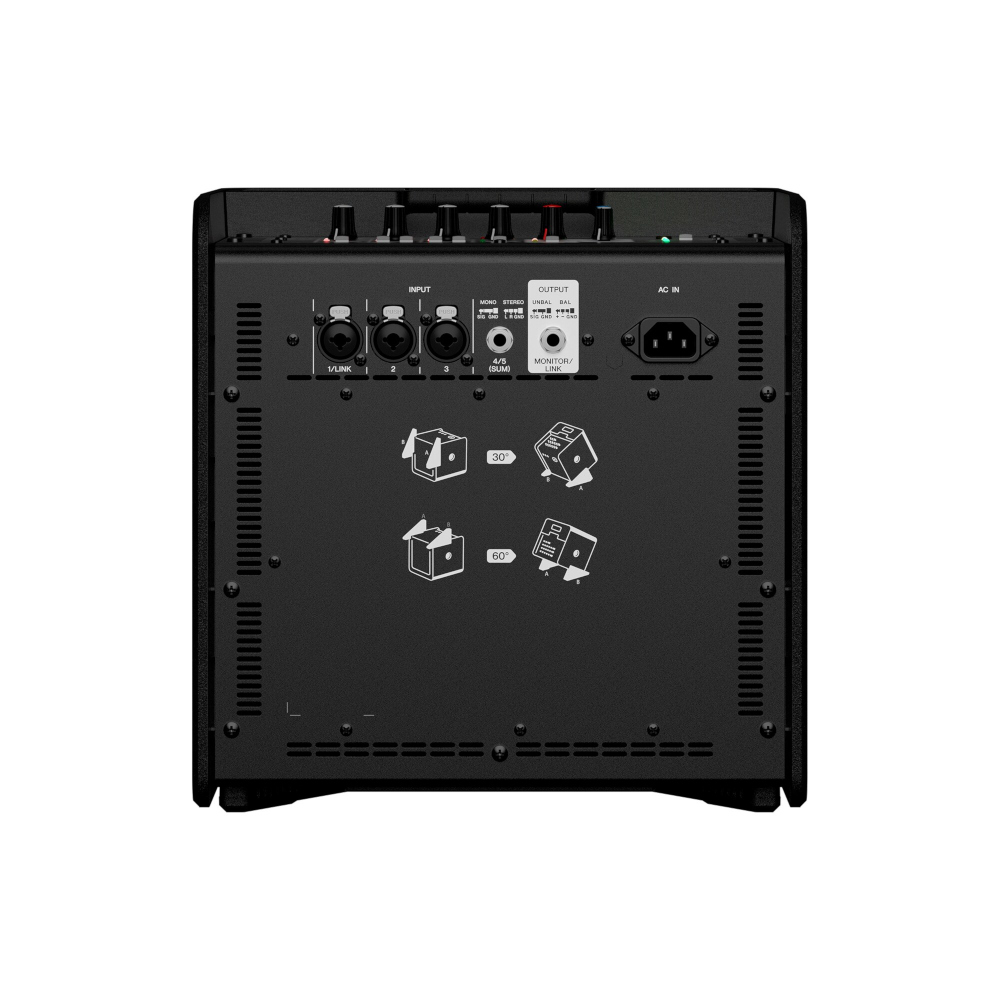

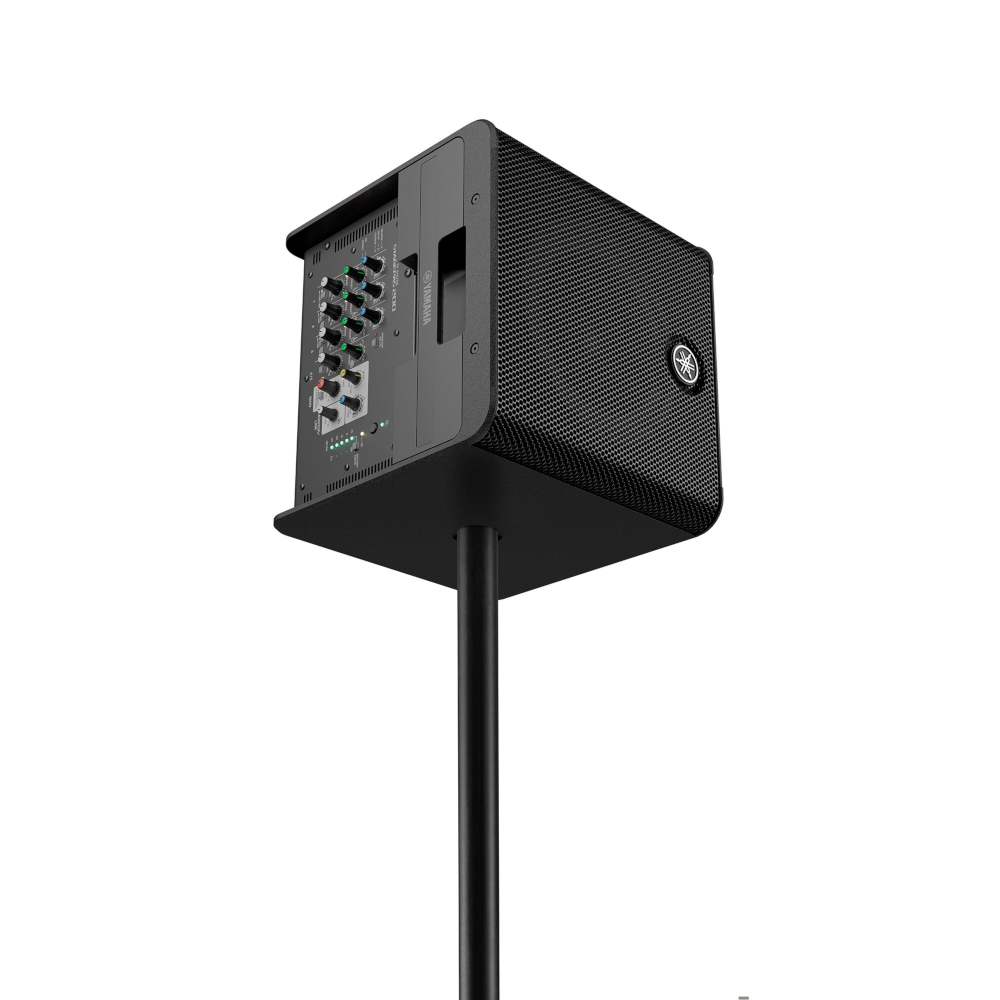

The cabinet includes a 35 mm pole mounting socket for use with a speaker stand or distance rod. It can also be positioned as a floor monitor at either a 30° or 60° angle, providing flexibility for different performance and monitoring setups.

Technical Specifications

What’s Included

• Yamaha STAGEPAS 200BTR
• Rechargeable Lithium-Ion Battery
• Power Cord
