Description
Ideal for gamers who use voice chat and for game streamers, this innovative audio mixer with USB interface gives you full command of your game sound, chat and voice levels — plus mic/vocal effects, immersive 3D surround sound and competitive-gaming focus modes — all with the premium audio performance you expect from Yamaha.

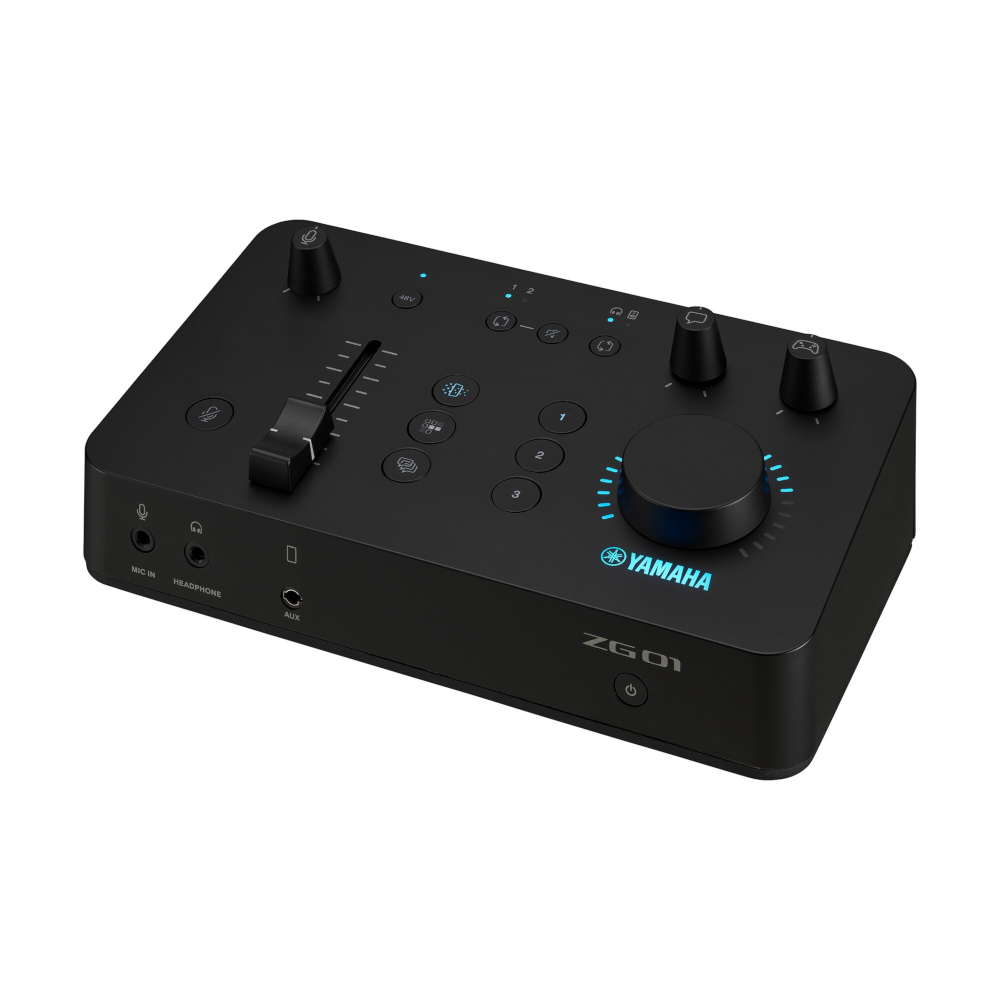

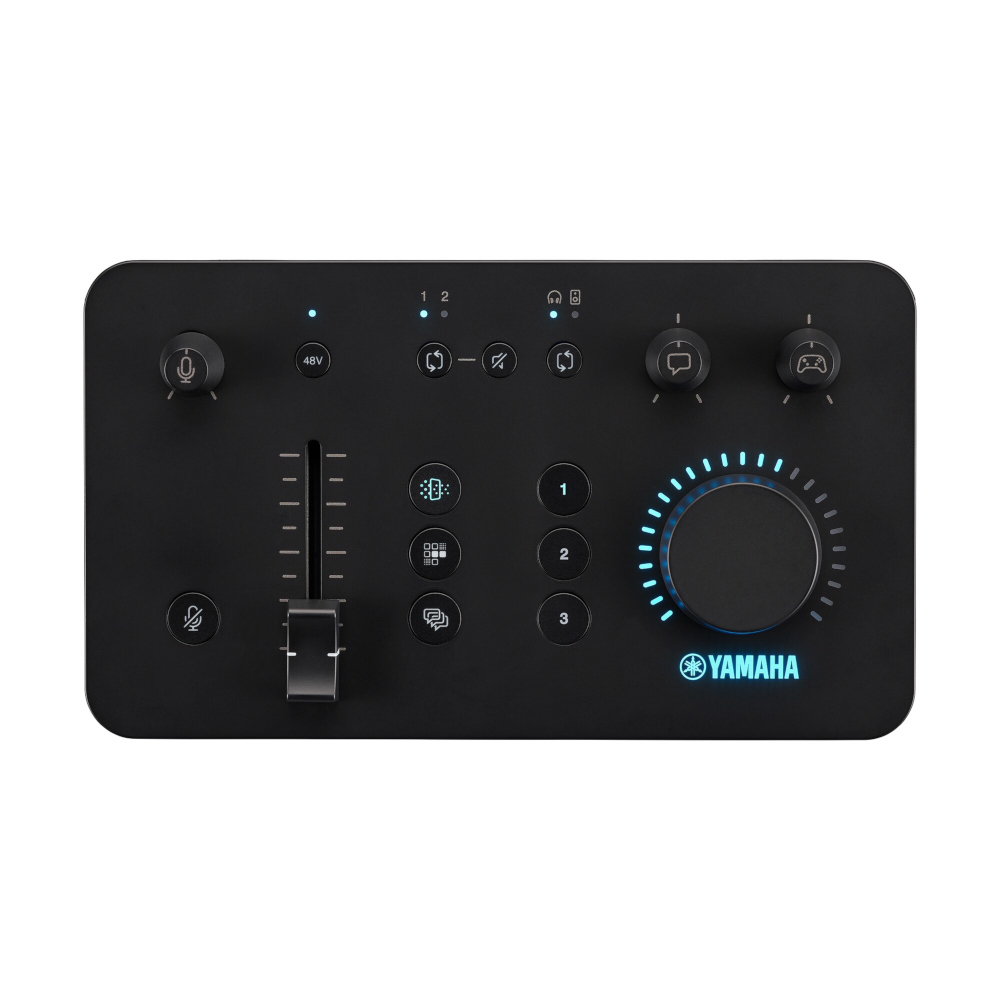

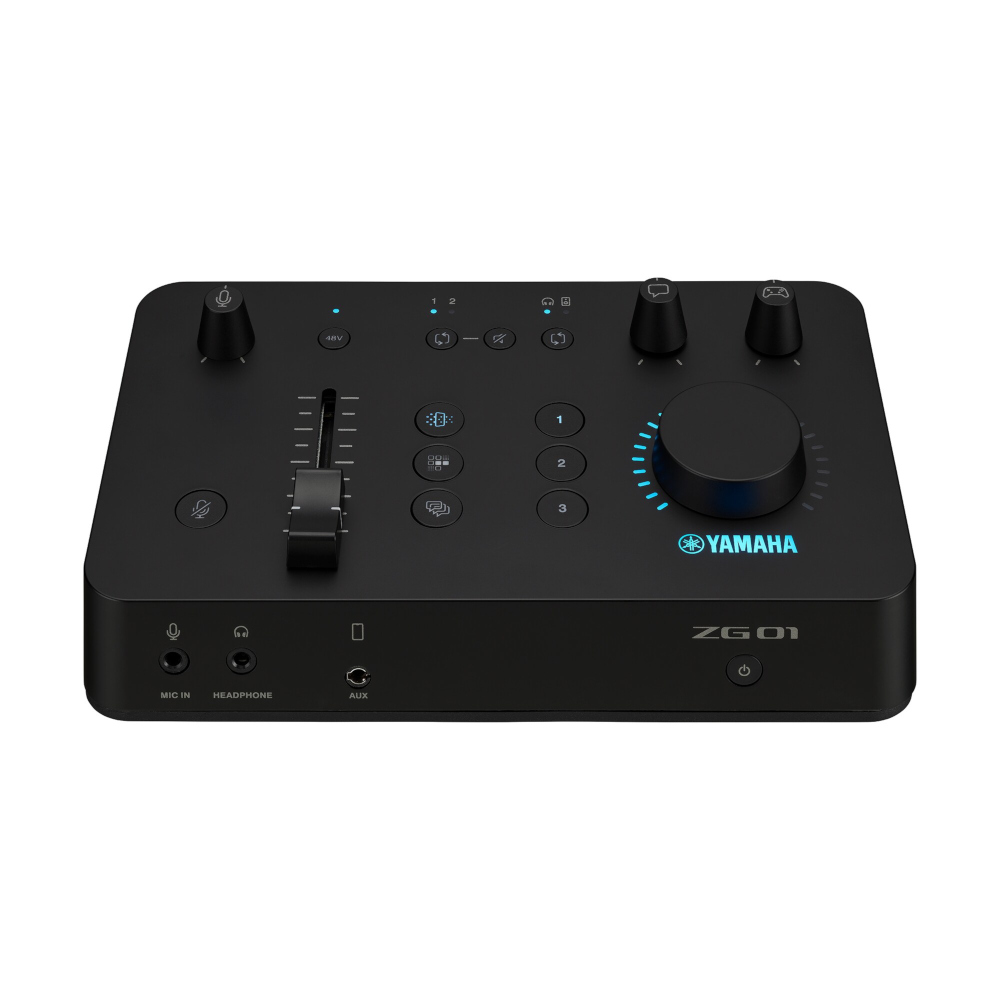

- Intuitive controls let you quickly manage sound levels and effects in real-time
- Advanced mic settings and voice effects (compression, limiter, reverb, pitch, radio voice and more) to fine-tune and personalize your voice, plus echo and censor beep buttons

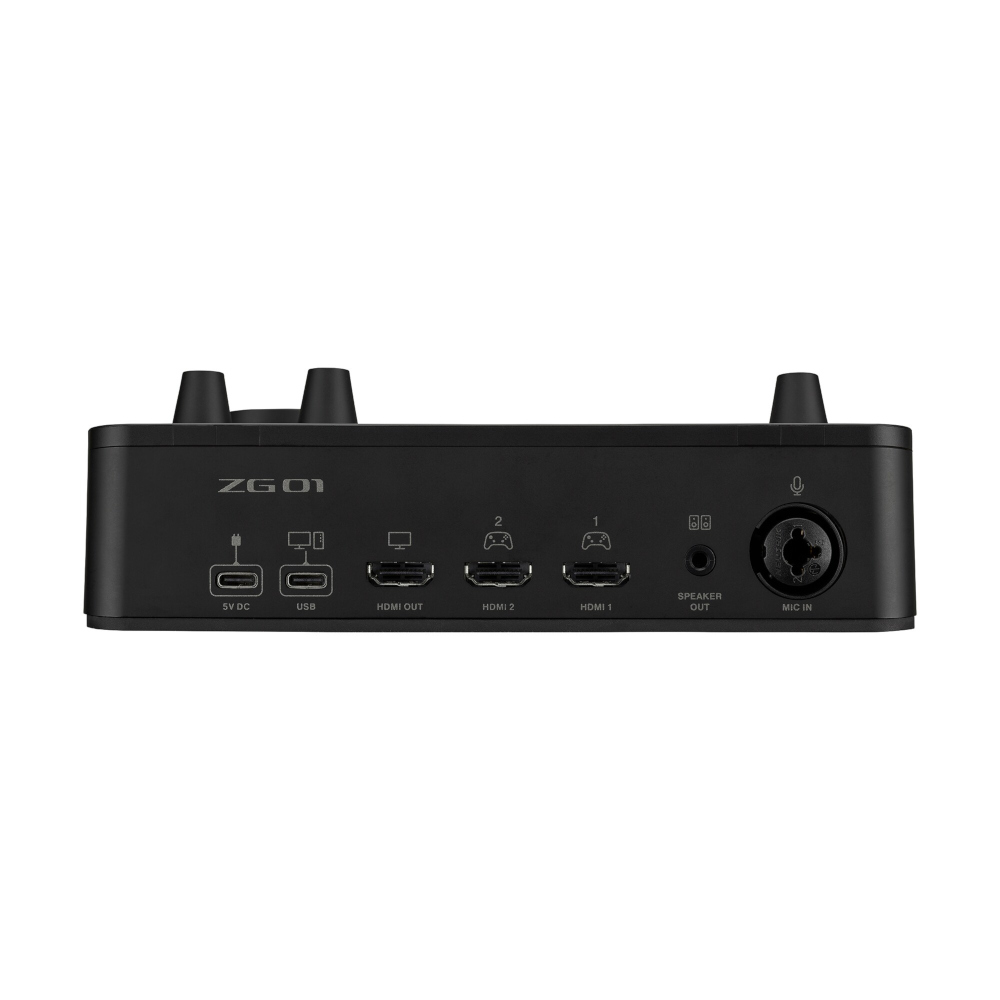

- Supports gaming headsets with a built-in mic or a dedicated mic via the rear-panel XLR / TRS combo jack; 48V phantom power for condenser mics
- 3D surround sound and unique gaming focus modes immerse you in the action and give you an edge up on your competitors
- Works with Windows/Mac computers via versatile USB-C interface; driver allows audio to be assigned to two different apps — perfect for use with Discord and OBS/Streamlabs
- Access audio from gaming consoles via a built-in 2-in/1-out HDMI switcher (up to 4K/60 video pass-through; does not capture video)
- ZG Controller app for Windows/Mac lets you go deep with settings and customizations that can be saved and quickly recalled from preset buttons on the mixer
- Compatible with the Elgato Stream Deck family of controllers
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Gaming Mixer / Game Streaming Audio Mixer |
| Microphone Input | 1 × Combo input for microphone, +48 V phantom power |
| Headset Microphone Input | 1 × 3.5 mm (1/8″) mini, plug-in power |
| Microphone / Headset Operation | Microphone and headset microphone cannot be used simultaneously |
| Smartphone Input/Output | 1 × 4-pole mini input/output (TRRS) |
| HDMI Input | 2 × HDMI inputs, switchable between HDMI 1 and HDMI 2 |
| HDMI Audio Input | 2-channel, up to 24-bit/192 kHz |
| HDMI Video | Video pass-through; no video capture function |
| HDMI Output | 1 × HDMI, audio 2-channel 24-bit/48 kHz fixed |
| USB | 2 virtual devices: Voice and Streaming |
| USB Audio | Up to 48 kHz / 24-bit, USB Type-C |
| USB Computer Interface | USB Type-C |
| PHONES Output | 1 × 3.5 mm stereo mini |
| MONITOR OUT | 1 × stereo mini |
| Smartphone Output | 1 × 4-pole mini input/output (TRRS) |
| MUTE Button | 1 |
| HDMI Input Select Button | 1 |
| Monitor Output Select Button | 1 |
| Effect Preset Buttons | 6: Voice ×3, Game ×3 |
| DSP | ZG SURROUND, FOCUS MODE/EQ, 3D VOICE CHAT, Voice Change / Game Sound Effects |
| DSP Control | ZG Controller software |
| Power Requirements | 5 V DC, 1.5 A |
| Power Consumption | Maximum 7.5 W |
| Operating Temperature | 0–40 °C |
| Dimensions (W × H × D) | 195 × 47.5 × 110 mm |
| Net Weight | 0.8 kg |
| Product Volume | 1,019.25 cm³ |
| Product Volume (L × W × H) | 19.5 × 11.0 × 4.75 cm |
What’s Included
- Yamaha ZG01 Gaming Mixer
- USB 2.0 Cable (USB-C to USB-C), 1.5 m × 1
- USB 2.0 Cable (USB-A to USB-C), 1.5 m × 1
- Start Guide
- Safety Guide
