Description

The Grandstream GRP2615 is a 10-line professional IP phone designed for mass deployment and effortless management. It features 40 multi-purpose keys (MPKs), integrated Wi-Fi, Bluetooth support, and a vibrant color LCD with swappable faceplates for easy logo customization. Supported by Grandstream’s Device Management System (GDMS), this phone provides a comprehensive solution for businesses seeking robust communication tools.

Grandstream GRP2615 Key Features

• • HD audio, handset and speakerphone with support for wide-band audio
  • 10 line keys with up to 16 SIP accounts

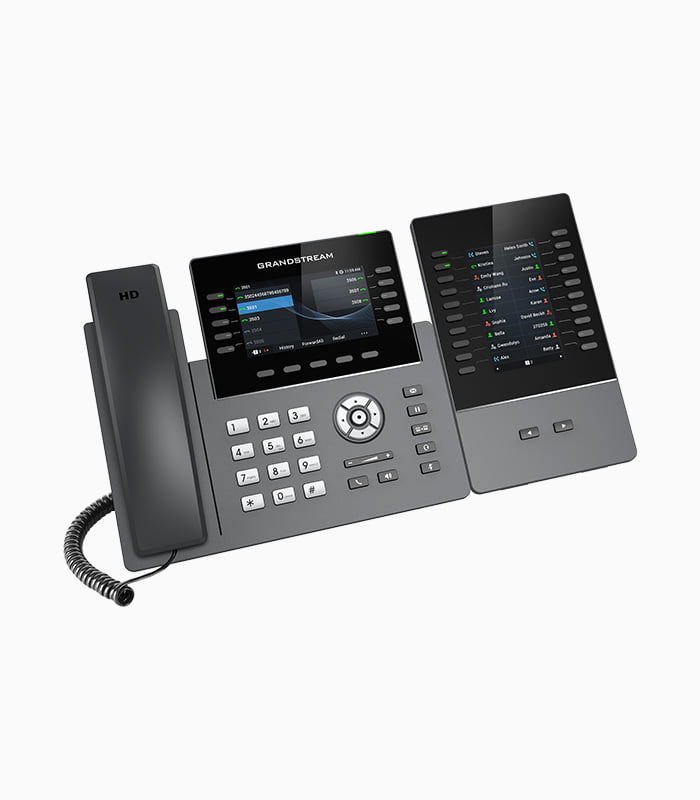

  • 40 built-in digital BLF keys; available extension module offers 40 BLF/speed dial keys per module
  • Enterprise-level protection including secure boot, dual firmware images, and encrypted data storage
  • Integrated dual-band Wi-Fi 802.11 a/b/g/n/ac (2.4Ghz & 5Ghz)
  • Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE
  • Swappable face plates to allow for easy logo customisation
  • Integrated Bluetooth

For added convenience, an extension module is available, offering 40 additional BLF/speed dial keys per module. The phone also includes enterprise-level security with secure boot, dual firmware images, and encrypted data storage. With integrated dual-band Wi-Fi, Gigabit Ethernet ports, PoE support, and Bluetooth, the GRP2615 ensures seamless connectivity and flexibility in deployment.

Grandstream GRP2615 – Technical Specifications

Protocols/Standards

• SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP, IPv6

Network Interfaces

• Dual switched auto-sensing 10/100/1000 Mbps Ethernet ports with integrated PoE

Bluetooth

• Yes, integrated

Wi-Fi

• Yes, integrated dual-band WiFi 802.11 a/b/g/n/ac (2.4Ghz & 5Ghz)

Graphic Display

• 4.3 inch (480×272) TFT color LCD

Feature Keys

• 10 line keys with up to 16 SIP accounts
• 5 XML programmable context sensitive softkeys
• 5 navigation/menu keys
• 9 dedicated function keys for: MESSAGE(with LED indicator), TRANSFER, HOLD, HEADSET, MUTE, SEND/REDIAL, SPEAKERPHONE, VOL+, VOL

Voice Codecs and Capabilities

• Support for G7.29A/B, G.711µ/a-law, G.726, G.722(wide-band),G723,iLBC, OPUS, inband and out-of-band DTMF(in audio, RFC2833, SIP INFO

Auxiliary Ports

• RJ9 headset jack (allowing EHS with Plantronics headsets)

Telephony Features

• Hold, transfer, forward, 5-way conference, call park, call pickup, shared-callappearance(SCA)/bridged-line-appearance(BLA), downloadable phonebook(XML, LDAP, up to 1000 items), call waiting, call log(up to 1000 records), XML customization of screen, off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot-desking, personalized music ringtones and music on hold, server redundancy and fail-over

HD Audio

• Yes, HD handset and speakerphone with support for wideband audio

Extension Module

• Yes (GBX20)

Base Stand

• Yes, 2 angle positions available, Wall Mountable (Wall Mount *sold separately)

QoS

• Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS

Security

• User and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, SRTP, TLS, 802.1x media access control, secure boot

Multi-language

• English, Chinese, Korean, Japanese, German, Italian, French, Spanish, Portuguese, Russian, Croatian and more

Upgrade/Provisioning

• Firmware upgrade via FTP/TFTP / HTTP / HTTPS, mass provisioning using GDMS/TR069 or AES encrypted XML configuration file

Power & Green Energy Efficiency

• Universal power adapter included: Input: 100 – 240V; Output: +12VDC, 1A Integrated Power-over-Ethernet (802.3af) Max power consumption 6.3W (power adapter) or 7.4W (PoE)

Physical

• Unit weight: 970g ; Package weight: 1480g
• Dimension: 243mm x 210mm x 82.3mm

Temperature and Humidity

• Operation: 0°C to 40°C
• Storage: -10°C to 60°C
• Humidity: 10% to 90% Non-condensing

Package Content

• GRP2615 phone
• Handset with cord
• Phone stand
• 12V power adapter
• Network cable
• Quick Installation Guide
• GPL license

Compliance

• CE: EN 55032; EN 55035; EN 61000-3-2; EN 61000-3-3; EN 62368-1; EN 301489-1; EN 301489-17; EN 300328; EN 301893; EN 62311 RCM: AS/NZS CISPR32; AS/NZS 4268; AS/NZS 62368.1; AS/CA S004. IC: ICES-003; CS-03; RSS-247; RSS-102.
